Blower Unit: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE UPPER INSTRUMENT PANEL
    1. Remove the upper instrument panel (see REMOVAL under UPPER INSTRUMENT PANEL ).
  3. REMOVE LOWER INSTRUMENT PANEL
    1. Remove the lower instrument panel (see REMOVAL under LOWER INSTRUMENT PANEL ).
  4. REMOVE AIR DUCT (See  REMOVAL  )
  5. REMOVE AIR CONDITIONING UNIT
    1. Remove the air conditioning unit (see REMOVAL ).
  6. REMOVE BLOWER ASSEMBLY
    1. Remove the 3 screws and blower.

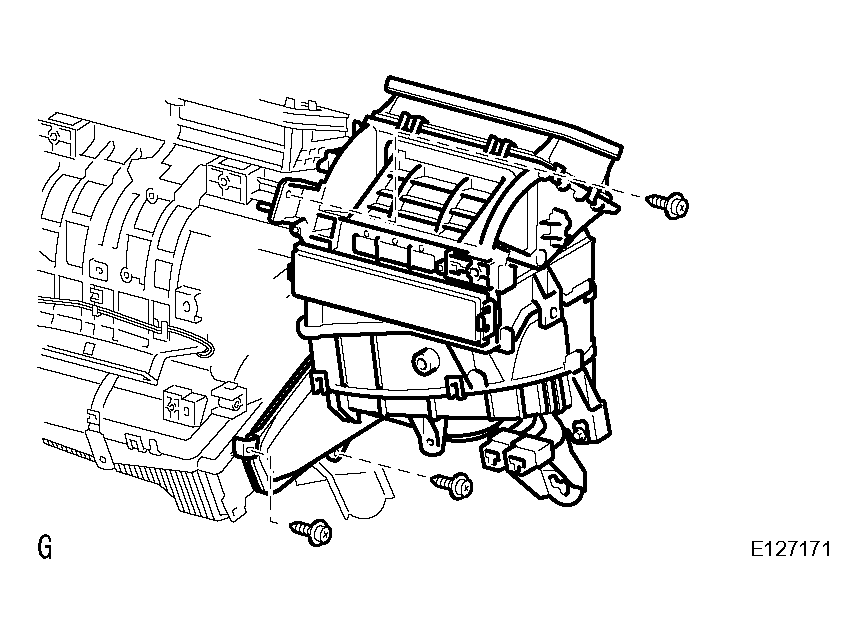

      Fig 1: Removing Blower Assembly
      G04490027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
