Blower Unit: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

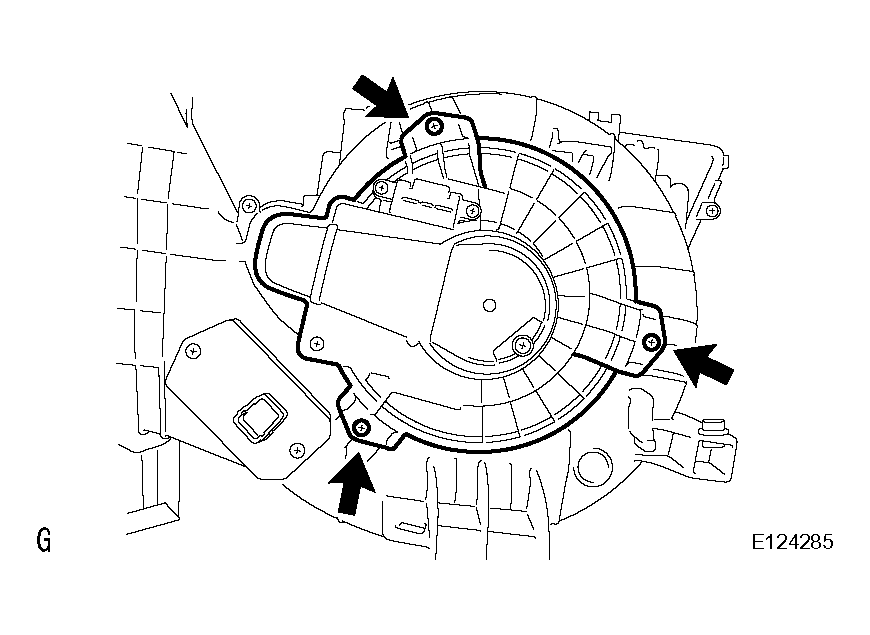

INSTALL BLOWER MOTOR
1. Install the blower motor with the 3 screws.

  Fig 1: Installing Blower Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

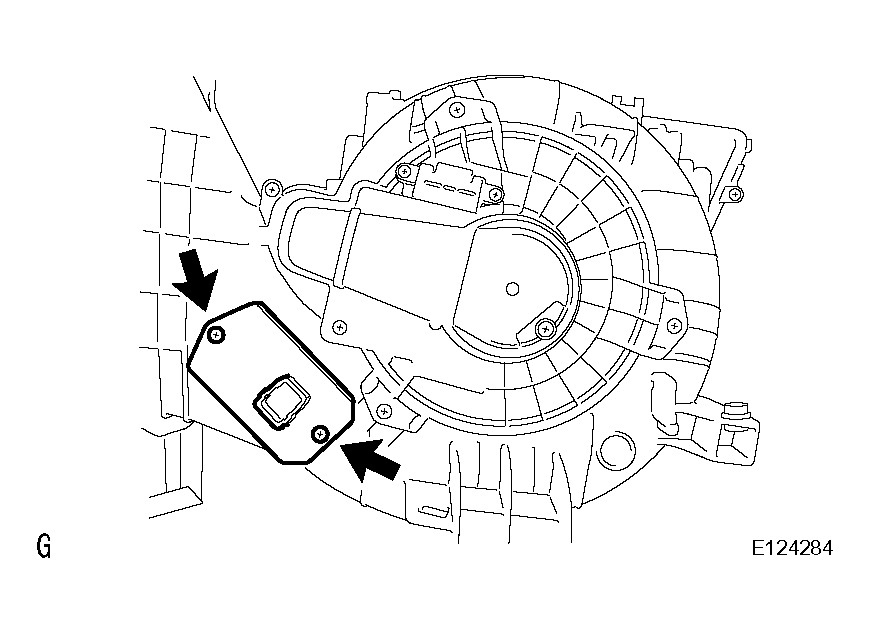

INSTALL BLOWER RESISTOR (For Manual Air Conditioning System)
1. Install the blower resistor with the 2 screws.

  Fig 2: Installing Blower Resistor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR INLET CONTROL SERVO MOTOR (For Automatic Air Conditioning System)
1. Install the air inlet servo motor with the 3 screws.

  Fig 3: Installing Air Inlet Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

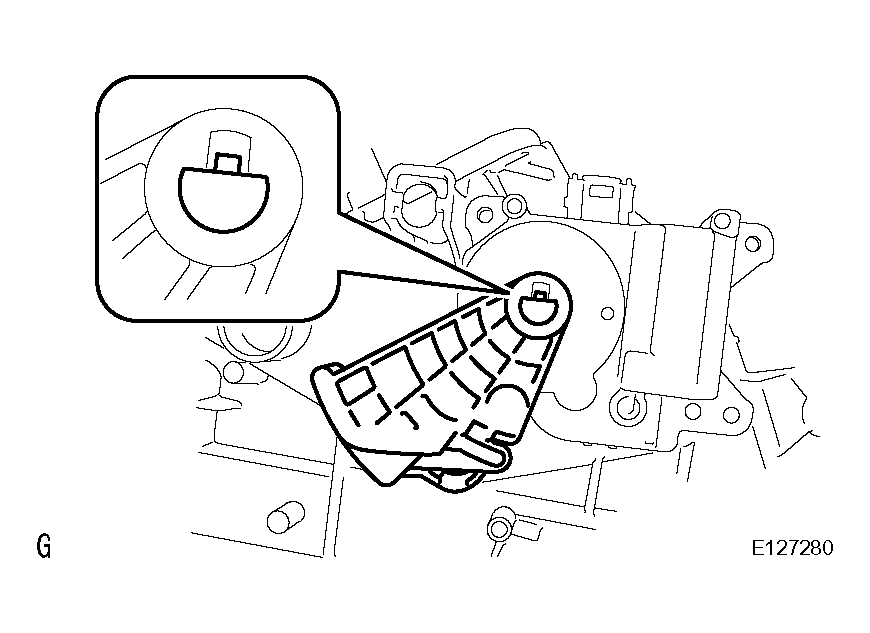

2. Attach the claw to install the lever.

  Fig 4: Installing Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

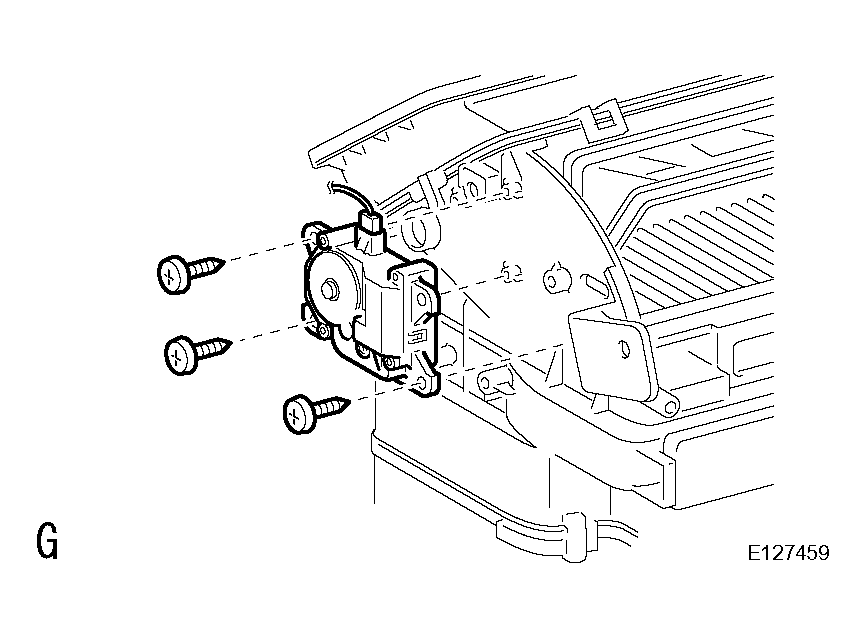

INSTALL AIR INLET CONTROL SERVO MOTOR (For Manual Air Conditioning System)
1. Install the air inlet servo motor with the 3 screws.

  Fig 5: Installing Air Inlet Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

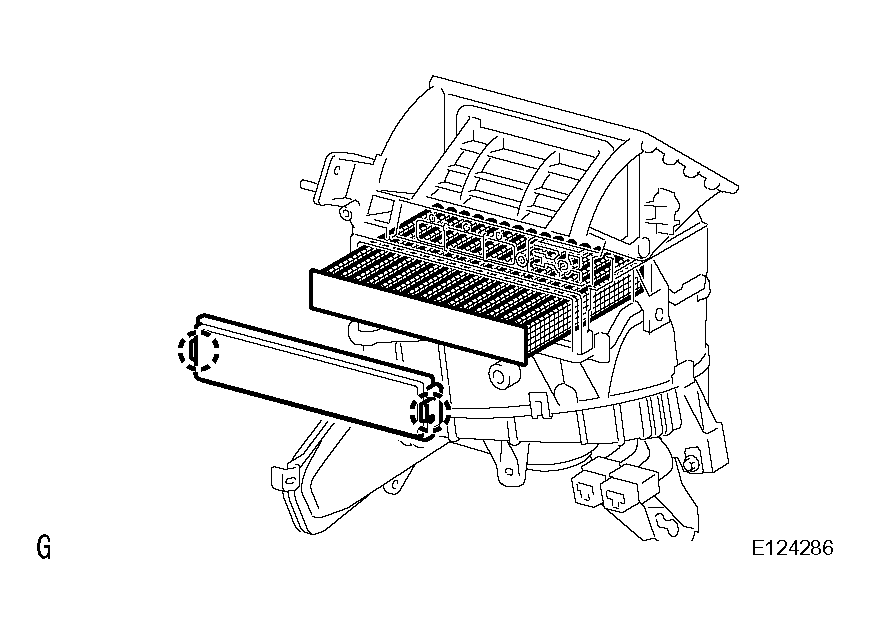

INSTALL AIR FILTER CASE
1. Install the air filter.
2. Attach the 2 claws to install the air filter case.

  Fig 6: Installing Air Filter Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER TO REGISTER DUCT ASSEMBLY
1. Attach the 7 claws to install the register duct.

  Fig 7: Installing Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
