Inspect Blower Motor (For Manual Air Conditioning System)
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the blower motor connector.

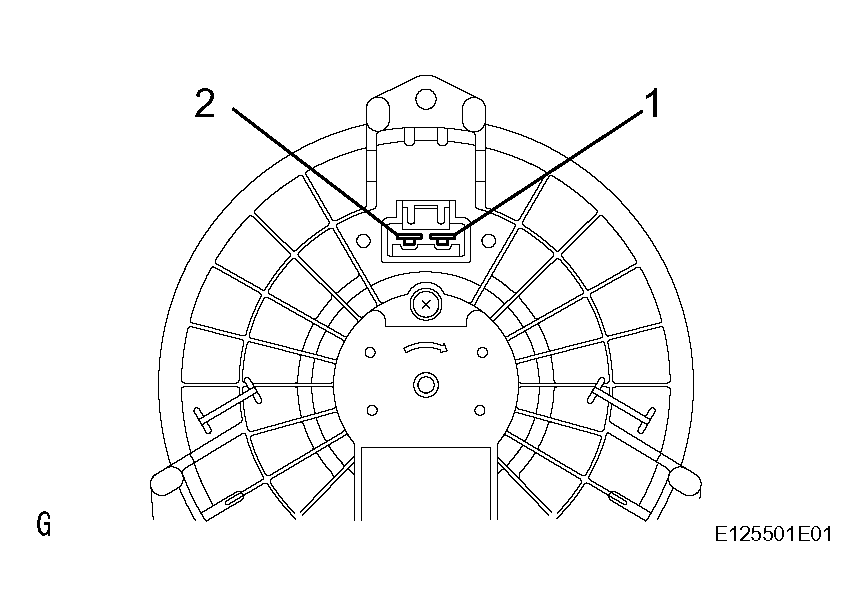

- Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1, and then check that the motor operates smoothly. If the operation is not as specified, replace the blower motor.
