Air Conditioning Unit: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

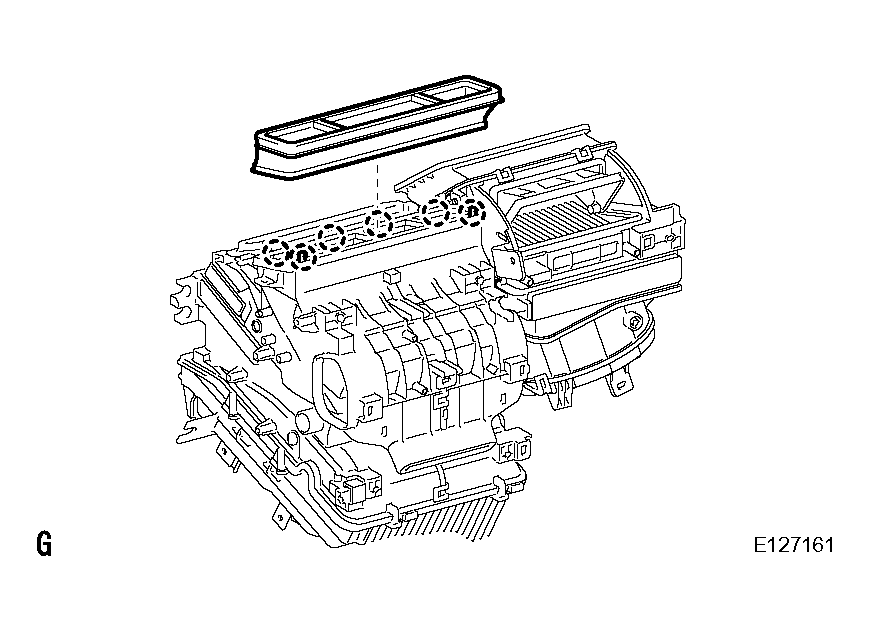

REMOVE NO. 3 HEATER TO REGISTER DUCT
1. Detach the 6 claws and remove the heater to register duct.

  Fig 1: Removing Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

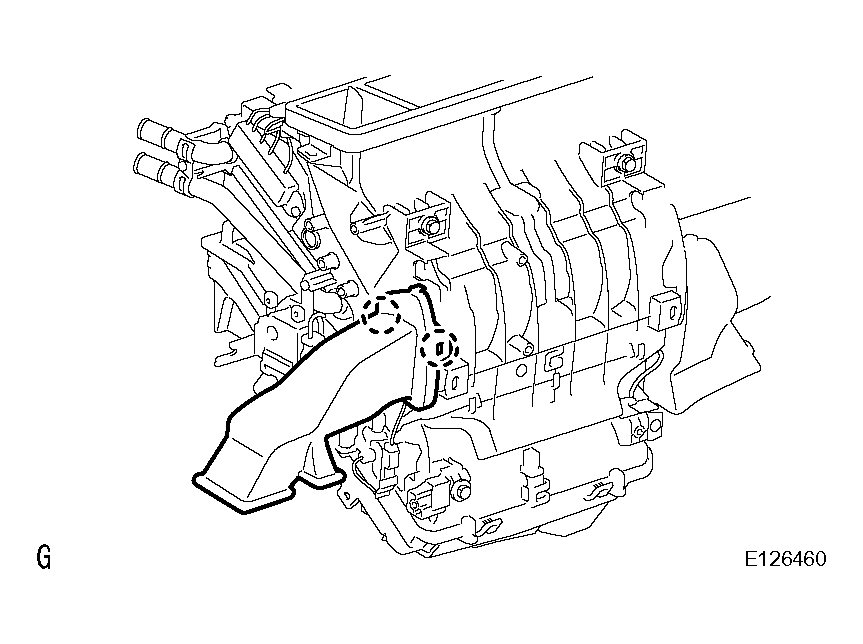

REMOVE AIR DUCT
1. Detach the 2 claws and remove the air duct.

  Fig 2: Removing Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR OUTLET CONTROL SERVO MOTOR

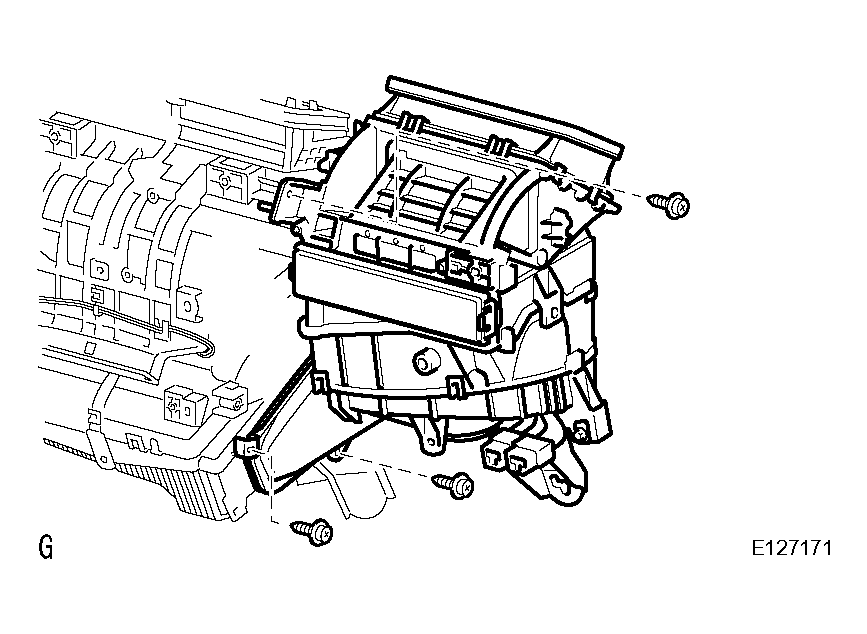

1. Remove the 3 screws.
2. Detach the evaporator case from the blower case.

  Fig 3: Detaching Evaporator Case From Blower Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 screws and disconnect the connector.
4. Remove the air outlet control servo motor.

  Fig 4: Removing Air Outlet Control Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

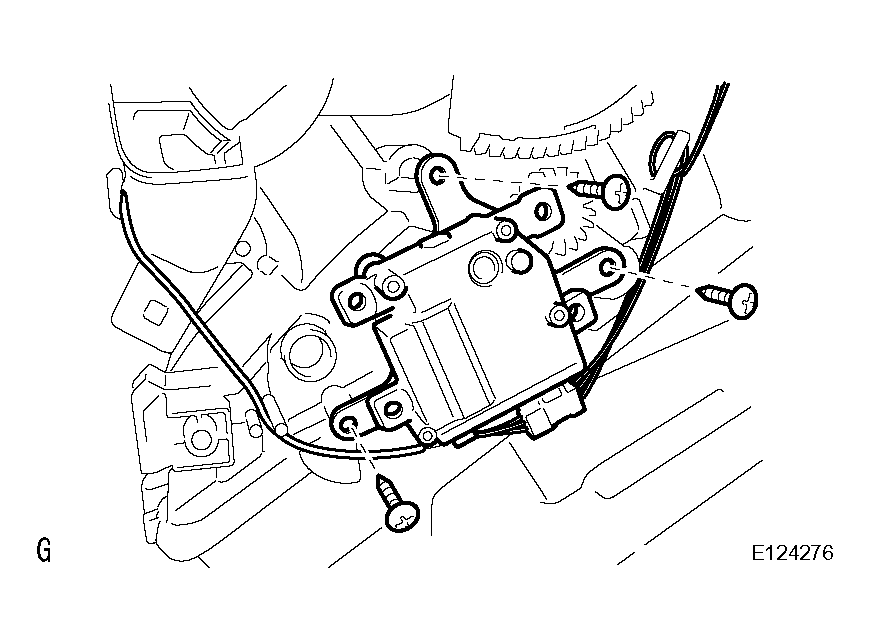

REMOVE AIR MIX CONTROL SERVO MOTOR
1. Remove the 3 screws and disconnect the connector.
2. Remove the air mix control servo motor.

  Fig 5: Removing Air Mix Control Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MODE CONTROL CABLE ASSEMBLY (For Manual Air Conditioning System)
1. Remove the 3 screws.
2. Detach the evaporator case from the blower case.

  Fig 6: Detaching Evaporator Case From Blower Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the 3 claws and remove the cable.

  Fig 7: Removing Mode Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

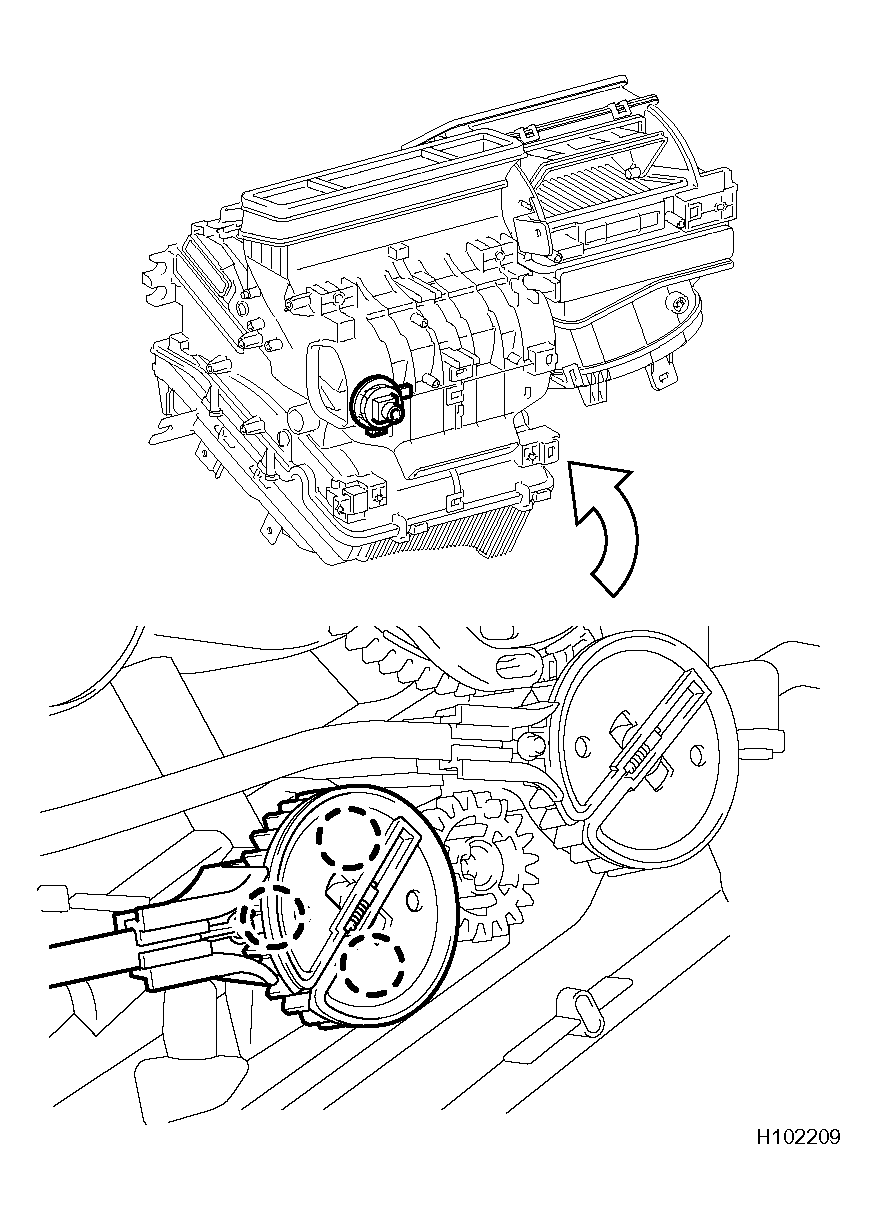

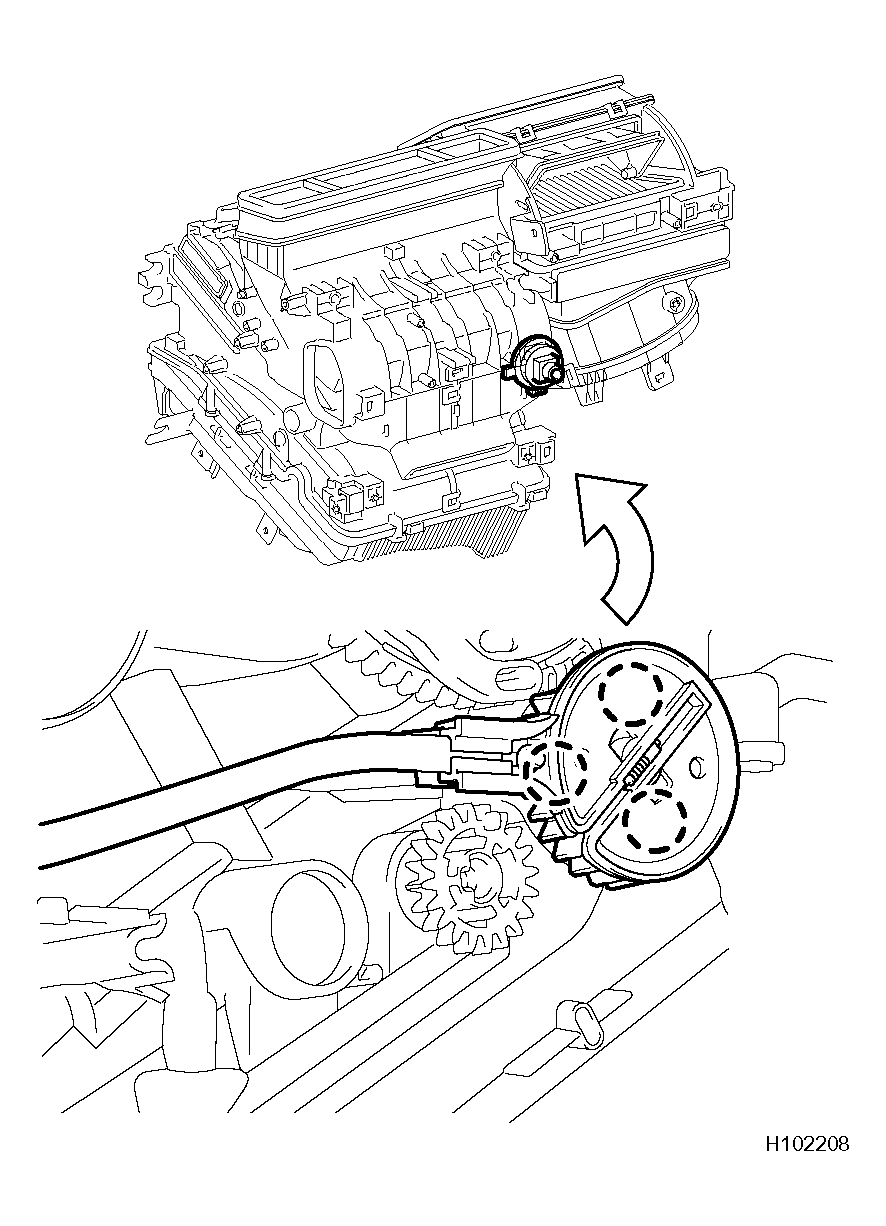

REPAIR AIRMIX DAMPER CONTROL CABLE SUBASSEMBLY (For Manual Air Conditioning System)
1. Detach the 3 claws and remove the cable.

  Fig 8: Removing Airmix Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

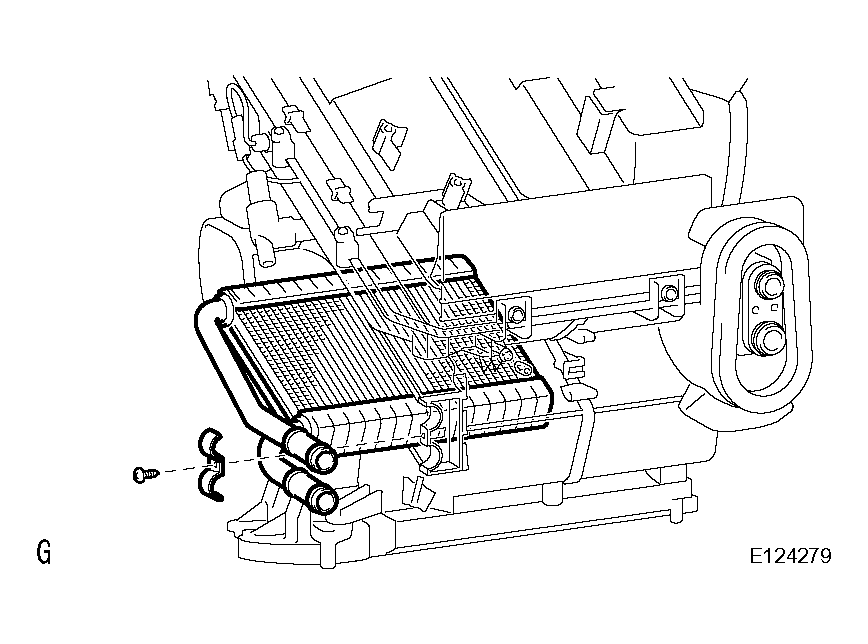

REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY
1. Detach the screw and remove the clamp.
2. Remove the heater radiator unit.

  Fig 9: Removing Heater Radiator Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

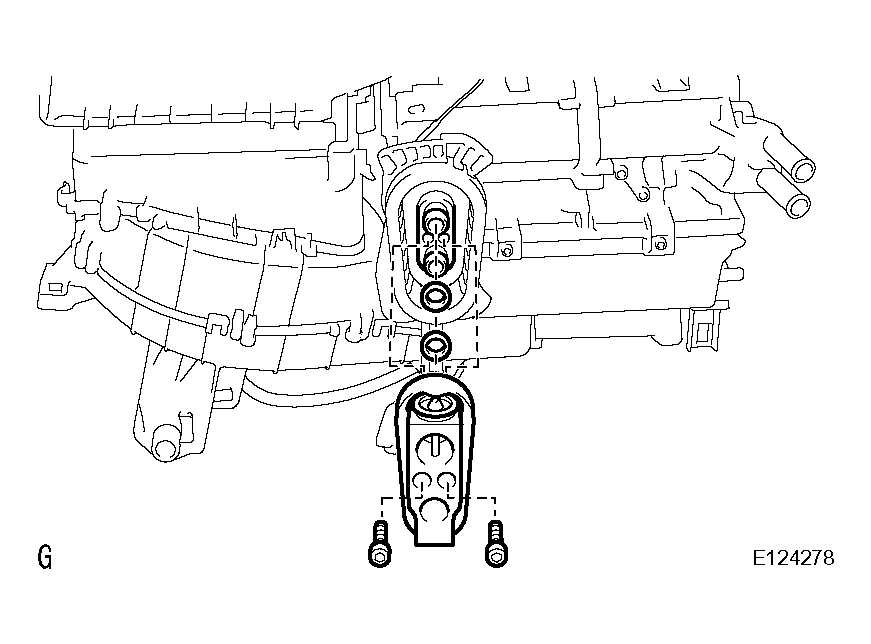

REMOVE COOLER EXPANSION VALVE
1. Using a 4 mm hexagon wrench, remove the 2 hexagon bolts.
2. Remove the cooler expansion valve and 2 O-rings from the cooler evaporator.

  Fig 10: Removing Cooler Expansion Valve And O-Rings From Cooler Evaporator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 COOLER EVAPORATOR SUBASSEMBLY

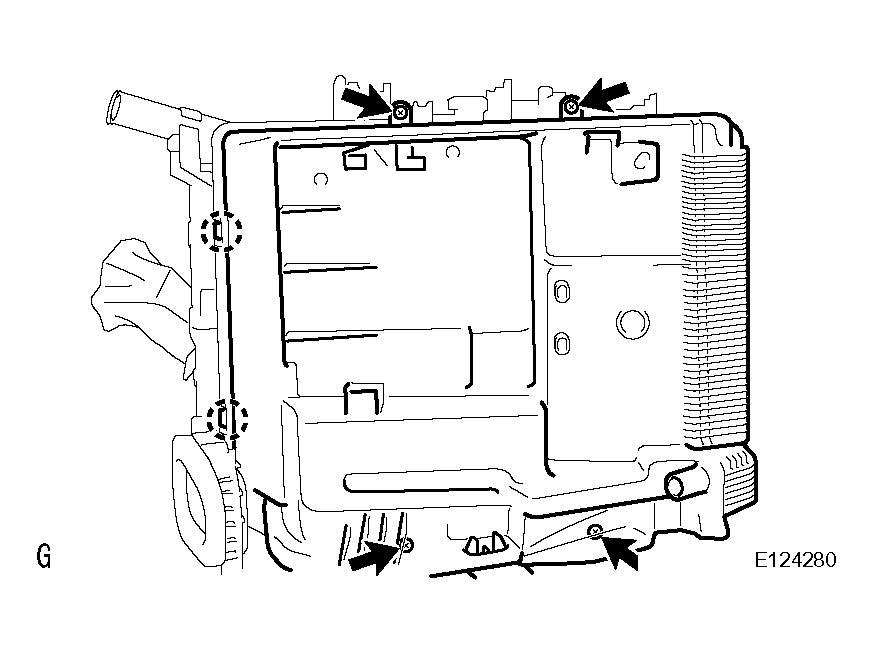

1. Remove the 4 screws.
2. Detach the 2 claws and remove the cover.

  Fig 11: Removing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

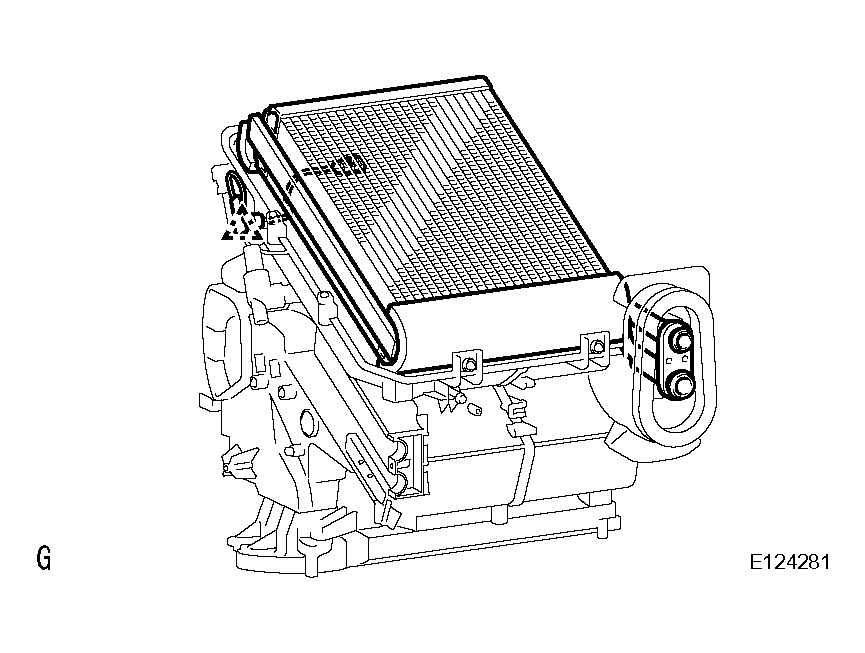

3. Detach the cooler thermistor clamp.
4. Remove the cooler thermistor and cooler evaporator from the case.

  Fig 12: Removing Cooler Thermistor And Cooler Evaporator From Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

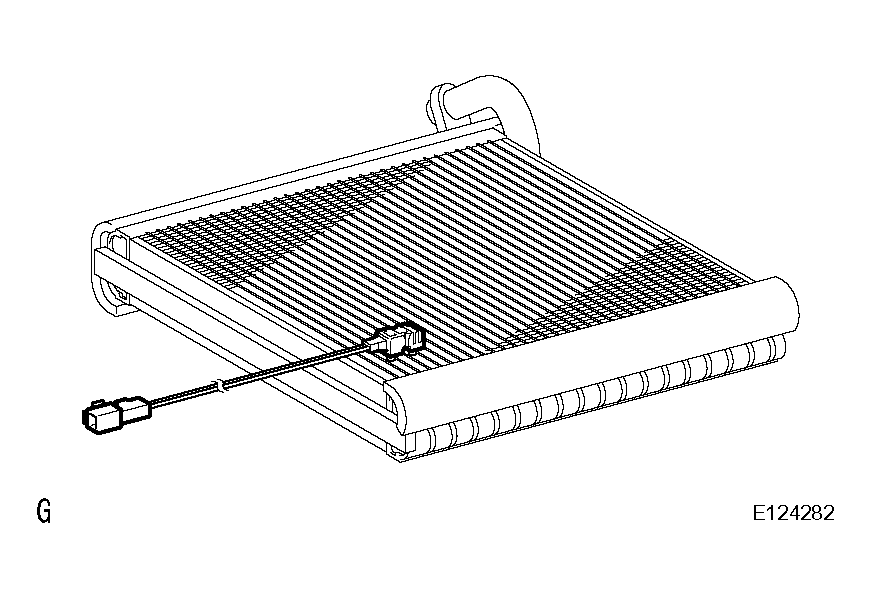

REMOVE EVAPORATOR TEMPERATURE SENSOR
1. Disconnect the cooler thermistor clamp from the cooler evaporator.

  Fig 13: Disconnecting Cooler Thermistor Clamp From Cooler Evaporator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
