System Description

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

GENERAL
1. The air conditioning system has the following features:
  - The air conditioning amplifier controls the operation of parts, such as the A/C compressor, automatically in accordance with the operating conditions of the air conditioning system.
MODE POSITION AND DAMPER OPERATION

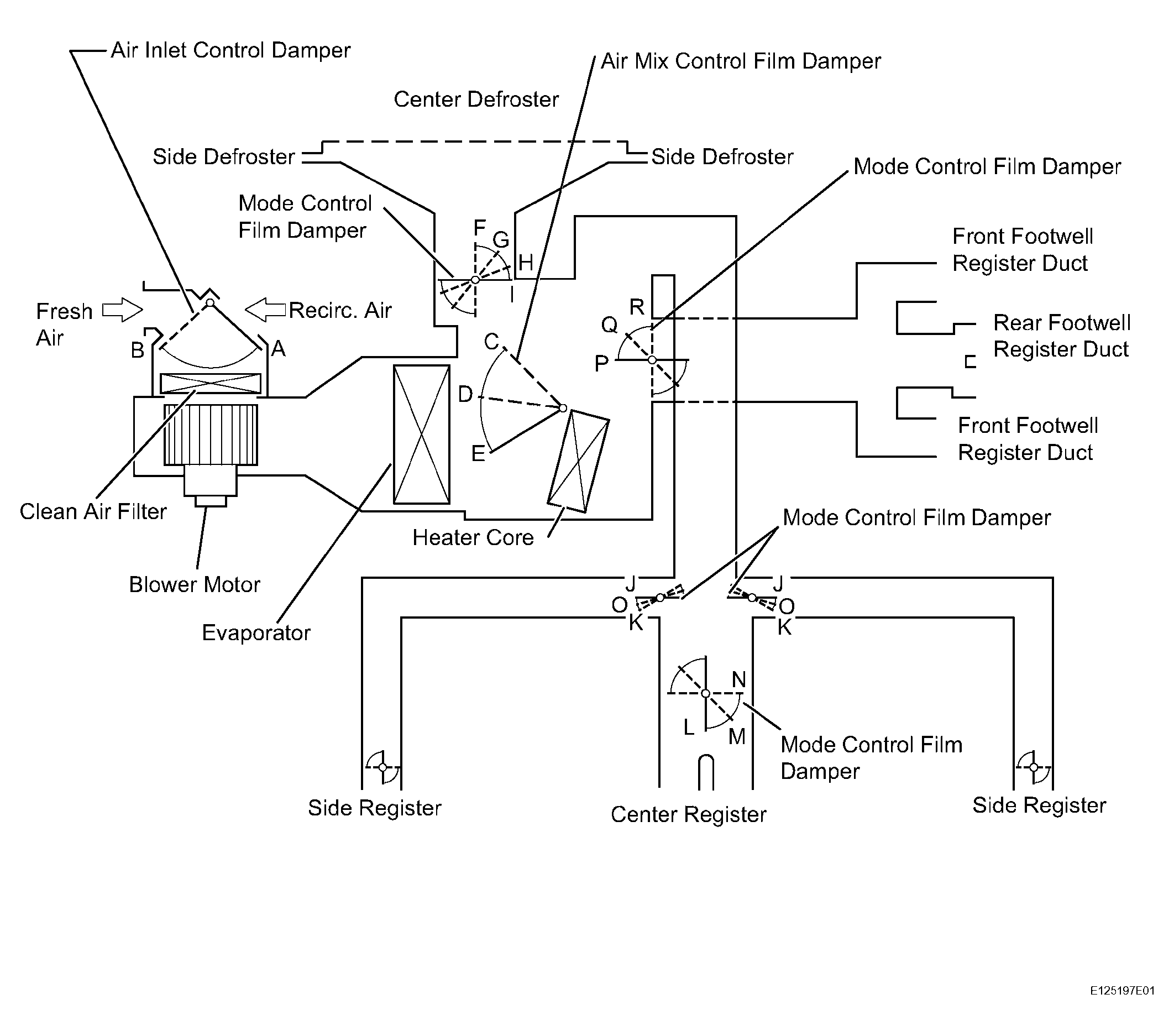

Fig 1: Mode Position And Damper Operation Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

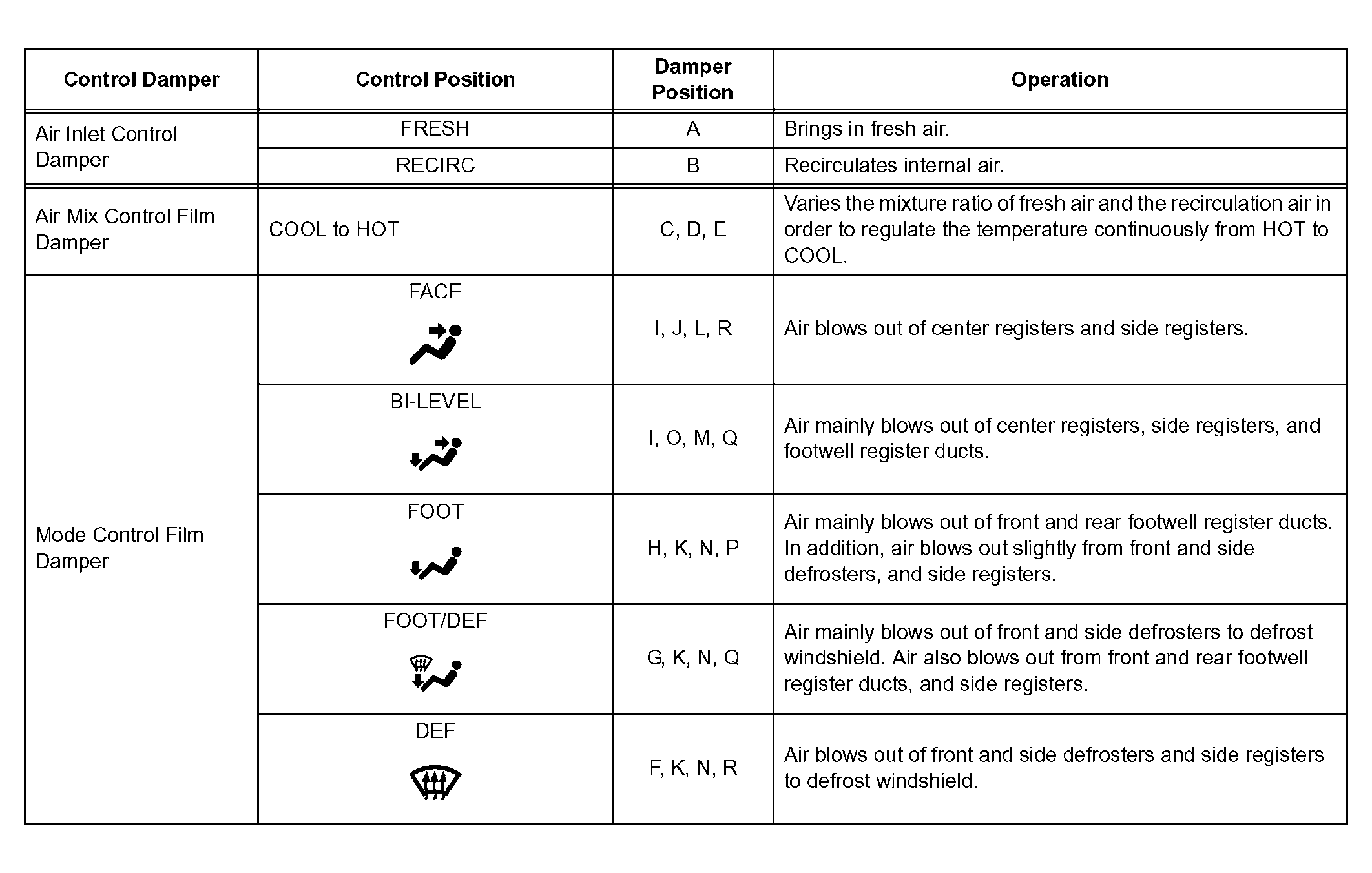

Fig 2: Mode Position And Damper Operation Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AIR OUTLET AND AIRFLOW VOLUME

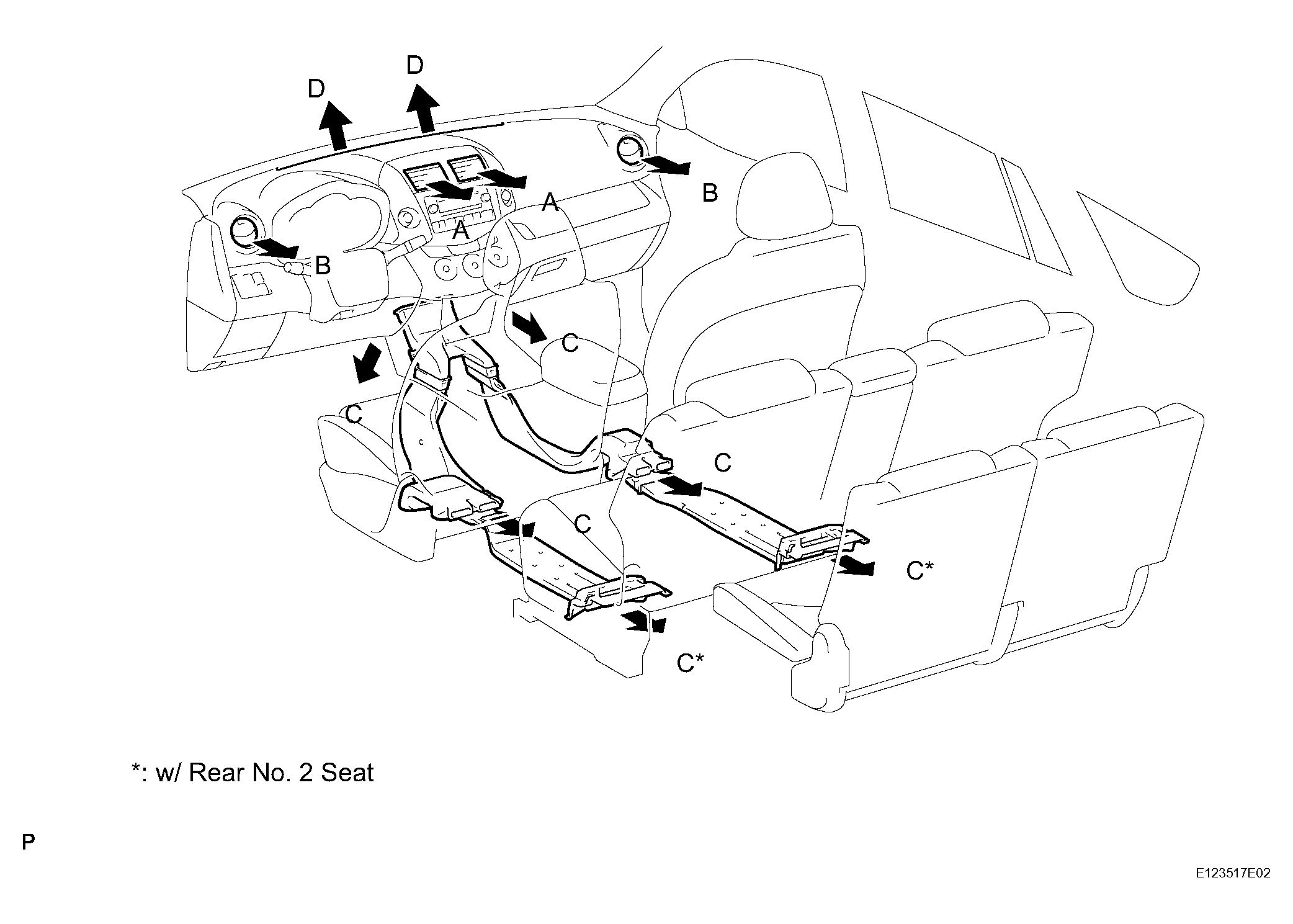

Fig 3: Identifying Air Outlet And Airflow
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The circle size in the chart indicates the proportion of the flow volume.

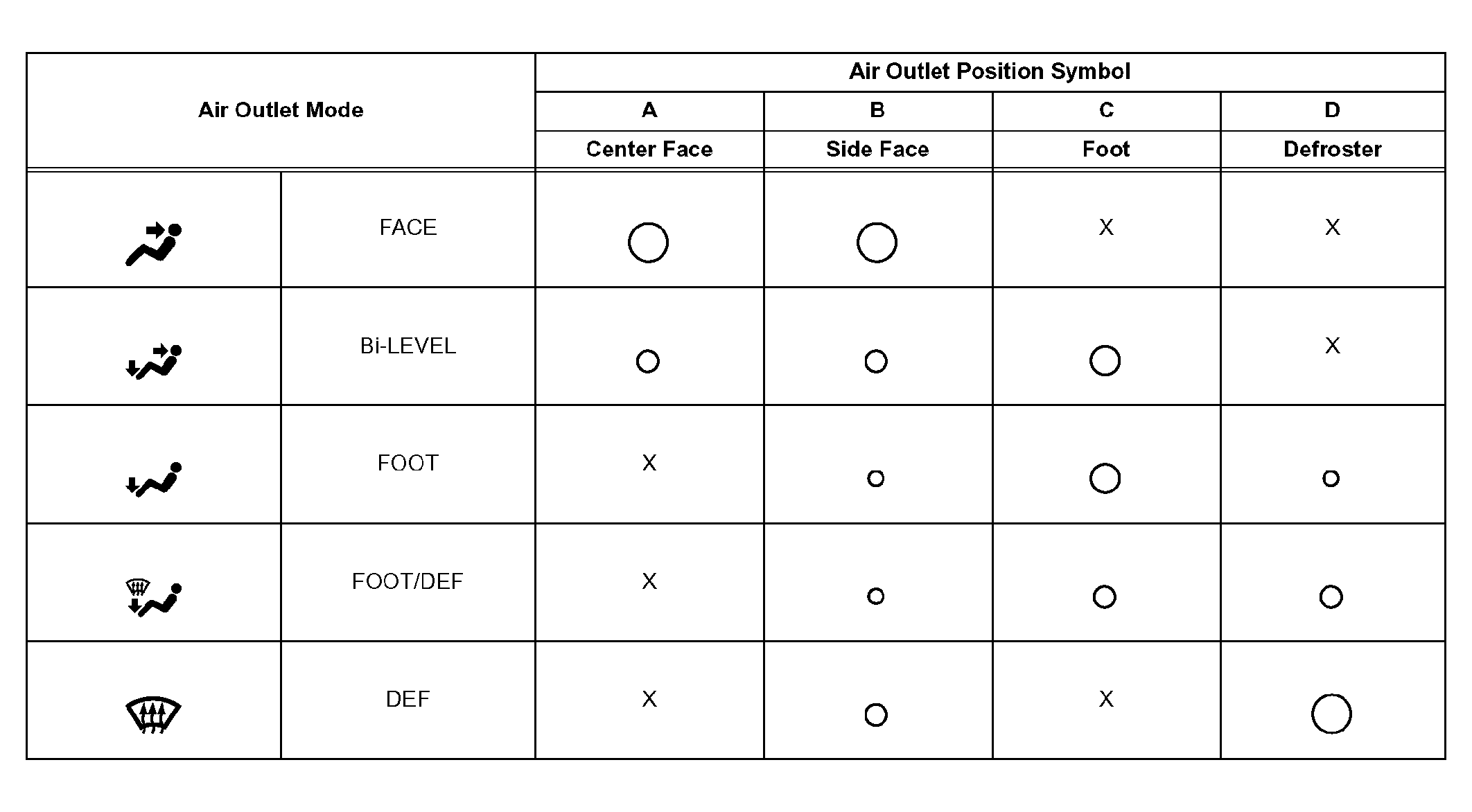

Fig 4: Air Outlet Mode And Air Outlet Position Symbols Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
