Parts Location

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

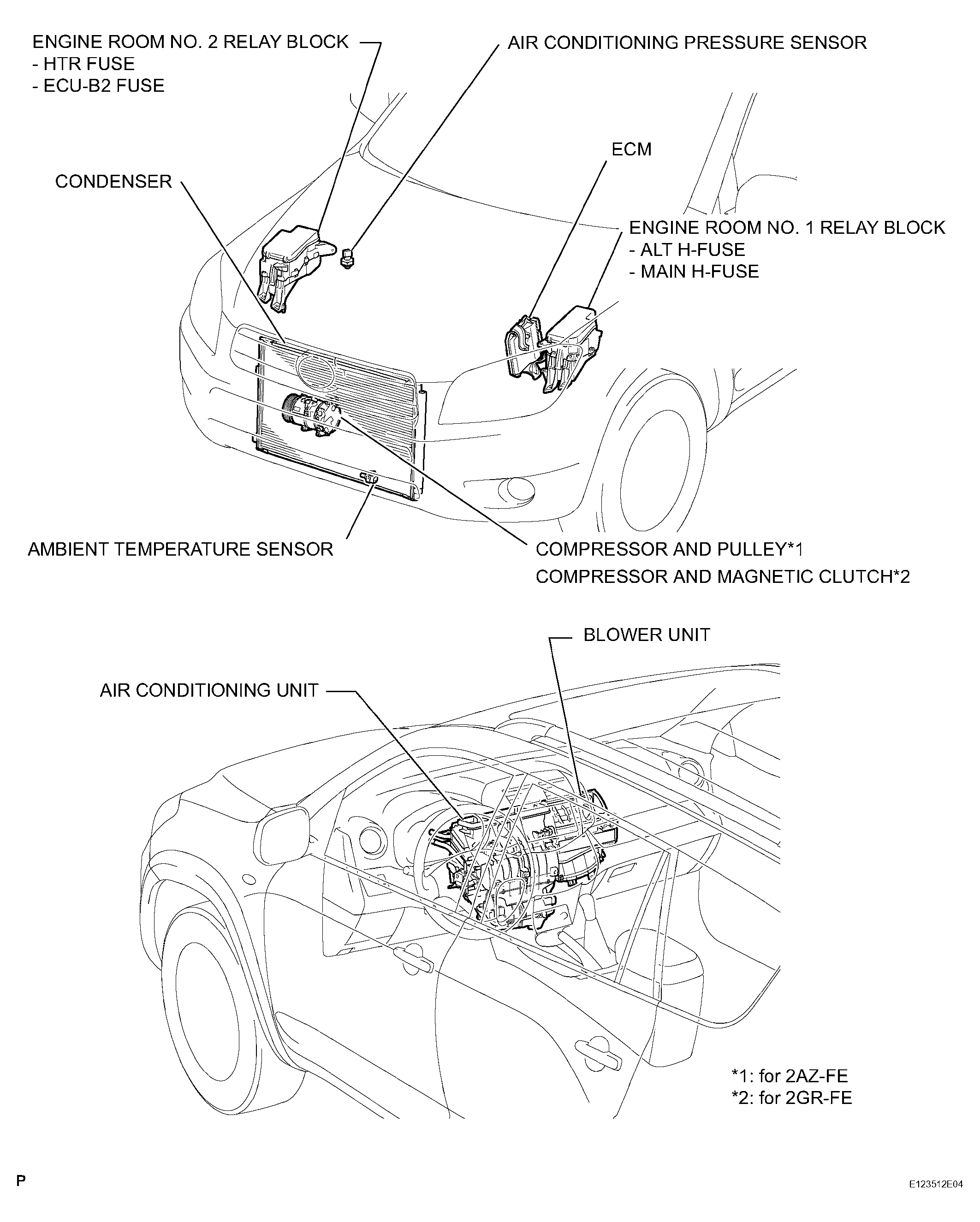

Fig 1: Identifying Location Of Air Conditioning System Components (1 Of 3)
G04489877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

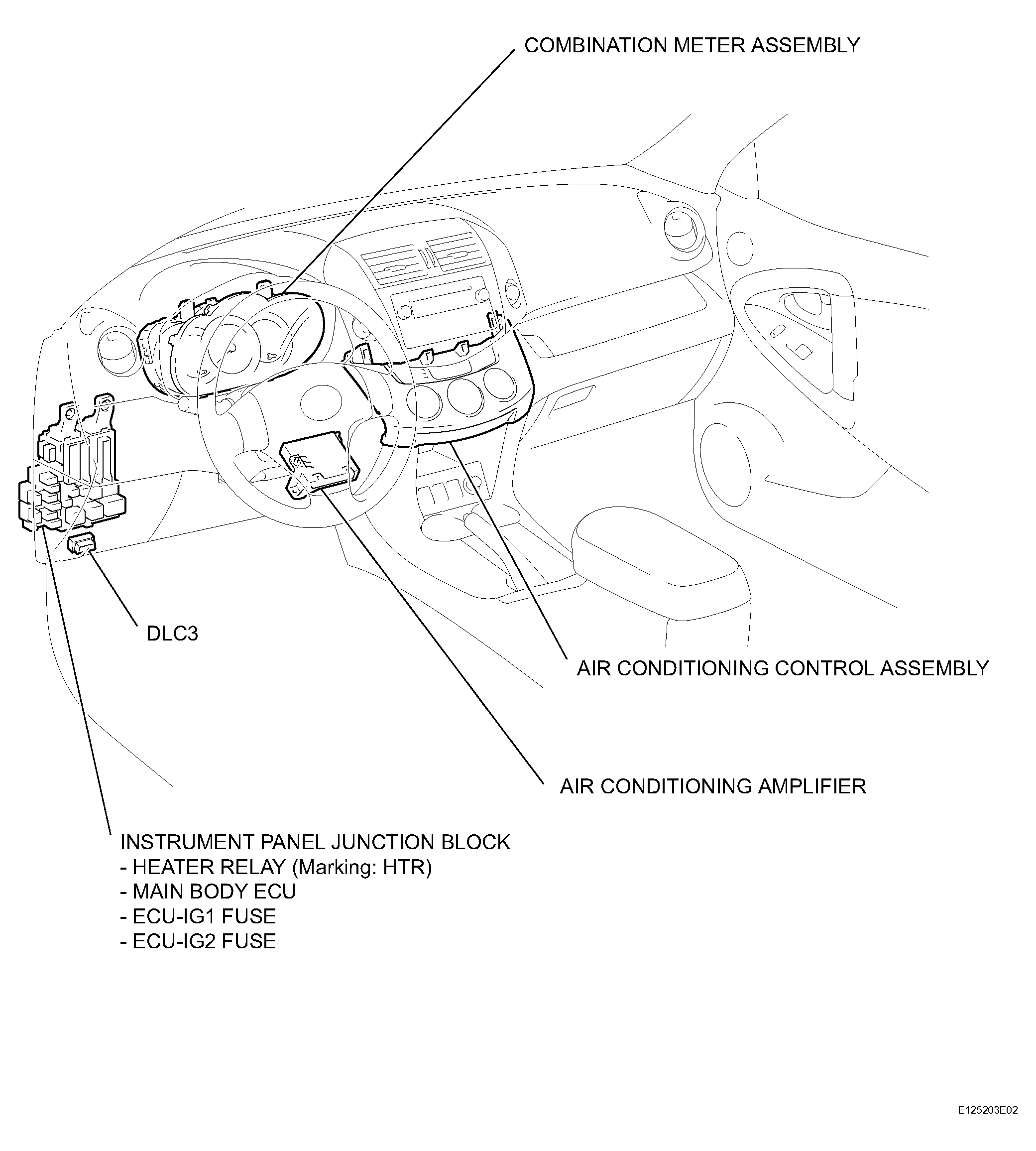

Fig 2: Identifying Location Of Air Conditioning System Components (2 Of 3)
G04489878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

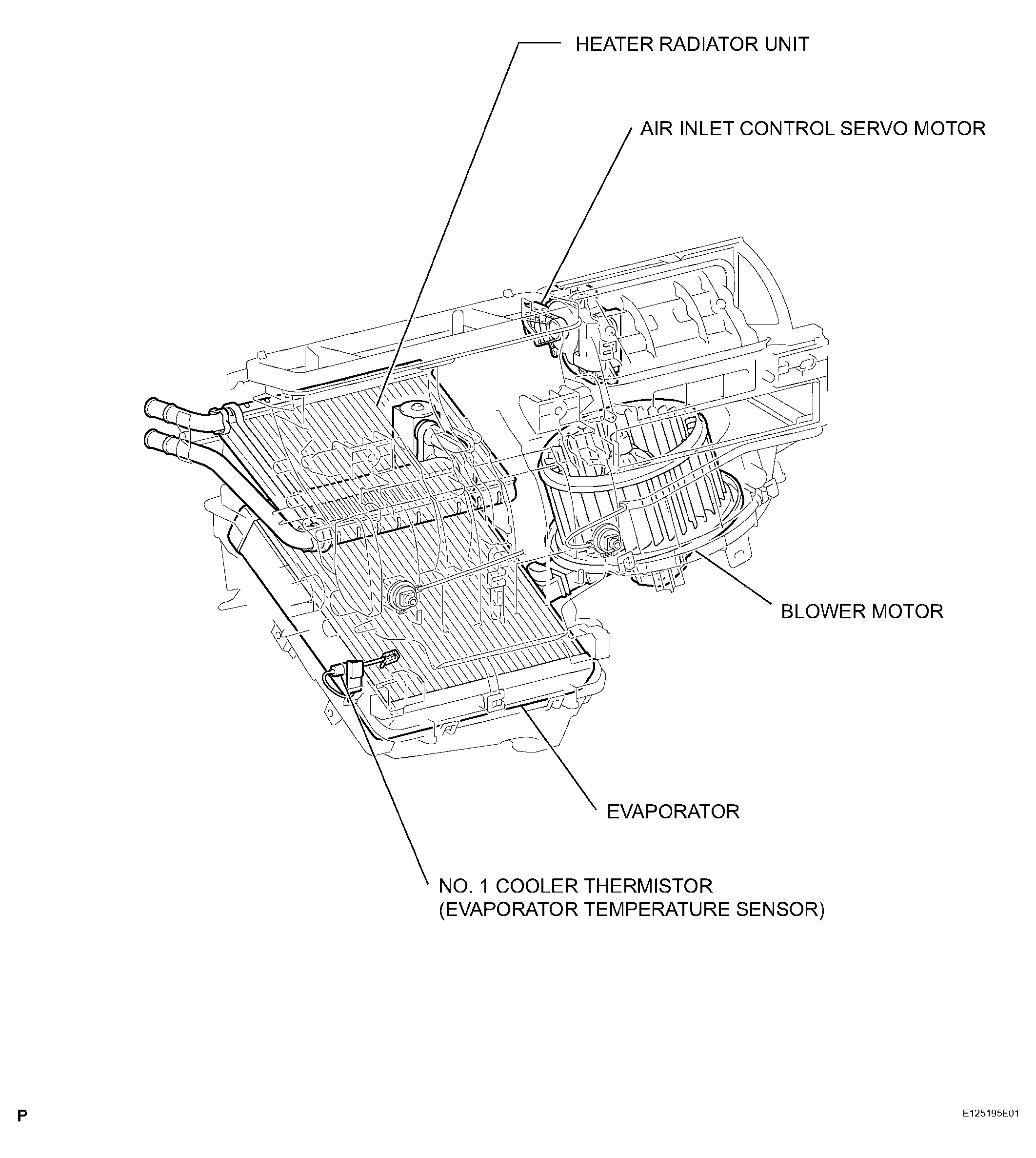

Fig 3: Identifying Location Of Air Conditioning System Components (3 Of 3)
G04489879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
