Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE OF INTELLIGENT TESTER (REG CTRL CURRNT)
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the ignition switch ON and turn the intelligent tester main switch ON.
    3. Select the items below in the DATA LIST, and read the value displayed on the intelligent tester.

      Air conditioning amplifier

      DATA LIST DETAIL

      Item Measurement Item / Display (Range) Normal Condition Diagnostic Note
      REG CTRL CURRNT Regulator control current /
      Min.: 0 A
      Max.: 0.997 A
      Value changes between 0 A and 0.997 A in accordance with A/C compressor operation -

      OK: The display is as specified in the normal condition column.

      Result

      RESULT REFERENCE

      Result Proceed to
      NG A
      OK (Checking from the PROBLEM SYMPTOMS TABLE) B
      OK (Checking from the DTC) C

    B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    C: REPLACE AIR CONDITIONING AMPLIFIER

    A: GO TO NEXT STEP.

  2. INSPECT A/C COMPRESSOR
    1. Disconnect the A/C compressor connector.
      Fig 1: Identifying A/C Compressor Connector
      G04489919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the connector.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION (CONNECTOR(S) DISCONNECTED)

      Tester Connection Condition Specified Condition
      1 (SOL-) - 2 (SOL+) 25°C (77°F) 10.1 to 11.1

    NG: REPLACE A/C COMPRESSOR

    OK: GO TO NEXT STEP.

  3. CHECK WIRE HARNESS (A/C COMPRESSOR - AIR CONDITIONING AMPLIFIER)
    1. Disconnect the B23 A/C compressor connector.
    2. Disconnect the E36 amplifier connector.

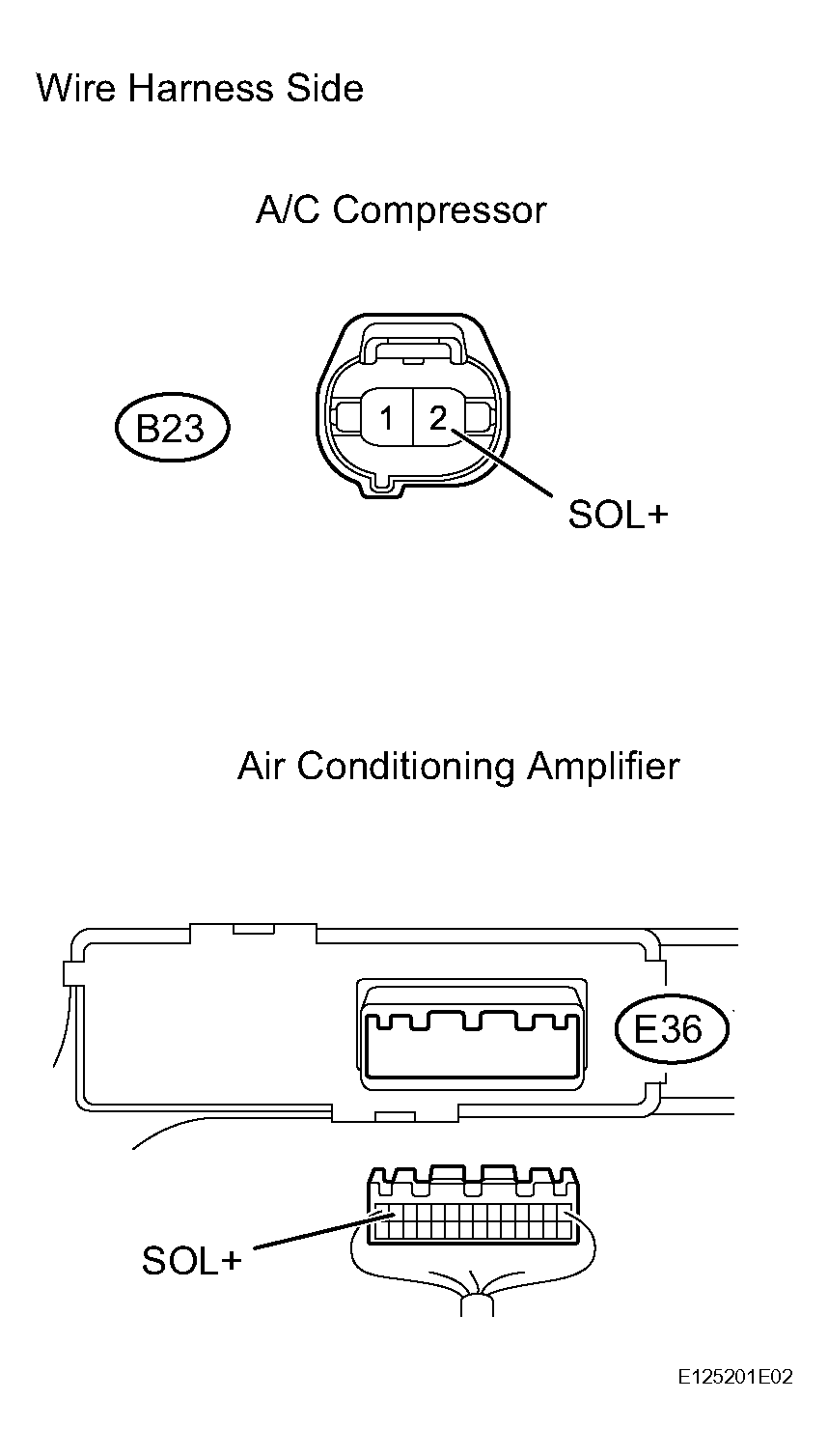

      Fig 2: Disconnecting B23 & E36 Connectors
      G04489920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION (CONNECTOR(S) DISCONNECTED)

      Tester Connection Specified Condition
      B23-2 (SOL+) - E36-13 (SOL+) Below 1
      B23-2 (SOL+) - Body Ground 1 M or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: GO TO NEXT STEP.

  4. CHECK WIRE HARNESS (A/C COMPRESSOR - BODY GROUND)
    1. Disconnect the B23 A/C compressor connector.
      Fig 3: Identifying B23 A/C Compressor Connector
      G04489921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      TERMINALS RESISTANCE SPECIFICATION (CONNECTOR(S) DISCONNECTED)

      Tester Connection Specified Condition
      B23-1 (SOL-) - Body ground Below 1

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE AIR CONDITIONING AMPLIFIER
