Inspection Procedure

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and turn the intelligent tester main switch ON.
3. Select the item below in the DATA LIST, and read the value displayed on the intelligent tester.

   Air conditioning amplifier

   DATA LIST DETAIL



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   EVAP FIN TEMP	Evaporator temperature sensor / Min.: -29.7°C (-21.46°F) Max.: 59.6°C (139.28°F)	Actual evaporator temperature is displayed	Open circuit: -29.7°C (-21.46°F) Short circuit: 59.6°C (139.28°F)

   OK :

   The display is as specified in the normal condition column.

   Result

   RESULT REFERENCE



   Result	Proceed to
   NG	A
   OK (Checking from the PROBLEM SYMPTOMS TABLE)	B
   OK (Checking from the DTC)	C

B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

C: REPLACE AIR CONDITIONING AMPLIFIER

A: GO TO NEXT STEP.

1. Remove the No. 1 cooler thermistor.
2. Measure the resistance of the thermistor.

   Standard resistance

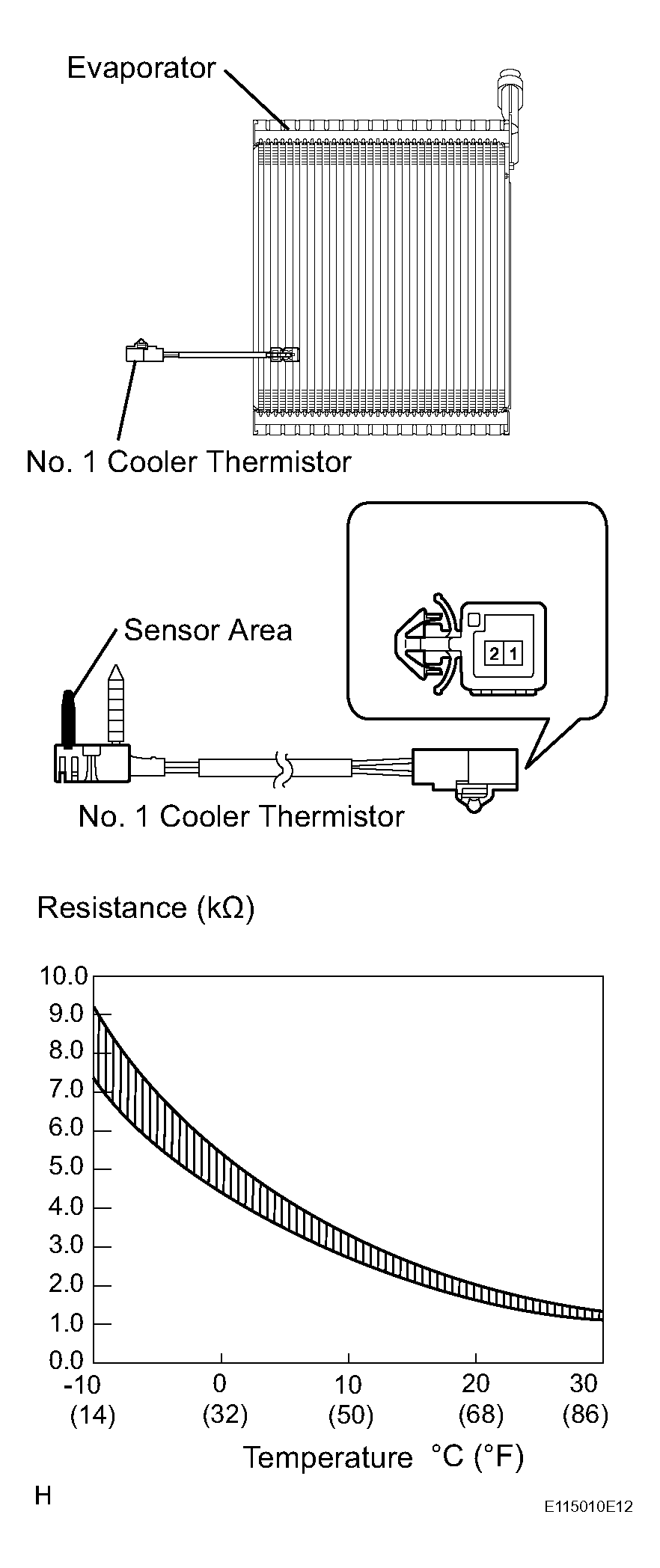

   Fig 1: Evaporator Temperature Sensor Resistance Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   1 - 2	-10°C (14°F)	7.30 to 9.10 k
   1 - 2	-5°C (23°F)	5.65 to 6.95 k
   1 - 2	0°C (32°F)	4.40 to 5.35 k
   1 - 2	5°C (41°F)	3.40 to 4.15 k
   1 - 2	10°C (50°F)	2.70 to 3.25 k
   1 - 2	15°C (59°F)	2.14 to 2.58 k
   1 - 2	20°C (68°F)	1.71 to 2.05 k
   1 - 2	25°C (77°F)	1.38 to 1.64 k
   1 - 2	30°C (86°F)	1.11 to 1.32 k

   NOTE:

   • Touching the thermistor even slightly may change the resistance value. Be sure to hold the connector of the thermistor.
   • When measuring, the thermistor temperature must be the same as the ambient temperature.

   HINT:

   As the temperature increases, the resistance decreases (see Fig 1).

NG: REPLACE NO. 1 COOLER THERMISTOR

OK: GO TO NEXT STEP.

1. Disconnect the E33 No. 1 cooler thermistor connector.
2. Disconnect the E36 amplifier connector.

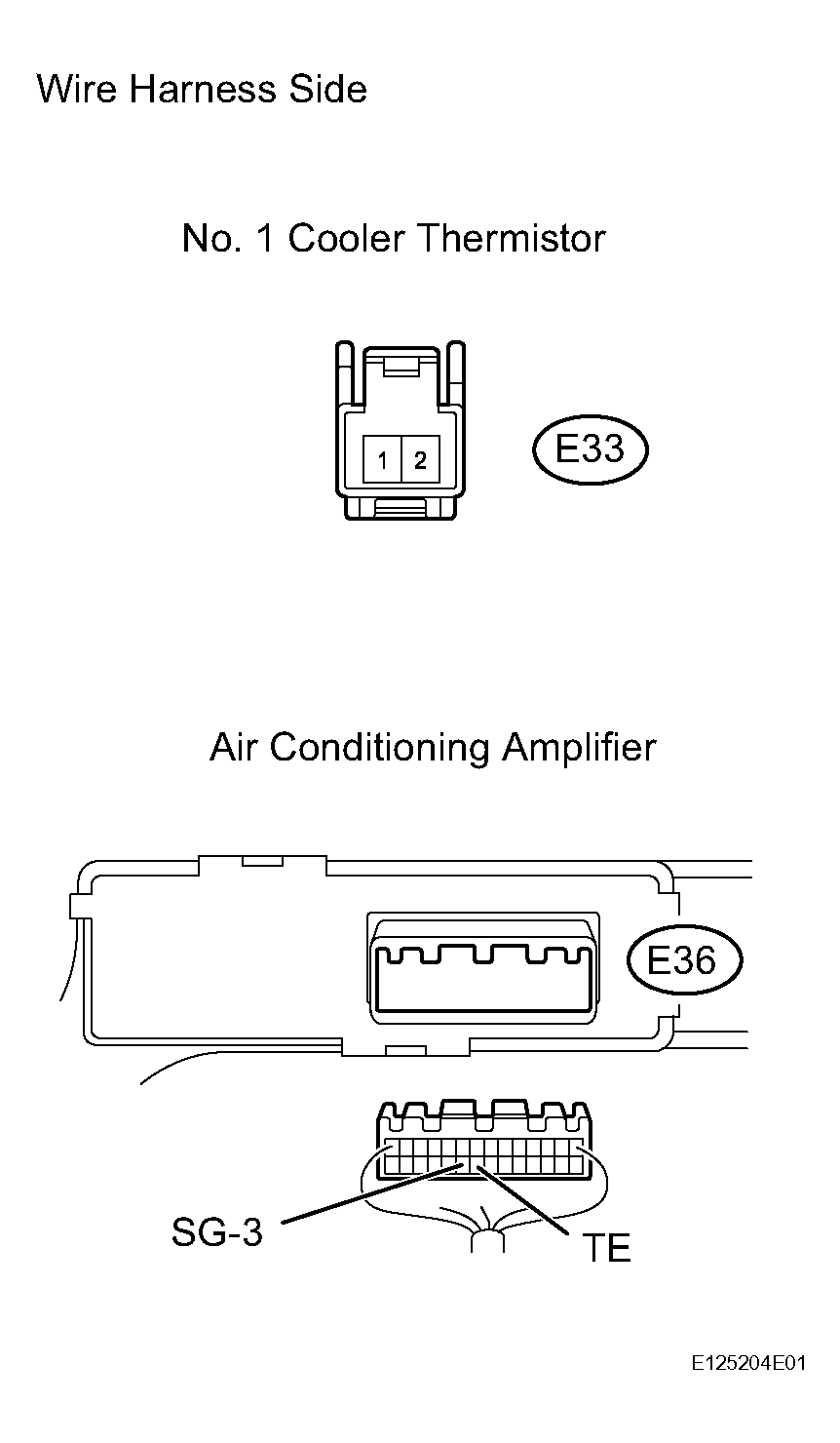

   Fig 2: Disconnecting E33 & E36 Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION (CONNECTOR(S) DISCONNECTED)



   Tester Connection	Specified Condition
   E33-1 - E36-22 (TE)	Below 1
   E33-2 - E36-23 (SG-3)	Below 1
   E33-1 - Body ground	1 M or higher
   E33-2 - Body ground	1 M or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE AIR CONDITIONING AMPLIFIER
