Inspection Procedure

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and turn the intelligent tester main switch ON.
3. Select the item below in the DATA LIST, and read the value displayed on the intelligent tester.

   Air conditioning amplifier

   DATA LIST DETAIL



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   AMBI TEMP SENS	Ambient temperature sensor / Min.: -23.3°C (-9.94°F) Max.: 65.95°C (150.71°F)	Actual ambient temperature is displayed	Open circuit: -23.3°C (-9.94°F) Short circuit: 65.95°C (150.71°F)

   OK :

   The display is as specified in the normal condition column.

   Result

   RESULT REFERENCE



   Result	Proceed to
   NG	A
   OK (Checking from the PROBLEM SYMPTOMS TABLE)	B
   OK (Checking from the DTC)	C

B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

C: REPLACE AIR CONDITIONING AMPLIFIER

A: GO TO NEXT STEP.

1. Remove the ambient temperature sensor (see Fig 1).
2. Measure the resistance of the sensor.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   1 - 2	10°C (50°F)	3.00 to 3.73 k
   1 - 2	15°C (50°F)	2.45 to 2.88 k
   1 - 2	20°C (68°F)	1.95 to 2.30 k
   1 - 2	25°C (77°F)	1.60 to 1.80 k
   1 - 2	30°C (86°F)	1.28 to 1.47 k
   1 - 2	35°C (95°F)	1.00 to 1.22 k
   1 - 2	40°C (104°F)	0.80 to 1.00 k
   1 - 2	45°C (113°F)	0.65 to 0.85 k
   1 - 2	50°C (122°F)	0.50 to 0.70 k
   1 - 2	55°C (131°F)	0.44 to 0.60 k
   1 - 2	60°C (140°F)	0.36 to 0.50 k

   NOTE:

   • Touching the sensor even slightly may change the resistance value. Be sure to hold the connector of the sensor.
   • When measuring, the sensor temperature must be the same as the ambient temperature.

   HINT:

   As the temperature increases, the resistance decreases (see Fig 1).

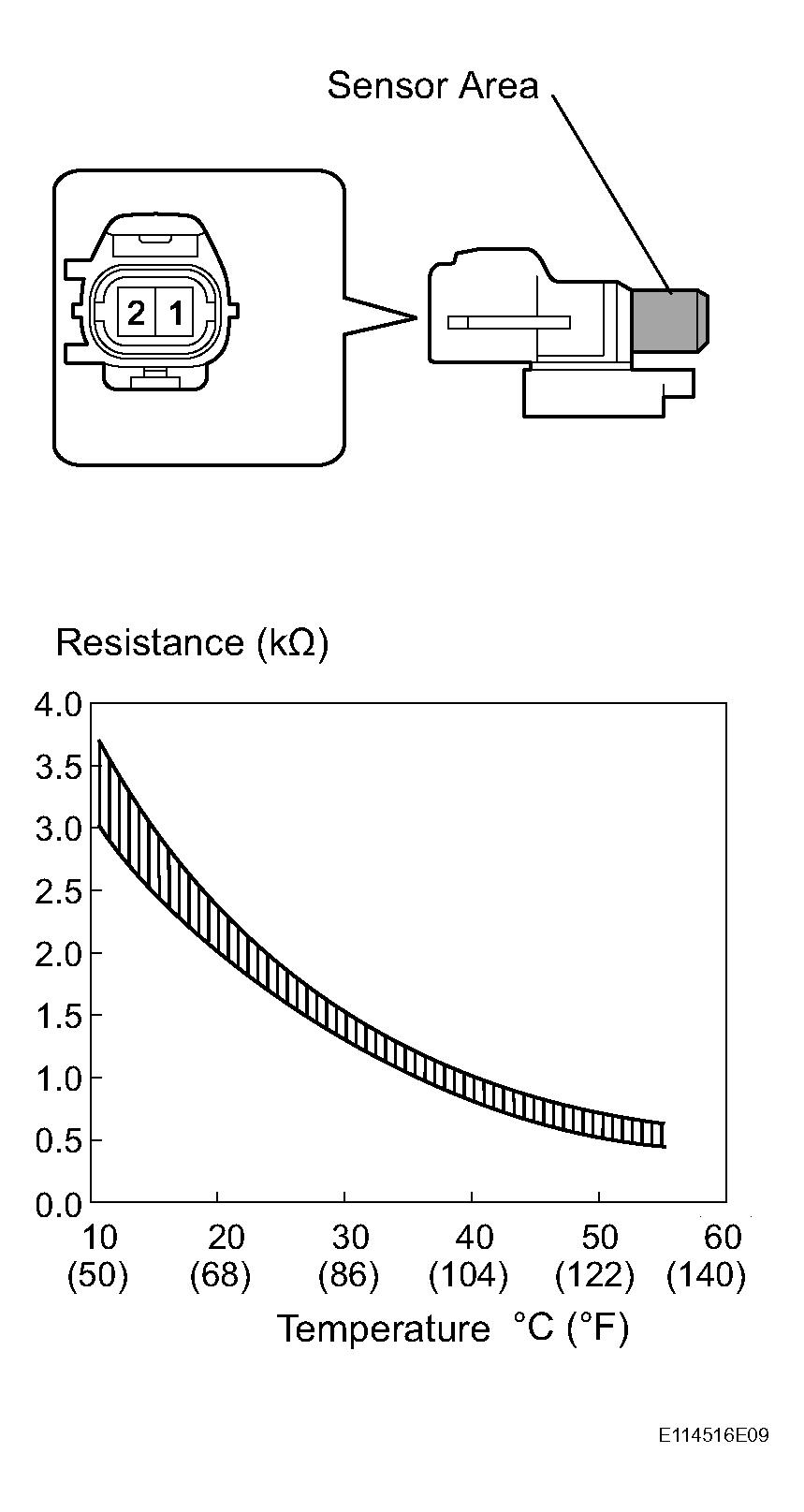

   Fig 1: Ambient Temperature Sensor Resistance Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE AMBIENT TEMPERATURE SENSOR

OK: GO TO NEXT STEP.

1. Disconnect the A17 sensor connector.
2. Disconnect the E19 meter connector.

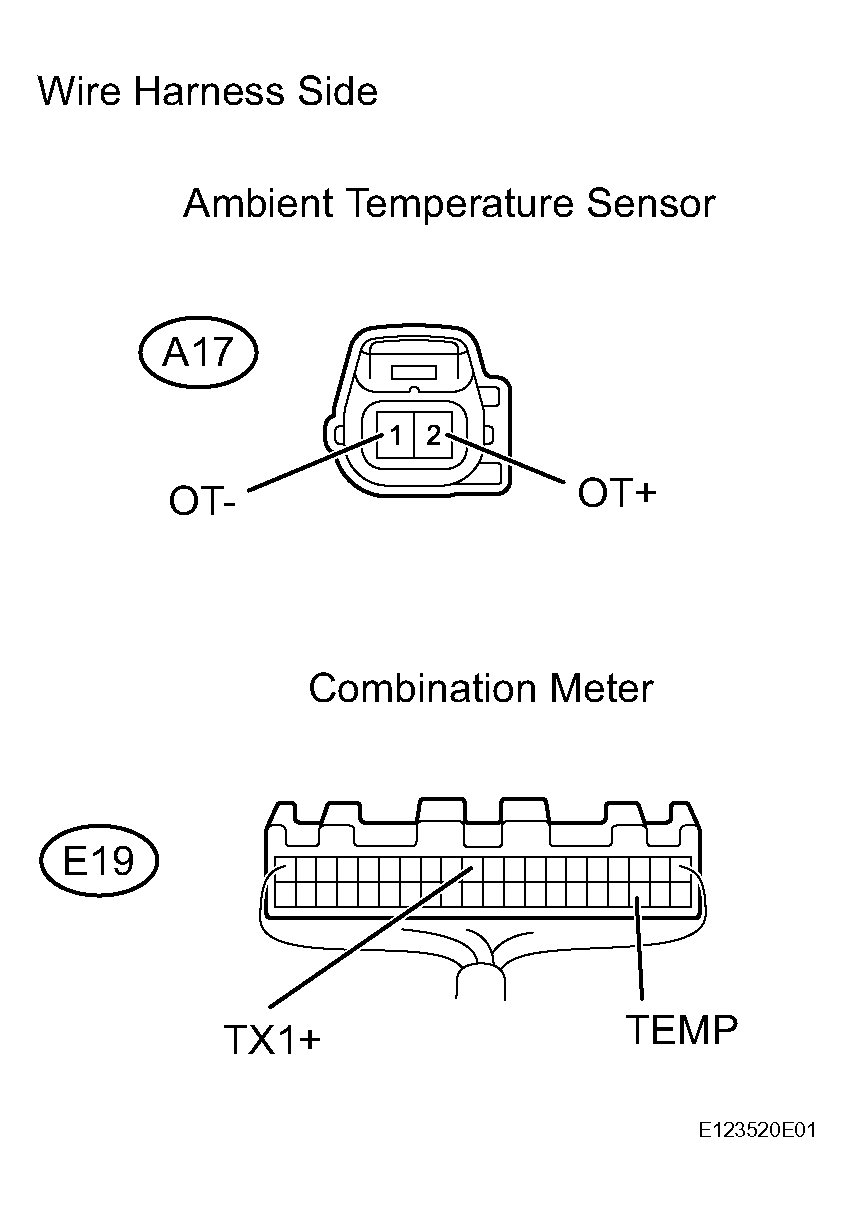

   Fig 2: Identifying A17 & E19 Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION (CONNECTOR(S) DISCONNECTED)



   Tester Connection	Specified Condition
   A17-2 (OT+) - E19-23 (TEMP)	Below 1
   A17-1 (OT-) - E19-11 (TX1+)	Below 1
   A17-2 (OT+) - Body ground	1 M or higher
   A17-1 (OT-) - Body ground	1 M or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP.

REPLACE COMBINATION METER
