Blower Motor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

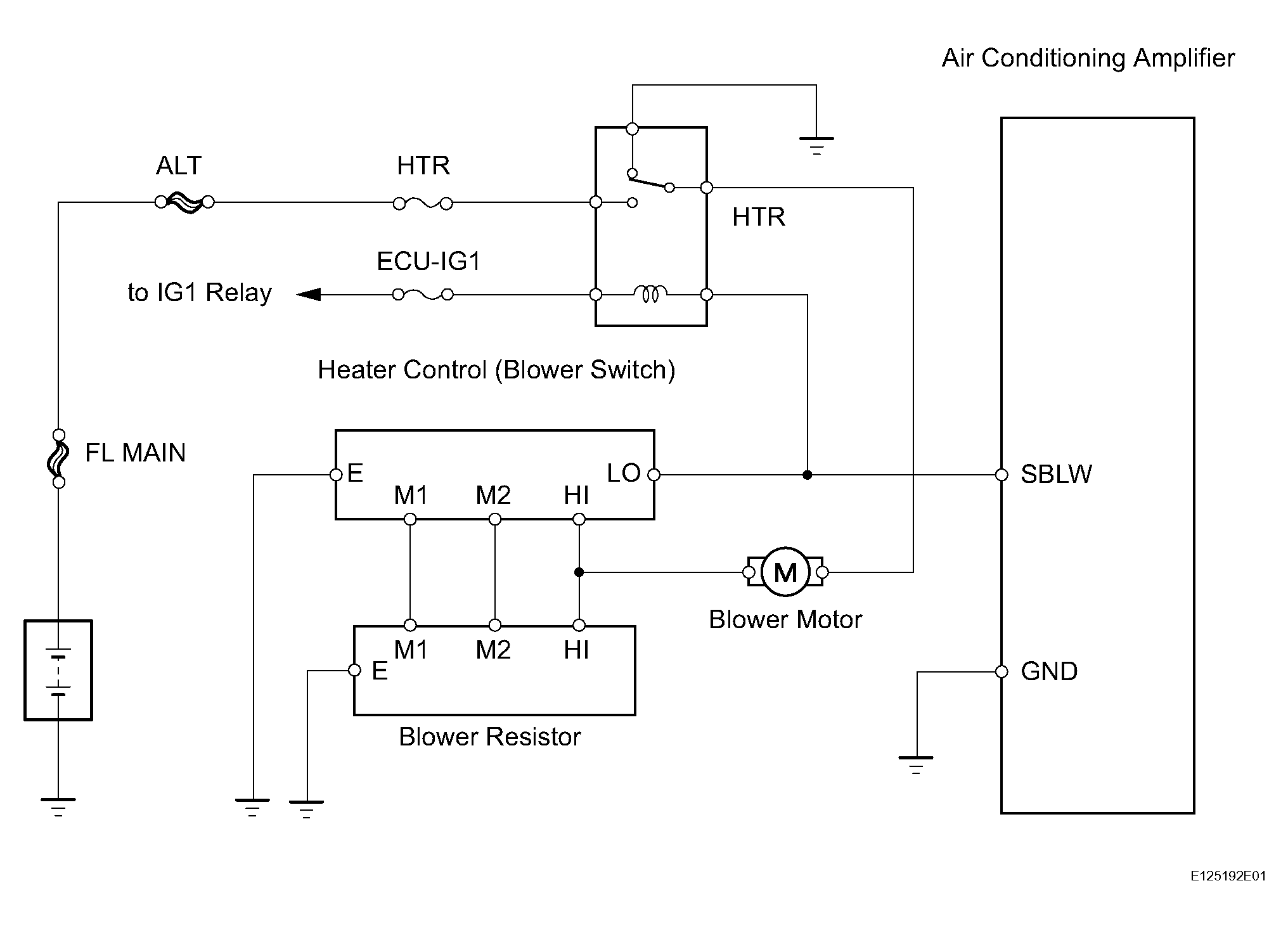

Fig 1: Blower Motor Circuit - Wiring Diagram
G04489923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
