System Description

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GENERAL
    1. The air conditioning system has the following features:
      • In accordance with the temperature set using the temperature control switch, the air conditioning amplifier determines the outlet temperature based on the input signals from various sensors. In addition, corrections are made in accordance with the signals from the water temperature sensor to control the outlet air temperature.
      • Controls the blower motor in accordance with the airflow volume determined by the air conditioning amplifier based on the input signals from various sensors.
      • Automatically changes the outlets in accordance with the outlet mode ratio that is determined by the air conditioning amplifier based on the input signals from various sensors.
      • Based on the signals from the ambient temperature sensor, this system calculates the outside temperature and indicates it in the multi-information display in the combination meter assembly.
      • The left/right independent temperature control and neural network control make air conditioner control available to suit the persons in the driver seat and in the passenger seat.
      • Turns the rear defogger and outside rear mirror heaters on for 15 minutes when the rear defogger switch is pressed. Turns them off if the switch is pressed while they are operating.
      • Checks the sensors in accordance with the operation of the air conditioner switches.
      • The air conditioning amplifier has the function of controlling the indicator lighting.
  2. MODE POSITION AND DAMPER OPERATION

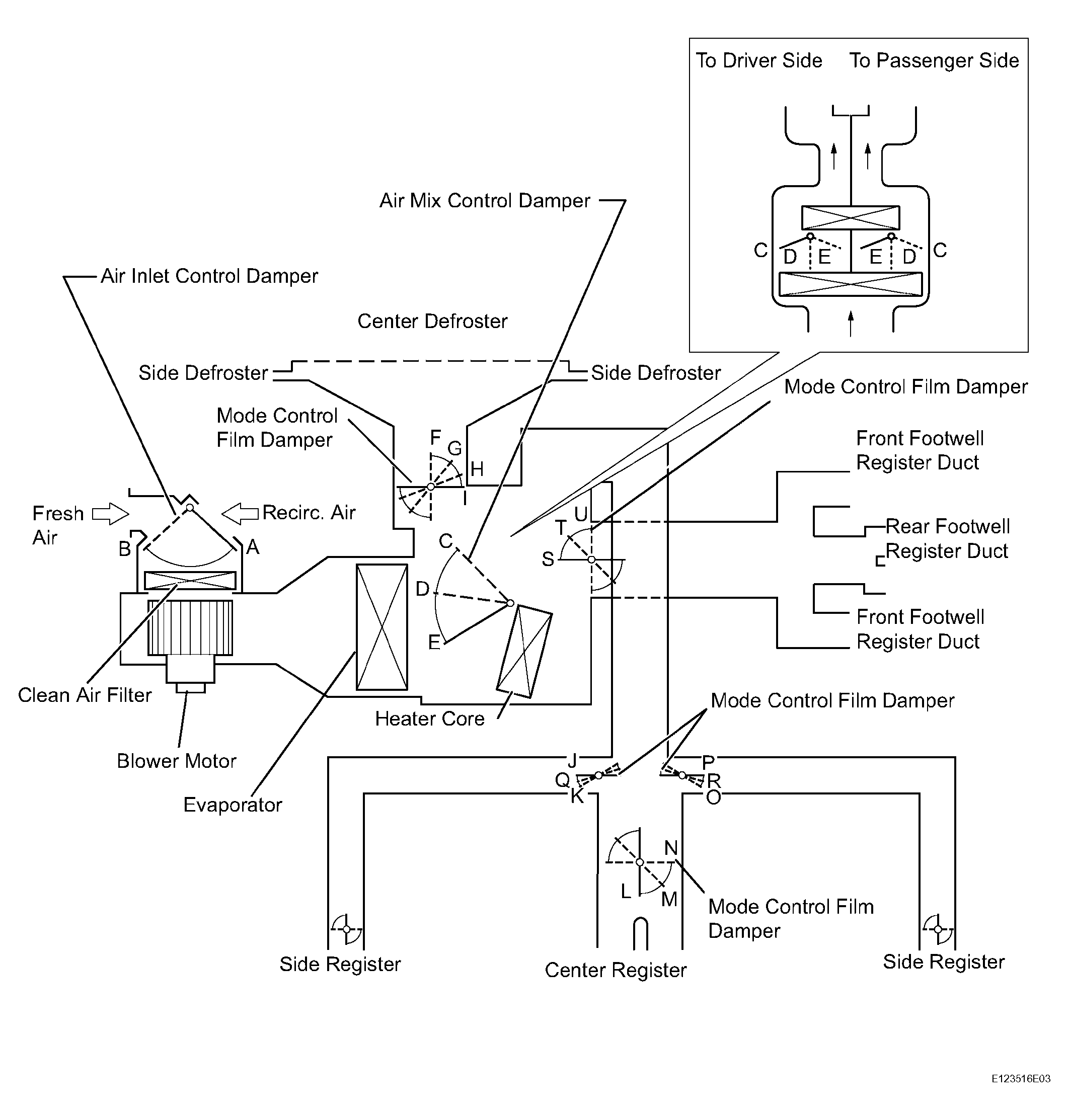

    Fig 1: Mode Position And Damper Operation Diagram
    G04489783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

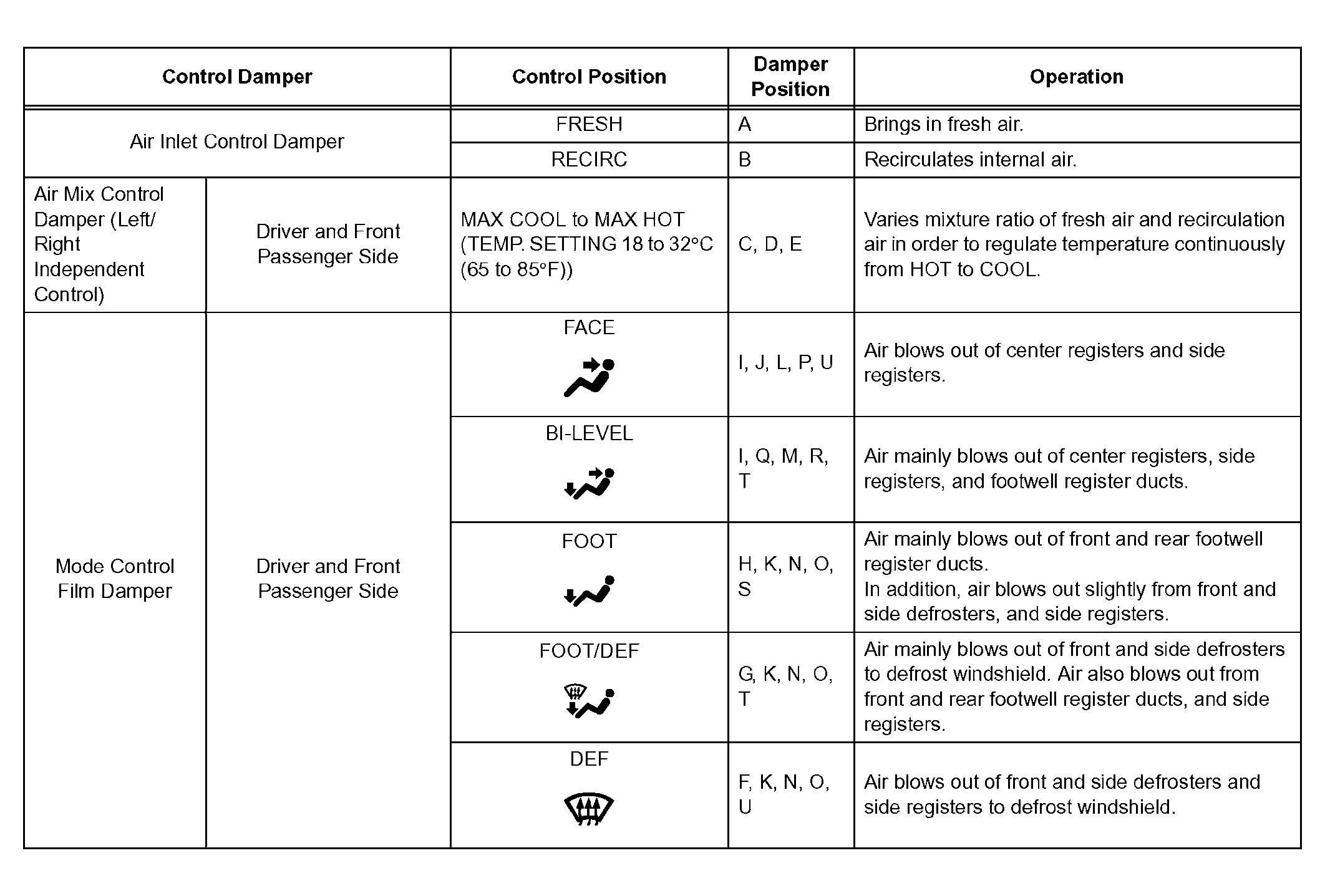

    Fig 2: Mode Position And Damper Operation Description Chart
    G04489784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR OUTLET AND AIRFLOW VOLUME

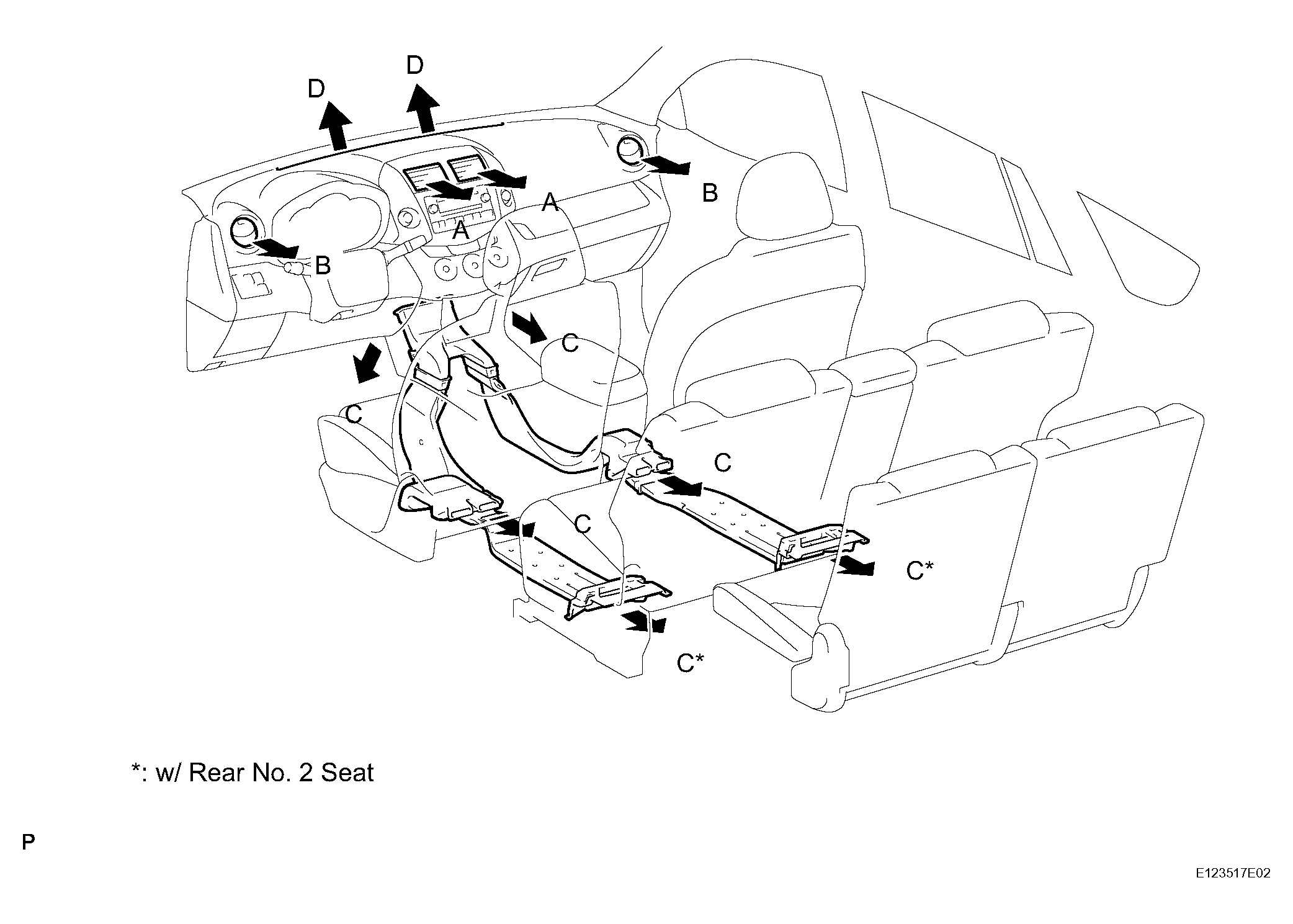

    Fig 3: Identifying Air Outlet And Airflow
    G04489785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

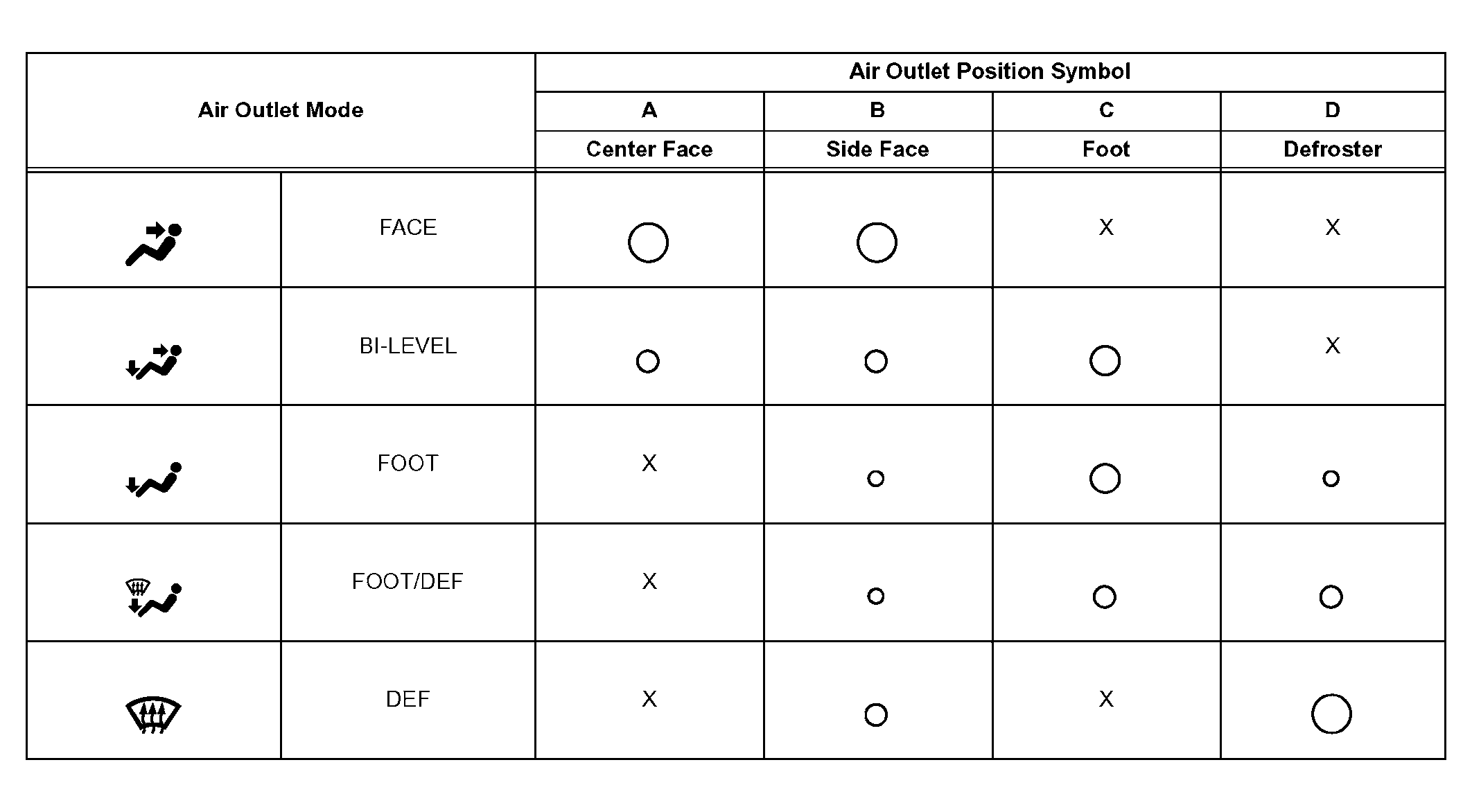

    The size of the circle in the chart below indicates the proportion of the flow volume.

    Fig 4: Air Outlet Mode And Air Outlet Position Symbols Description Chart
    G04489786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
