IG Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

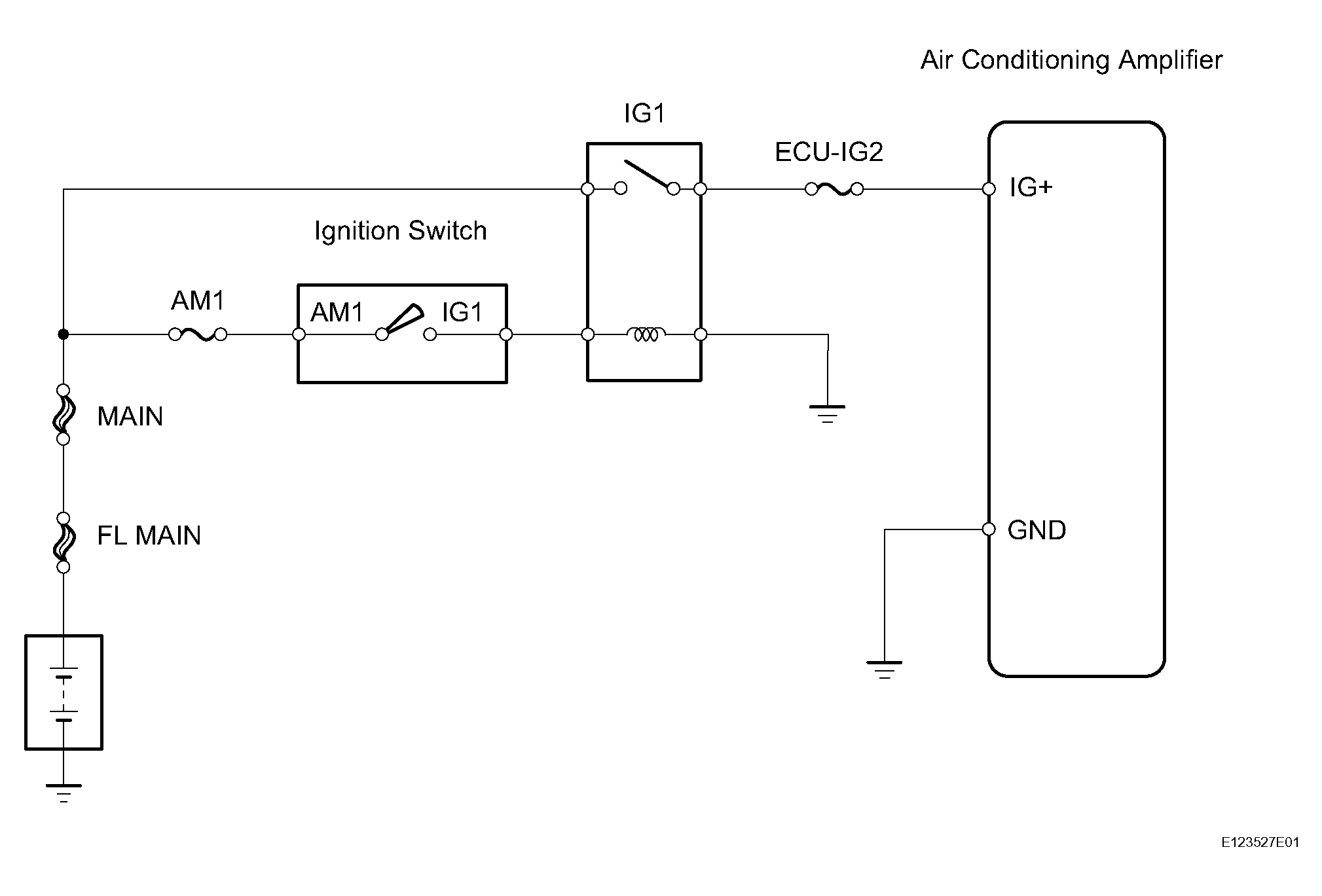

Fig 1: IG Power Source Circuit - Wiring Diagram
G04489865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
