Data List / Active Test

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ DATA LIST

    HINT:

    Using the intelligent tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the ignition switch ON and turn the intelligent tester ON.
    3. Read the DATA LIST by following the prompts on the tester.

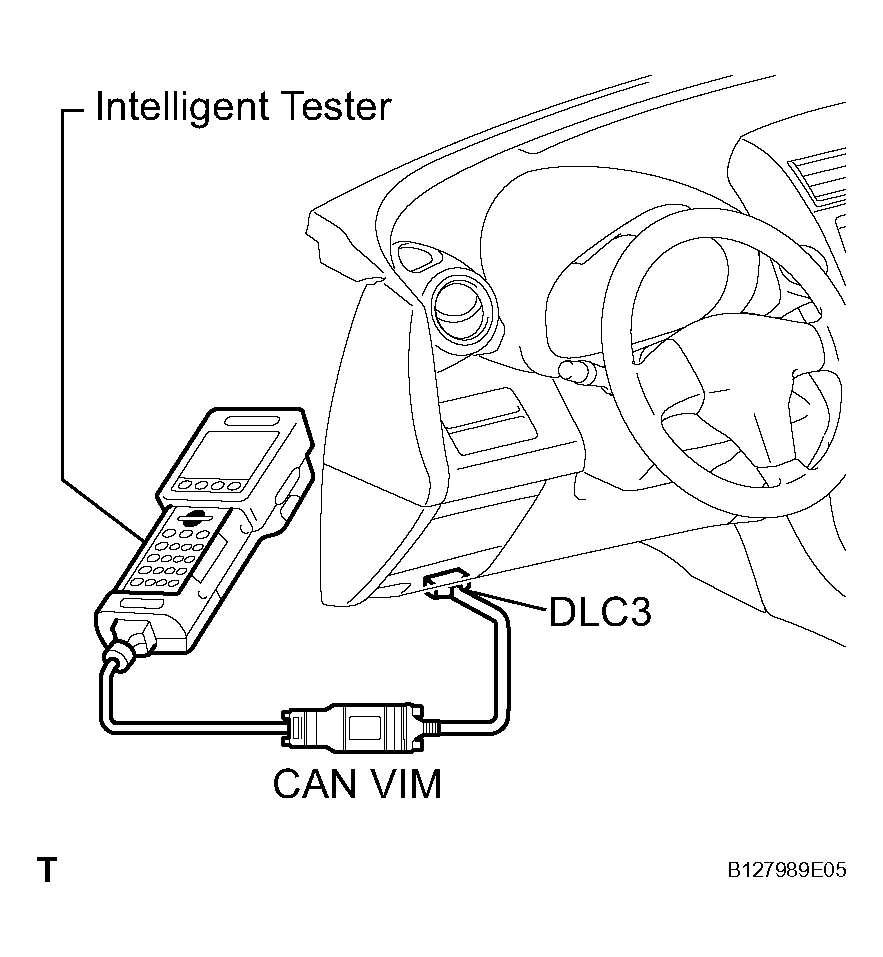

      Fig 1: Connecting Intelligent Tester To DLC3
      G04489809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Air conditioning amplifier

      DATA LIST DETAIL

      Item Measurement Item / Display (Range) Normal Condition Diagnostic Note
      ROOM TEMP Room temperature sensor /
      Min.: -6.5°C (20.3°F)
      Max.: 57.25°C (135.05°F)
      Actual room temperature is displayed Open circuit: -6.5°C (20.3°F)
      Short circuit: 57.25°C (135.05°F)
      AMBI TEMP SENS Ambient temperature sensor /
      Min.: -23.3°C (-9.94°F)
      Max.: 65.95°C (150.71°F)
      Actual ambient temperature is displayed Open circuit: -23.3°C (-9.94°F)
      Short circuit: 65.95°C (150.71°F)
      SOLAR SENS-D Driver side solar sensor /
      Min.: 0, Max.: 255
      Driver side temperature increases as brightness increases -
      SOLAR SENS-P Passenger side solar sensor /
      Min.: 0, Max.: 255
      Passenger side temperature increases as brightness increases -
      COOLANT TEMP Engine coolant temperature /
      Min.: 1.3°C (34.34°F)
      Max.: 90.55°C (194.99°F)
      Actual engine coolant temperature is displayed after engine warmed up -
      SET TEMP-D Driver side set temperature /
      Min.: 0°C (32°F)
      Max.: 30°C (54°F)
      Driver side actual set temperature is displayed -
      SET TEMP-P Passenger side set temperature /
      Min.: 0°C (32°F)
      Max.: 30°C (54°F)
      Passenger side actual set temperature is displayed -
      ESTIMATE TEMP-D Driver side estimated temperature /
      Min.: -358.4°C (-613.12°F)
      Max.: 358.4°C (677.12°F)
      Driver side estimated temperature is displayed -
      ESTIMATE TEMP-P Passenger side estimated temperature /
      Min.: -358.4°C (-613.12°F)
      Max.: 358.4°C (677.12°F)
      Passenger side estimated temperature is displayed -
      BLOWER LEVEL Blower motor speed level /
      Min.: 0, Max.: 31
      Increases in range between 0 and 31 as blower motor speed increases -
      AMBI TEMP Adjusted ambient temperature /
      Min.: -30.8°C (-23.44°F)
      Max.: 50.8°C (123.44°F)
      - -
      AIR MIX PULSE-D Driver side air mix servo motor target pulse /
      Min.: 0, Max.: 255
      Customized value displayed -
      AIR MIX PULSE-P Passenger side air mix servo motor target pulse /
      Min.: 0, Max.: 255
      Customized value displayed -
      AIR OUT PULSE Air outlet servo motor target /
      Min.: 0, Max.: 255
      Customized value displayed -
      A/I DAMP PLS Air inlet damper target pulse /
      Min.: 0, Max.: 255
      Customized value displayed -
      EVAP FIN TEMP Evaporator temperature sensor /
      Min.: -29.7°C (-21.46°F)
      Max.: 59.6°C (139.28°F)
      Actual evaporator temperature is displayed Open circuit: -29.7°C (-21.46°F)
      Short circuit: 59.6°C (139.28°F)
      REG PRESS SENS Regulator pressure sensor /
      Min.: 0 MPaG
      Max.: 3.187 MPaG
      Actual regulator pressure is displayed -
      REG CTRL CURRNT Regulator control current /
      Min.: 0 A
      Max.: 0.997 A
      Value changes between 0 A and 0.997 A in accordance with compressor and magnetic clutch operation -
      AIR INLET MODE Air inlet mode / AUTO, MANUAL Customized value displayed -
      COMPRESSOR MODE Compressor mode / AUTO, MANUAL Customized value displayed -
      COMPRS/DEF MODE Compressor / DEF Mode / LINK, NORMAL Customized value displayed -
      EVAP CTRL Evaporator Control / AUTO, MANUAL Customized value displayed -
      AUTO BLOW UP Foot / DEF automatic blow up function /
      ON, OFF
      Customized value displayed -
      FOOT/DEF MODE Foot / DEF auto mode / ON, OFF Customized value displayed -
      SET TEMP SHIFT Shift set temperature / +2 C, +1 C, NORMAL, -1 C, -2 C Customized value displayed -
      DESTINATION Destination / DOMEST, USA, EUROPE, AUSTRAL, MIDEAST, NO INFO Destinations displayed -
      #CODES Number of trouble codes /
      Min.: 0, Max.: 255
      Number of DTCs displayed -
  2. PERFORM ACTIVE TEST

    HINT:

    Performing the intelligent tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed in the ACTIVE TEST.

    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the ignition switch ON and turn the intelligent tester ON.
    3. Perform the ACTIVE TEST by following the prompts on the tester.

      Air conditioning amplifier

      ACTIVE TEST DETAIL

      Item Test Details / Display (Range) Diagnostic Note
      BLOWER MOTOR Blower motor /
      Min.: 0, Max.: 31
      -
      A/C COMPRESSOR*1 A/C Compressor
      OFF, ON
      -
      A/C MAG CLUTCH*2 Magnetic clutch relay /
      OFF, ON
      Operating sound can be heard
      DEFOGGER RLY-R Defogger relay (Rear) /
      OFF, ON
      -
      AIR MIX PULSE Air mix servo motor pulse /
      Min.: 0, Max.: 255
      -
      AIR MIX PULSE-P Air mix servo motor pulse (P side) /
      Min.: 0, Max.: 255
      -
      AIR OUT PULSE Air outlet servo motor pulse /
      Min.: 0, Max.: 255
      -
      A/I DAMP PLS Air inlet damper target pulse /
      Min.: 0, Max.: 255
      -

      HINT:

      *1: for 2AZ-FE

      *2: for 2GR-FE
