Check Mode Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. PANEL DIAGNOSIS (INDICATOR CHECK)
    1. Turn the ignition switch to LOCK.
    2. Turn the ignition switch ON while simultaneously pressing the A/C control AUTO switch and the REC/FRS switch.
    3. Check that all indicators and the display area are turned on and off 4 times in succession at 1 second intervals.
      Fig 1: Identifying A/C Control AUTO Switch And REC/FRS Switch
      G04489802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

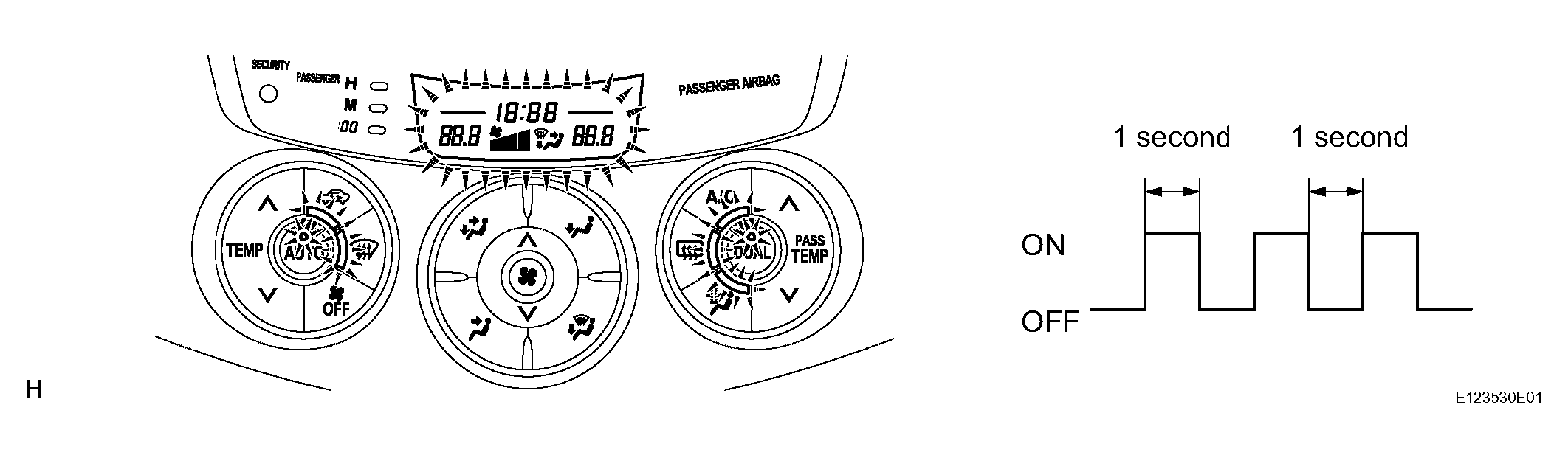

      Fig 2: Identifying Indicator Blinking Pattern
      G04489803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      After the indicator check is completed, the system automatically enters sensor check mode.

    4. Press the OFF switch to terminate the panel diagnosis.
  2. PANEL DIAGNOSIS (SENSOR CHECK)
    1. Perform the indicator check.

      HINT:

      After the indicator check is completed, the system automatically enters sensor check mode.

    2. Press the REC/FRS switch to enter actuator check mode.
    3. After the actuator check is completed, press the AUTO switch to enter sensor check mode.
      NOTE: The sensor check must be performed again after the actuator check is completed because sensor check mode, which starts automatically after the indicator check, cannot fully detect malfunctions.
    4. Check the sensor check results displayed on the set temperature display.
      RESULT REFERENCE

      Results Code Display
      Present malfunction Blinks
      Past malfunction Blinks
      Fig 3: Identifying Temperature Display
      G04489804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The illustration shows the display when code 21 is output.
      • When 2 or more sensor check codes are detected, the codes are displayed in ascending numerical order.
      • In cases with 2 or more codes, if they are difficult to read, press the DEF switch to activate the step operation and display them one by one.
      • The codes are displayed in ascending numerical order as the DEF switch is pressed.
    5. When any sensor check codes are displayed, Refer to (see DIAGNOSTIC TROUBLE CODE CHART ).
    6. Press the OFF switch to terminate the panel diagnosis.

      HINT:

      Pressing the REC/FRS switch returns the system to actuator check mode.

  3. PANEL DIAGNOSIS (CLEAR SENSOR CHECK CODE)
    1. Inspect, and repair or replace the malfunctioning parts.
    2. Clear the sensor check codes.

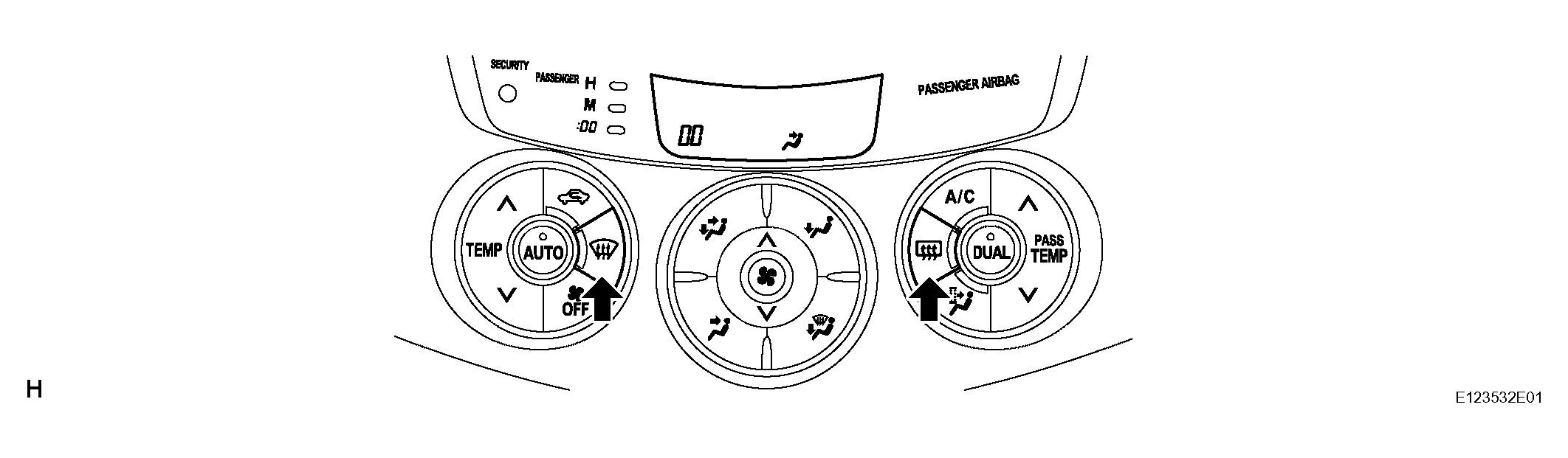

      Fig 4: Identifying DEF Switch
      G04489805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. While pressing the DEF switch during sensor check mode, press the Rr DEF switch.

        HINT:

        Sensor check codes can be cleared by removing the ECU-B2 fuse from the engine room No. 2 relay block for more than 60 seconds.

    3. Perform the sensor check and confirm that normal code 00 is displayed.
  4. PANEL DIAGNOSIS (ACTUATOR CHECK)
    1. Start the engine and warm it up.
    2. Perform the indicator check.
    3. When the sensor check is started after the indicator check, press the REC/FRS switch to start the actuator check.

      HINT:

      Perform the actuator check with the engine running.

    4. Check the temperature and blower levels by hand at each step while the actuator check proceeds from step 0 to 9 at 1 second intervals (continuous operation).
      Fig 5: Identifying Actuator Blinking Pattern
      G04489806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

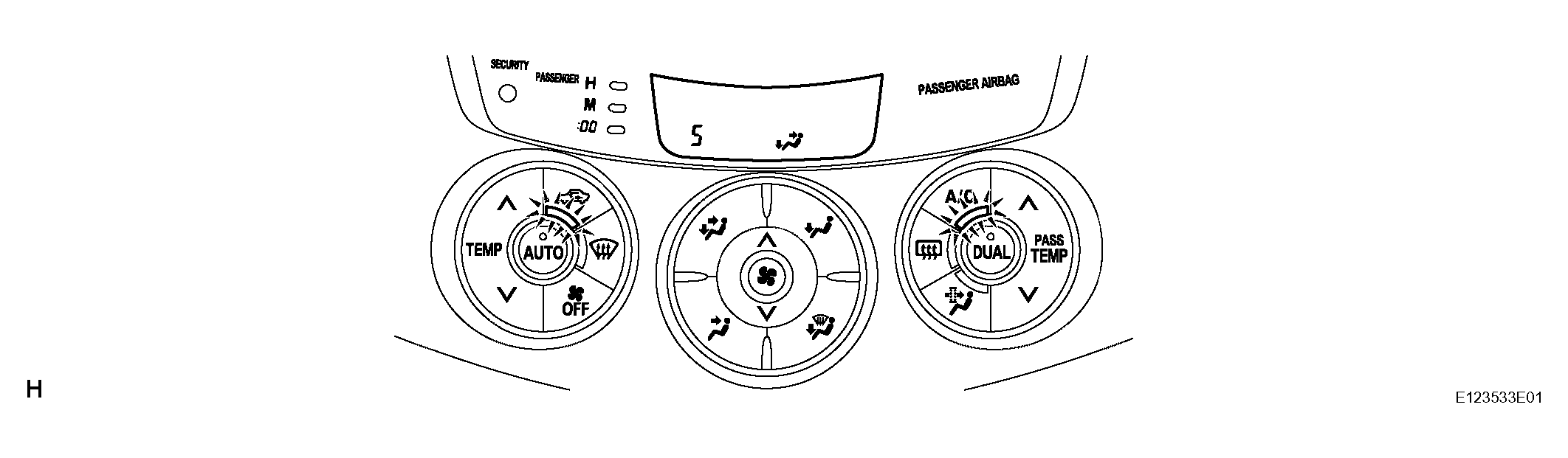

      Fig 6: Identifying A/C Control AUTO Switch, REC/FRS Switch And DEF Switch
      G04489807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Each step number is displayed on the set temperature display.

    5. To display step numbers one by one manually, press the DEF switch to activate the step operation. The step number changes each time the DEF switch is pressed.

      HINT:

      • Each step number blinks at 1 second intervals during the step operation.
      • The illustration shows the display when step number 5 is displayed.
    6. Press the OFF switch to terminate the panel diagnosis.

      HINT:

      Pressing the AUTO switch returns to sensor check mode.

      ACTUATOR INSPECTION CHART

      Step No. Blower Level Air Mix Damper Air Flow Vent Air Inlet Damper Cool Air Bypass Compressor
      0 0 0% (MAX COLD) FACE FRESH - OFF
      1 1 0% (MAX COLD) FACE FRESH - OFF
      2 17 0% (MAX COLD) FACE RECIRCULATION / FRESH - ON
      3 17 0% (MAX COLD) FACE RECIRCULATION - ON
      4 17 50% BI-LEVEL RECIRCULATION - ON
      5 17 50% BI-LEVEL RECIRCULATION - ON
      6 17 50% FOOT FRESH - ON
      7 17 100% (MAX HOT) FOOT FRESH - ON
      8 17 100% (MAX HOT) FOOT/DEF FRESH - ON
      9 31 100% (MAX HOT) DEF FRESH - ON
