AIR CONDITIONING CONTROL ASSEMBLY (For Automatic Air Conditioning System): Removal
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See REMOVAL under UPPER INSTRUMENT PANEL )
- REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See REMOVAL under UPPER INSTRUMENT PANEL )
- REMOVE RADIO RECEIVER (See REMOVAL under UPPER INSTRUMENT PANEL )

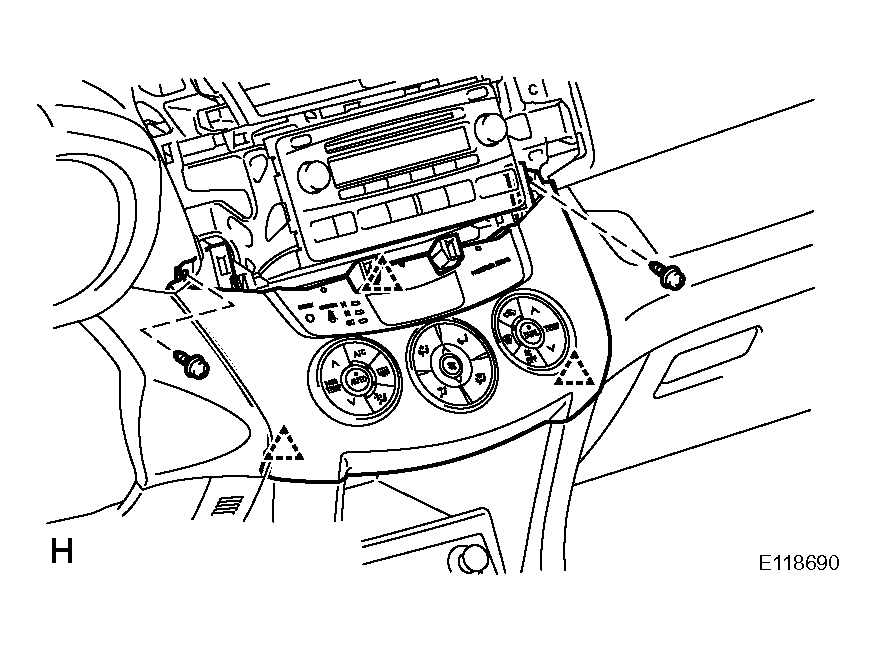

- REMOVE AIR CONDITIONING CONTROL ASSEMBLY
- Remove the 2 screws.
- Using a screwdriver, detach the 3 clips.
HINT:
Tape the screwdriver tip before use.
- Connect the connectors and remove the air conditioning control.
