REPLACE GENERATOR DRIVE END FRAME BEARING
1. Remove the 4 screws and bearing retainer.

  Fig 1: Removing Bearing Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the bearing.
  SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

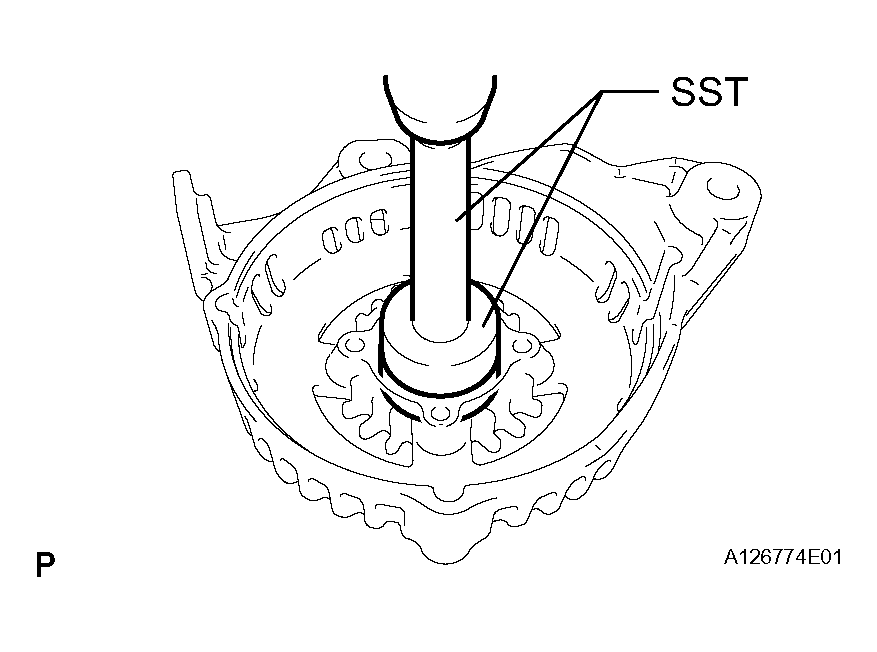

  Fig 2: Tapping Out Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

  Fig 3: Pressing In New Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bearing retainer with the 4 screws.
  Torque: 2.3 N*m (23 kgf*cm, 20 in.*lbf)

  Fig 4: Installing Bearing Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
