FRONT DRIVE SHAFT ASSEMBLY (for 4WD): Reassembly

1. Install the bearing bracket snap ring to the inboard shaft.
2. Using SST and a press, press in the drive shaft bearing to the inboard joint RH.
   Fig 1: Pressing In Drive Shaft Bearing To Inboard Joint RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   SST 09527-10011, 09710-04081

   NOTE: The bearing should be installed completely.
3. Using a snap ring expander, install a new drive shaft hole snap ring.
   Fig 2: Installing New Drive Shaft Hole Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

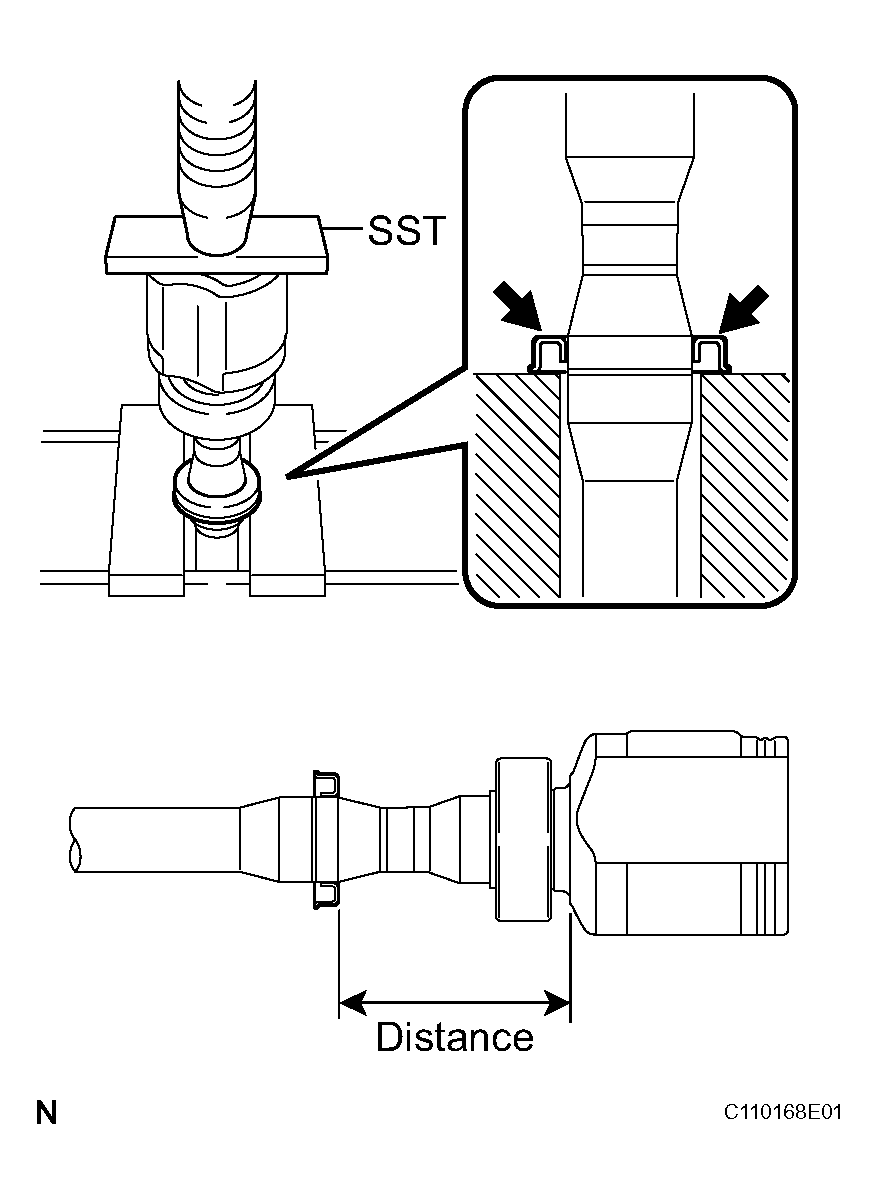

1. Using SST and a press, press in a new drive shaft dust cover until the distance from the tip of the center drive shaft to the drive shaft dust cover reaches the specification, as shown in the illustration.

   SST 09527-10011

   Standard distance:

   104 +-0.5 mm (4.09 +-0.02 in.)

   NOTE: Be careful not to damage the dust cover.
   Fig 3: Removing Front Drive Shaft Dust Cover RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

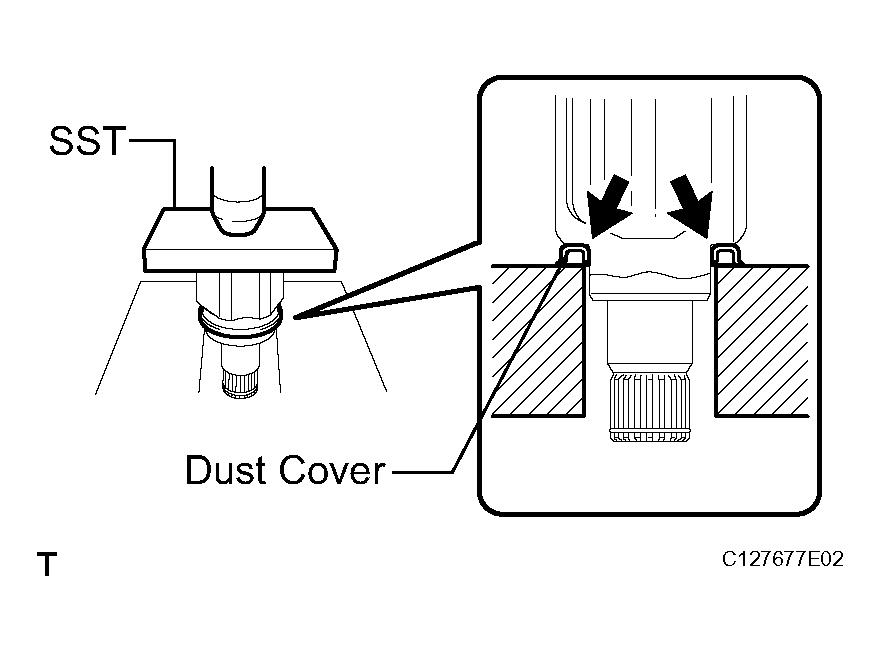

1. Using SST and a press, press in a new drive shaft dust cover.

   SST 09527-10011

   NOTE:

   • The dust cover should be installed so that the drive shaft contacts the dust cover at the location indicated by the arrows in the illustration.
   • Be careful not to damage the dust cover.

1. Install a new hole snap ring.
   Fig 4: Installing Front Drive Shaft Hole Snap Ring LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

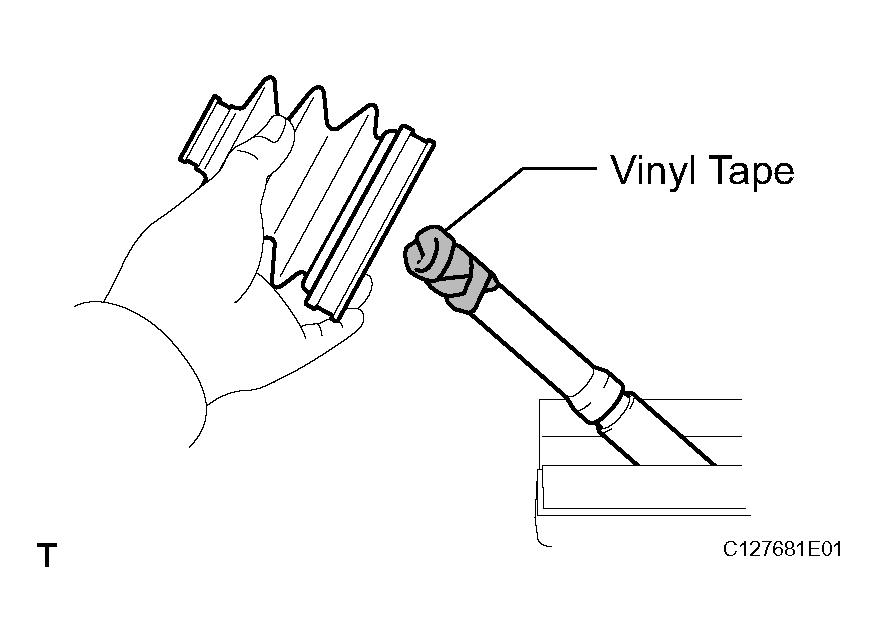

Before installing the boots, wrap the spline of the drive shaft with vinyl tape to prevent the boots from being damaged.

Fig 5: Wrapping Spline Of Drive Shaft With Vinyl Tape

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install new parts to the outboard joint shaft in the following order.
   1. Outboard joint boot No. 2 clamp
   2. Outboard joint boot
   3. Outboard joint boot clamp
2. Pack the outboard joint shaft and boot with grease from the boot kit.

   Standard grease capacity

   STANDARD GREASE CAPACITY



   Item	Grease capacity
   2AZ-FE	190 to 200 g (6.7 to 7.1 oz.)
   2GR-FE	205 to 215 g (7.2 to 7.6 oz.)

1. Install a new boot clamp to the outboard joint boot and temporarily bend the lever.
   Fig 6: Installing Front Axle Outboard Joint Boot No. 2 Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • When temporarily bending the lever, make sure not to deform the band and lever.
   • Set the clamp correctly in the guide groove and align it with the interior of the vehicle as much as possible.

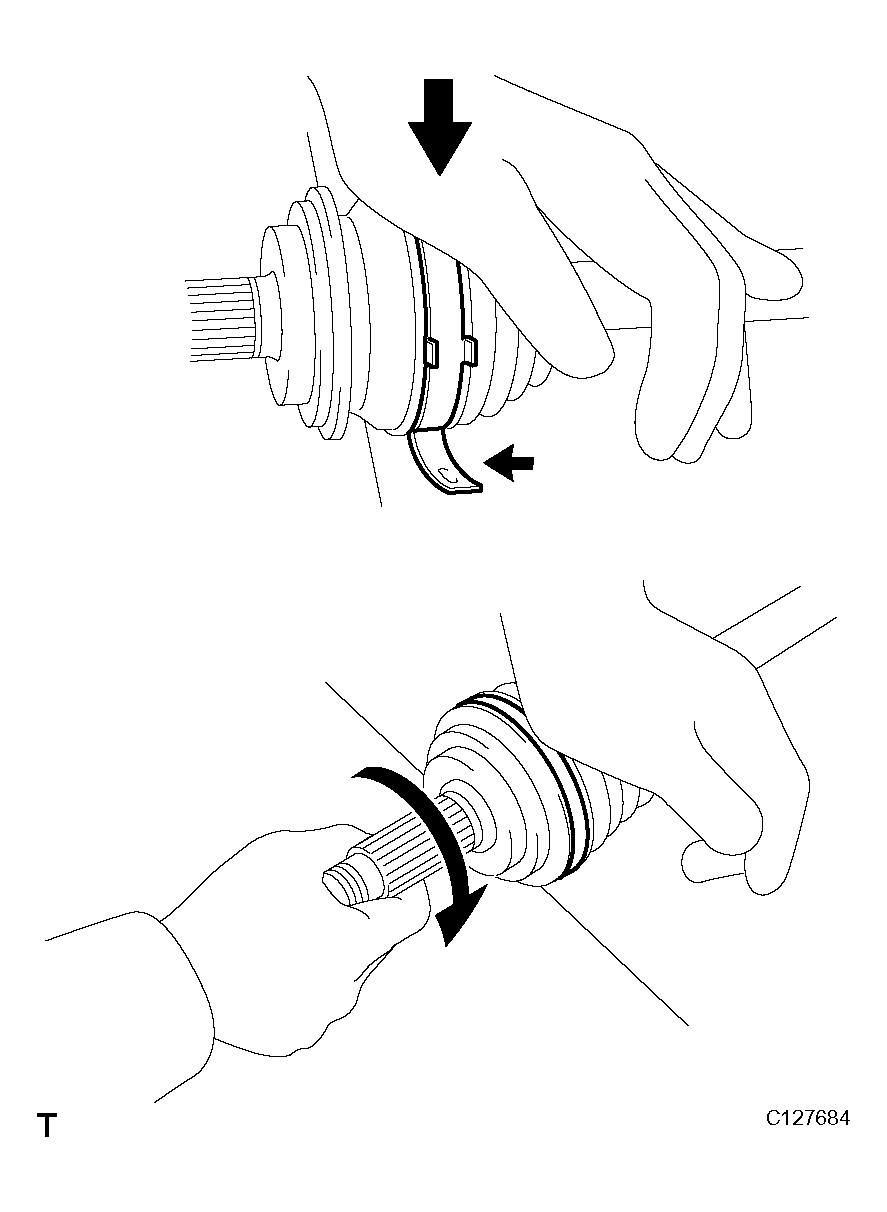

2. With the joint on the working surface, use your body weight to press down on the joint with one hand.

   Then, roll the joint forward, as shown in the illustration, and press the lever in until a "click" sound is heard.

   Fig 7: Rolling Joint Forward Over Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not damage the deflector.
   • Make sure the joint is in full contact with the joint surface at all times.

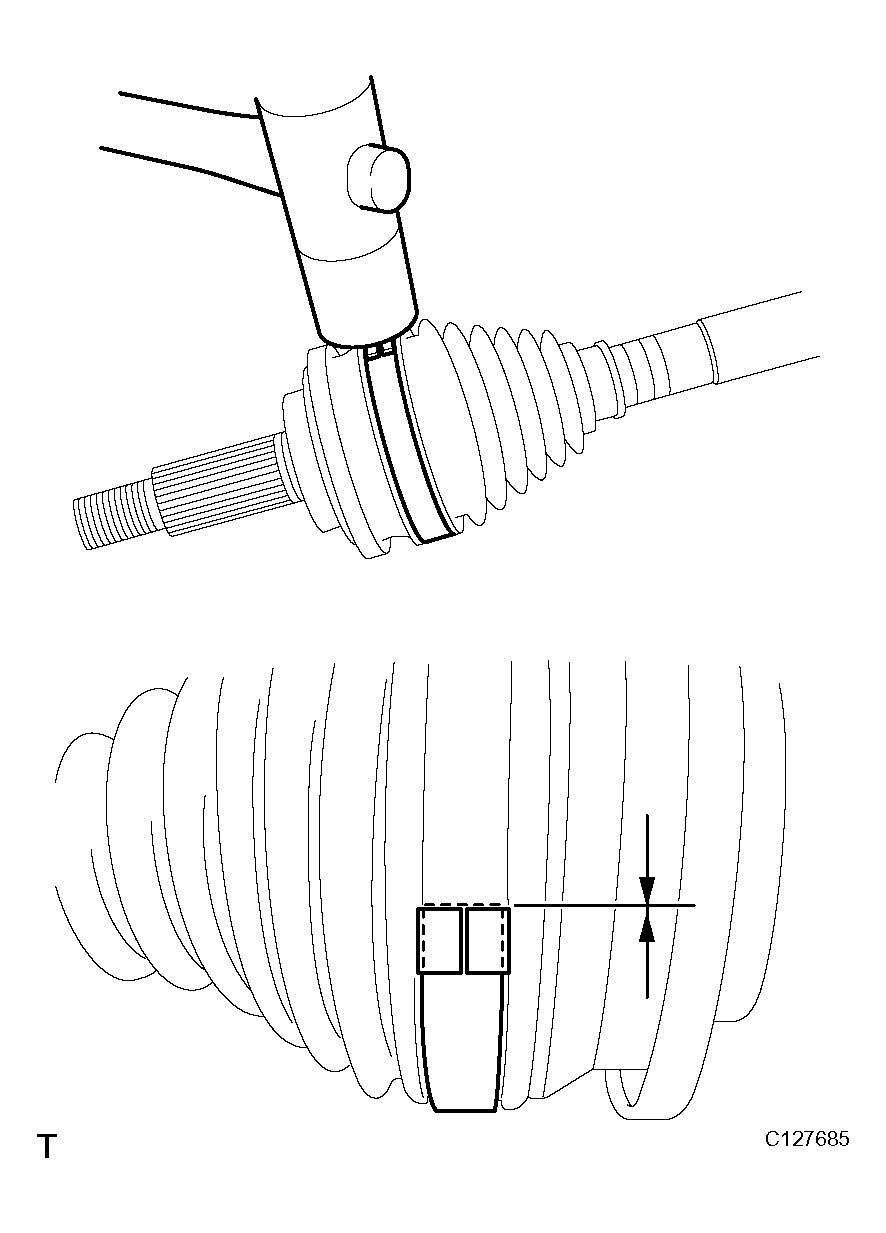

3. Using a plastic-faced hammer, fix the buckle into place by tapping it. At the same time, use the plastic-faced hammer to adjust the lift of the lever so that the gaps between the buckle flange and lever end flange become even.
   Fig 8: Using A Plastic-Faced Hammer, Fix Buckle Into Place By Tapping

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new boot clamp to the outboard joint boot and temporarily bend the lever.
   NOTE: When temporarily bending the lever, make sure not to deform the band and lever.
   Fig 9: Installing Front Axle Outboard Joint Boot Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

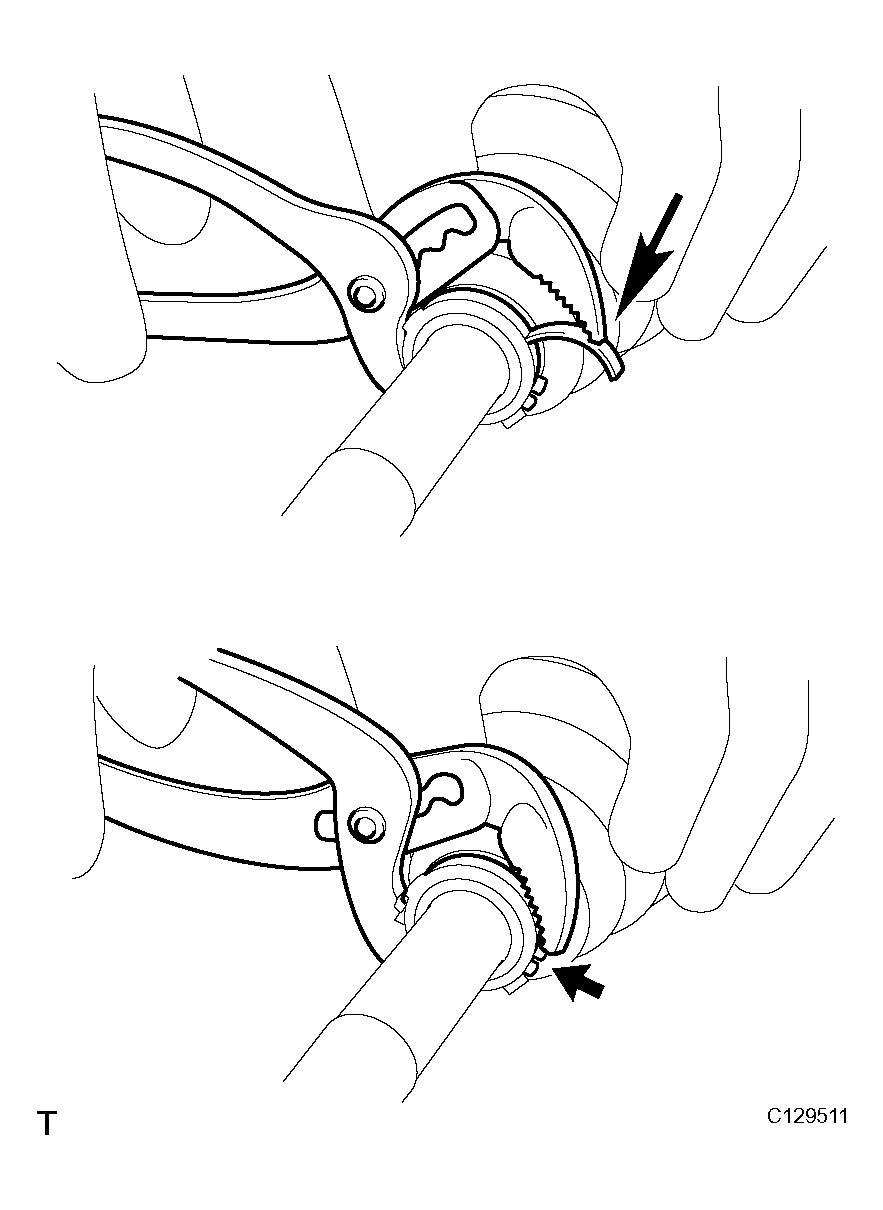

2. Using water pump pliers, temporarily lock the boot clamp by clamping it down until a "click" sound is heard.
   Fig 10: Locking Boot Clamp By Clamping

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

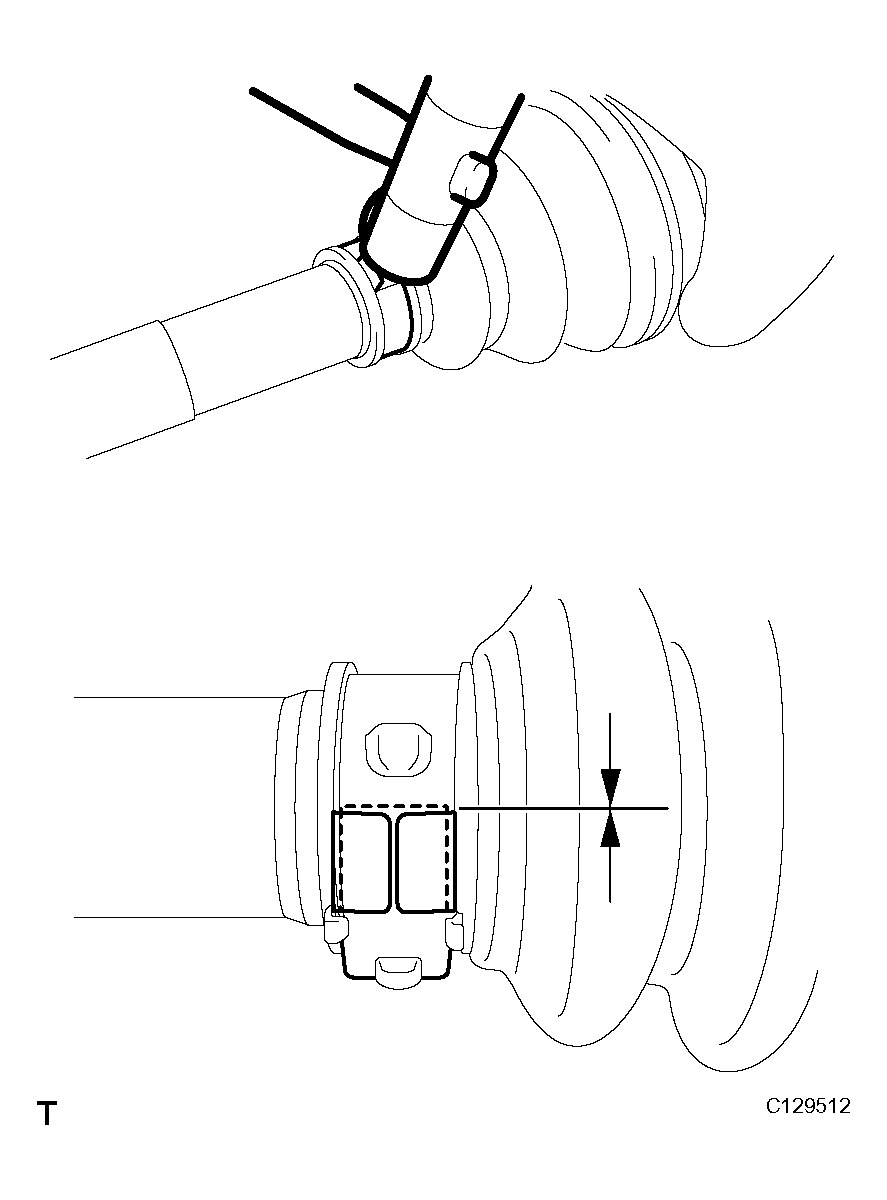

3. Using a plastic-faced hammer, fix the buckle into place by tapping it. At the same time, use the plastic-faced hammer to adjust the lift of the lever so that the gaps between the buckle flange and lever end flange become even.
   NOTE: Do not strike the drive shaft forcefully with the plastic-faced hammer.
   Fig 11: Using A Plastic-Faced Hammer, Fix Buckle Into Place By Tapping

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new drive shaft damper clamp and the drive shaft damper to the drive shaft.

   HINT:

   Install the damper clamp to the outboard joint side.

2. Set the distance, as described below.

   Standard distance:

   161 to 165 mm (6.339 to 6.496 in.)

   Fig 12: Installing Front Drive Shaft Damper LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

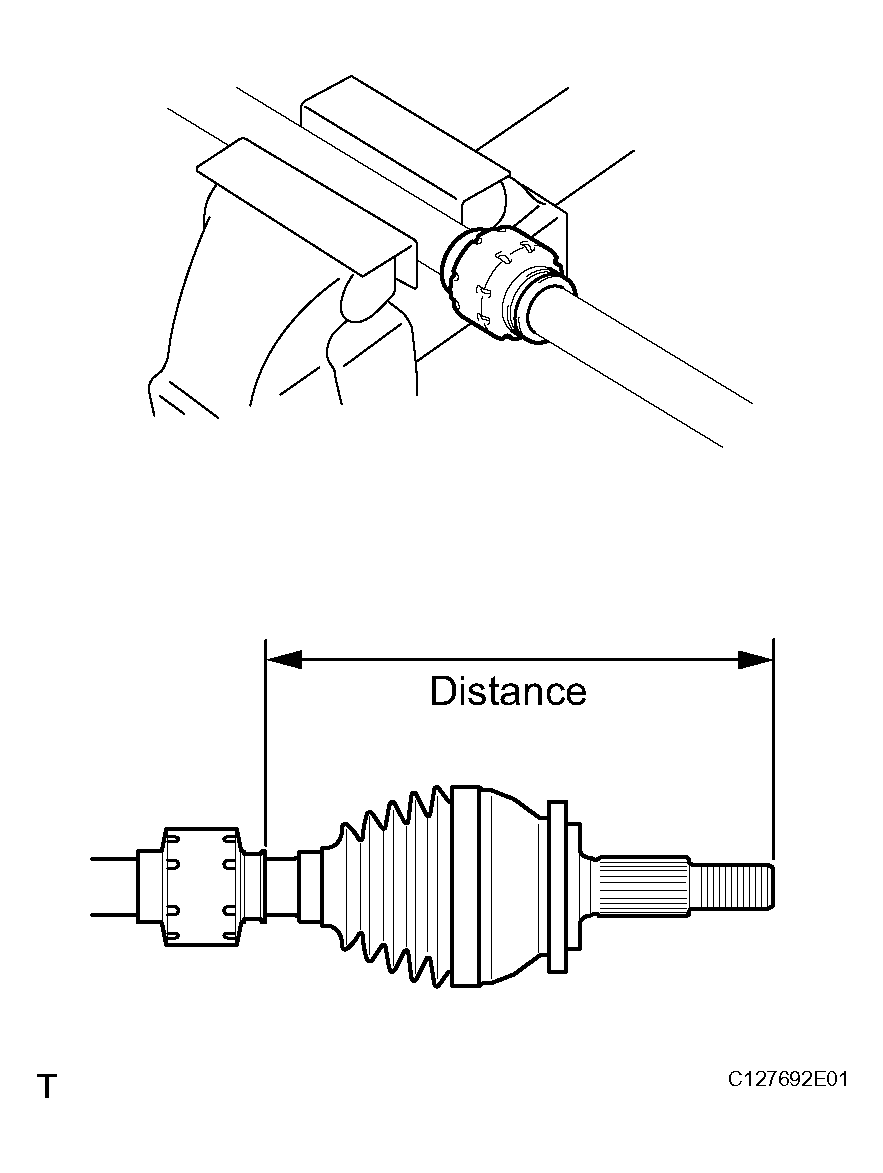

1. Hold the front drive shaft lightly in a soft vise.
2. Install the drive shaft damper clamp to the damper.
   NOTE: Be sure to install the clamp in the correct position.

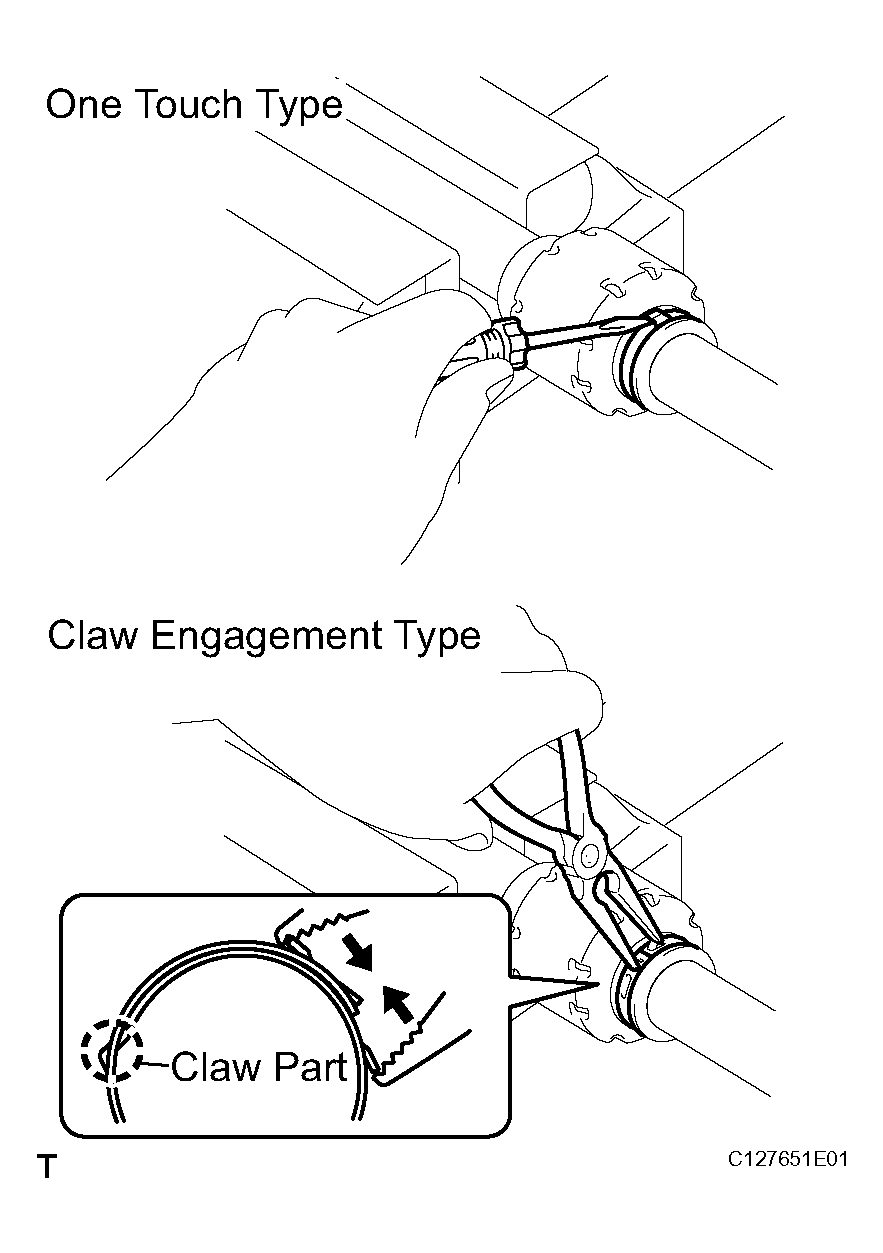

3. One touch type:

   Using a screwdriver, install the drive shaft damper clamp, as shown.

   Fig 13: Installing Front Drive Shaft Damper Clamp LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Claw engagement type:

   Using needle-nose pliers, install the drive shaft damper clamp, as shown in the illustration.

HINT:

Use the same procedures described for the LH side.

HINT:

Use the same procedures described for the LH side.

1. Wrap the spline of the outboard joint shaft with vinyl tape to prevent the boots from being damaged.
2. Install new parts to the outboard joint shaft in the following order.
   1. Inboard joint boot clamp
   2. Inboard joint boot No. 2 clamp
   3. Inboard joint boot
3. Place the beveled side of the tripod axial spline toward the outboard joint.
4. Align the matchmarks placed before removal.
5. Using a brass bar and hammer, tap the tripod joint onto the drive shaft.
   NOTE:

   • Do not tap the rollers.
   • Be sure to install the tripod joint in the correct direction.
6. Pack the inboard joint shaft and boot with grease from the boot kit.

   Standard grease capacity:

   175 to 185 g (6.2 to 6.5 oz.)

7. Using a snap ring expander, install a new shaft snap ring.
   Fig 14: Installing New Shaft Snap Ring Using Snap Ring Expander

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

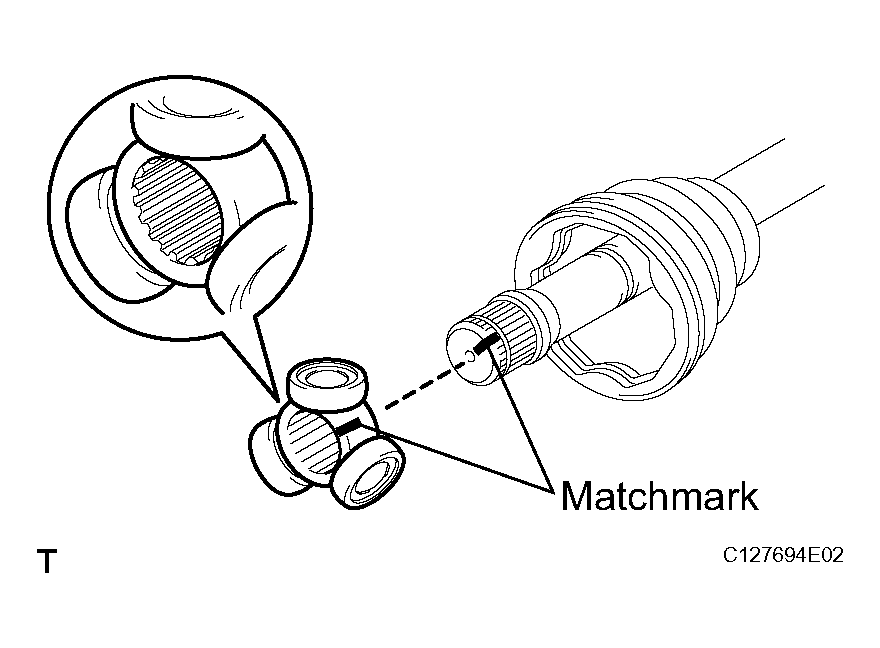

8. Align the matchmarks, and install the inboard joint to the outboard joint shaft.
   Fig 15: Aligning Matchmarks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

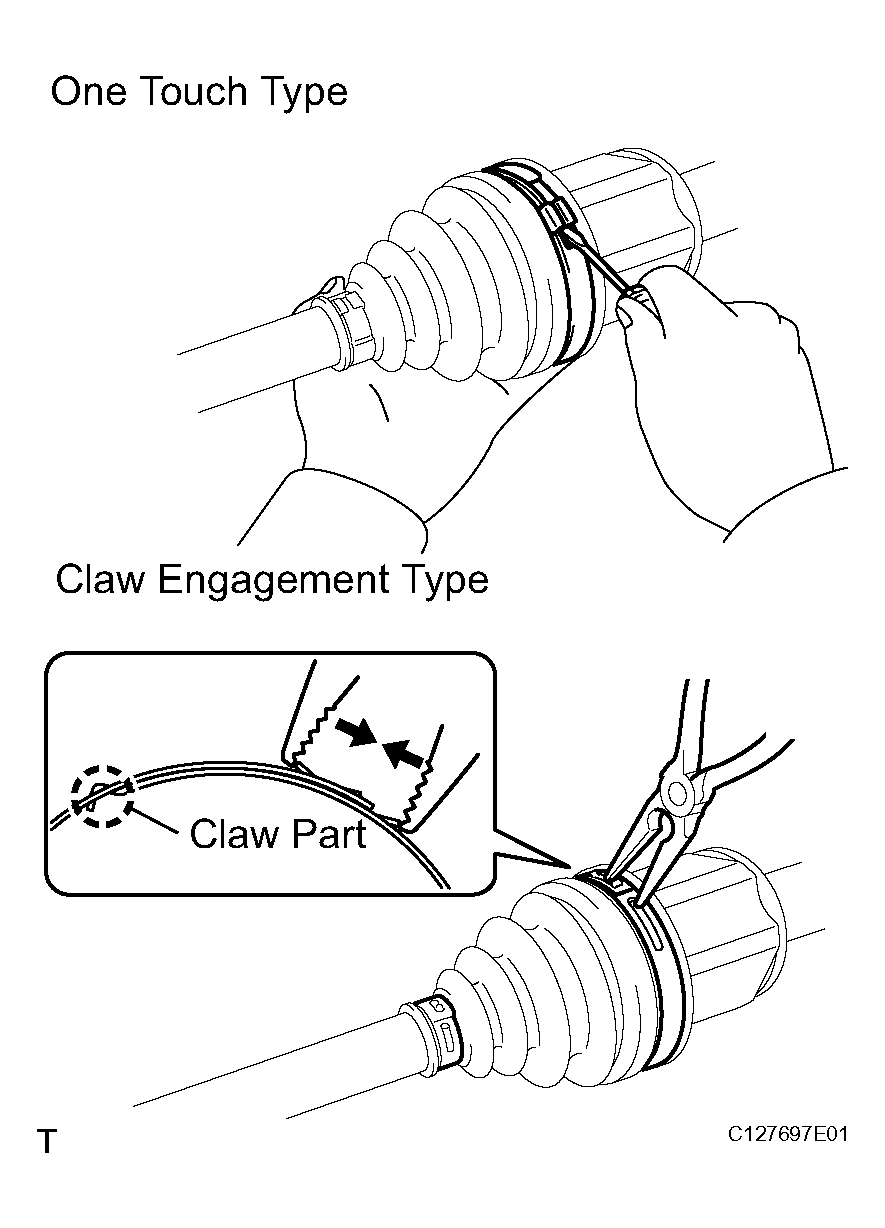

1. Install the inboard joint boot to the inboard joint.

1. One touch type:

   Using a screwdriver, install the inboard joint boot clamp, as shown in Fig 16.

   NOTE: Be careful not to damage the boot.
2. Claw engagement type:

   Using needle-nose pliers, install the inboard joint boot clamp, as shown.

   NOTE: Be careful not to damage the boot.
   Fig 16: Installing Front Axle Inboard Joint Boot Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

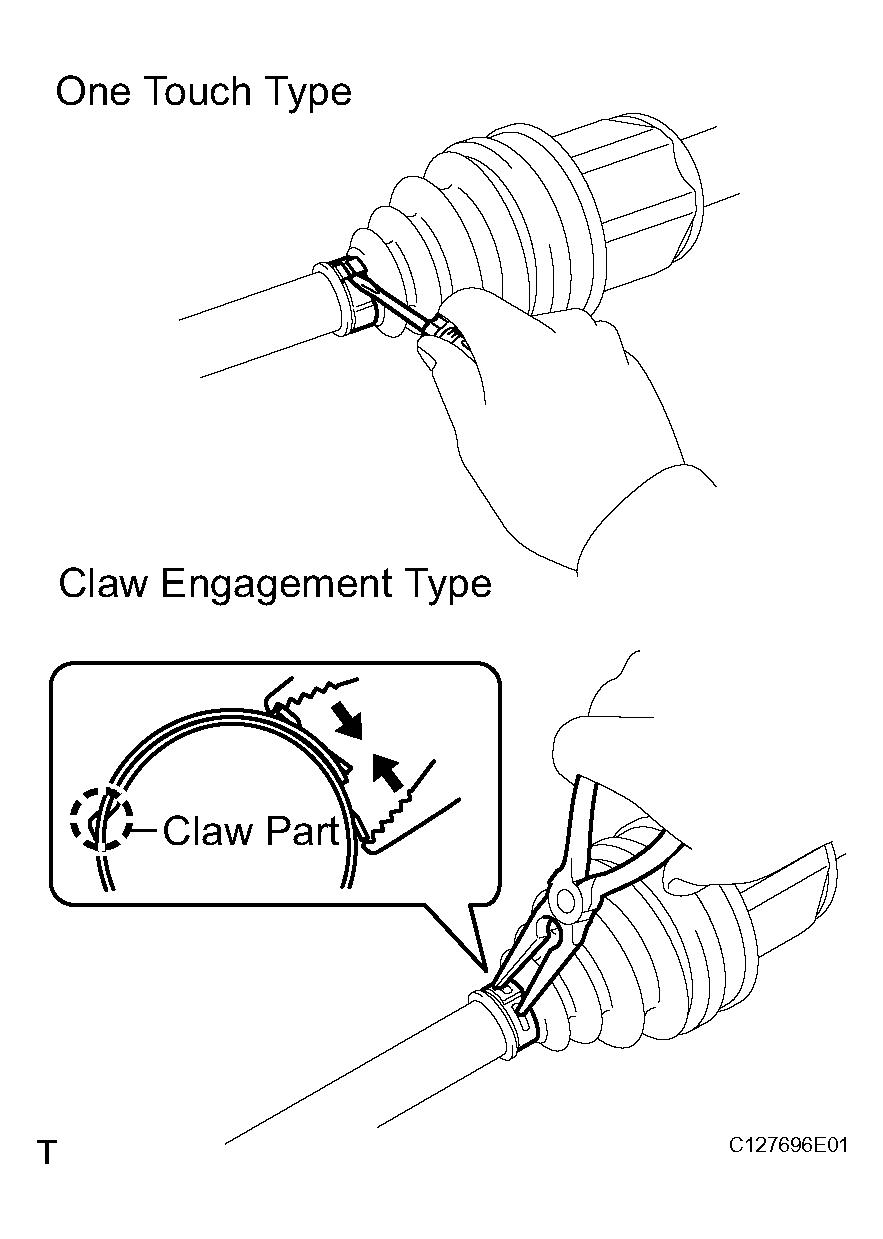

1. One touch type:

   Using a screwdriver, install the No. 2 inboard joint boot clamp, as shown in Fig 17.

   NOTE: Be careful not to damage the boot.
2. Claw engagement type:

   Using needle-nose pliers, install the No. 2 inboard joint boot clamp, as shown.

   NOTE: Be careful not to damage the boot.
   Fig 17: Installing Front Axle Inboard Joint Boot No. 2 Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that there is no severe play in the radial direction of the outboard joint.
2. Check that the inboard joint slides smoothly in the thrust direction.
3. Check that there is no severe play in the radial direction of the inboard joint.
   Fig 18: Inspecting Operation Of Front Drive Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the boots for damage.
   NOTE: Keep the drive shaft assembly level during inspection.

   HINT:

   For dimension (A), refer to the following values.

   Fig 19: Measuring Dimension (A)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard reference value

   STANDARD REFERENCE VALUE



   Item	Drive shaft LH (Dimension)	Drive shaft RH (Dimension)
   2AZ-FE	585.2 mm (23.039 in.)	893.9 mm (35.193 in.)
   2GR-FE	570.9 mm (22.476 in.)	922.4 mm (36.315 in.)
