FRONT DRIVE SHAFT ASSEMBLY (for 4WD): Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

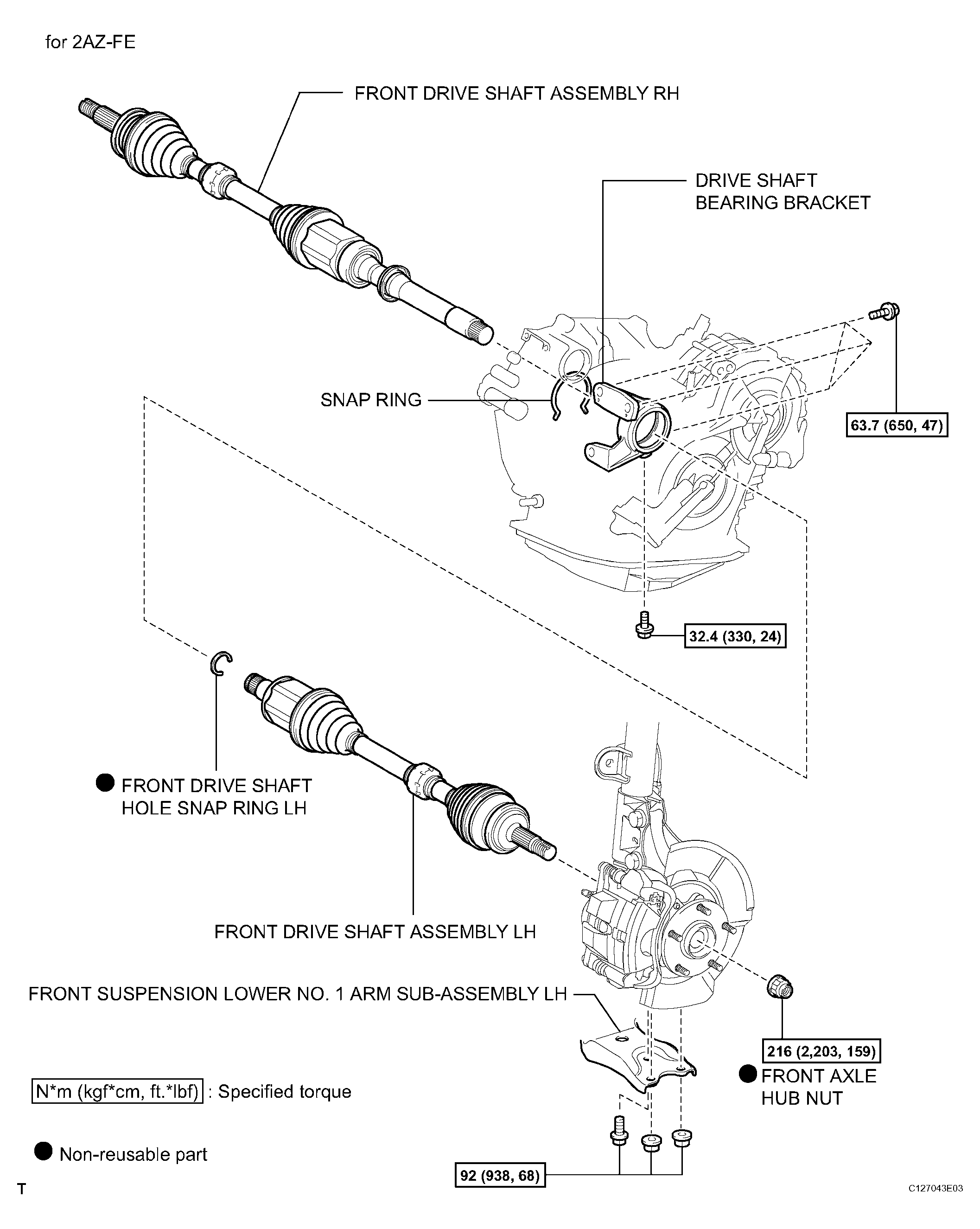

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (4WD) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

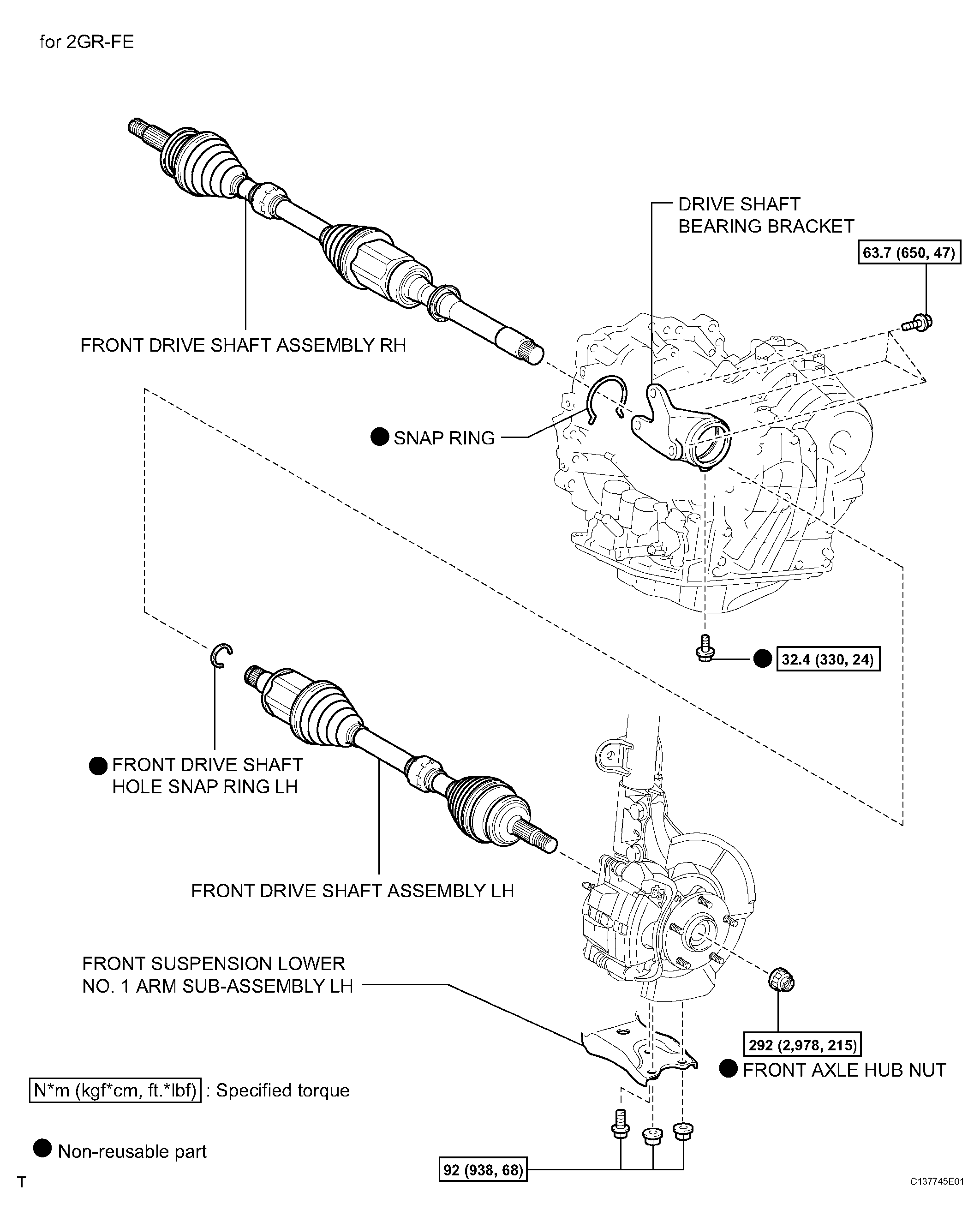

Fig 2: Front Drive Shaft Assembly Replacement Components With Torque Specifications (4WD) (2 Of 2)

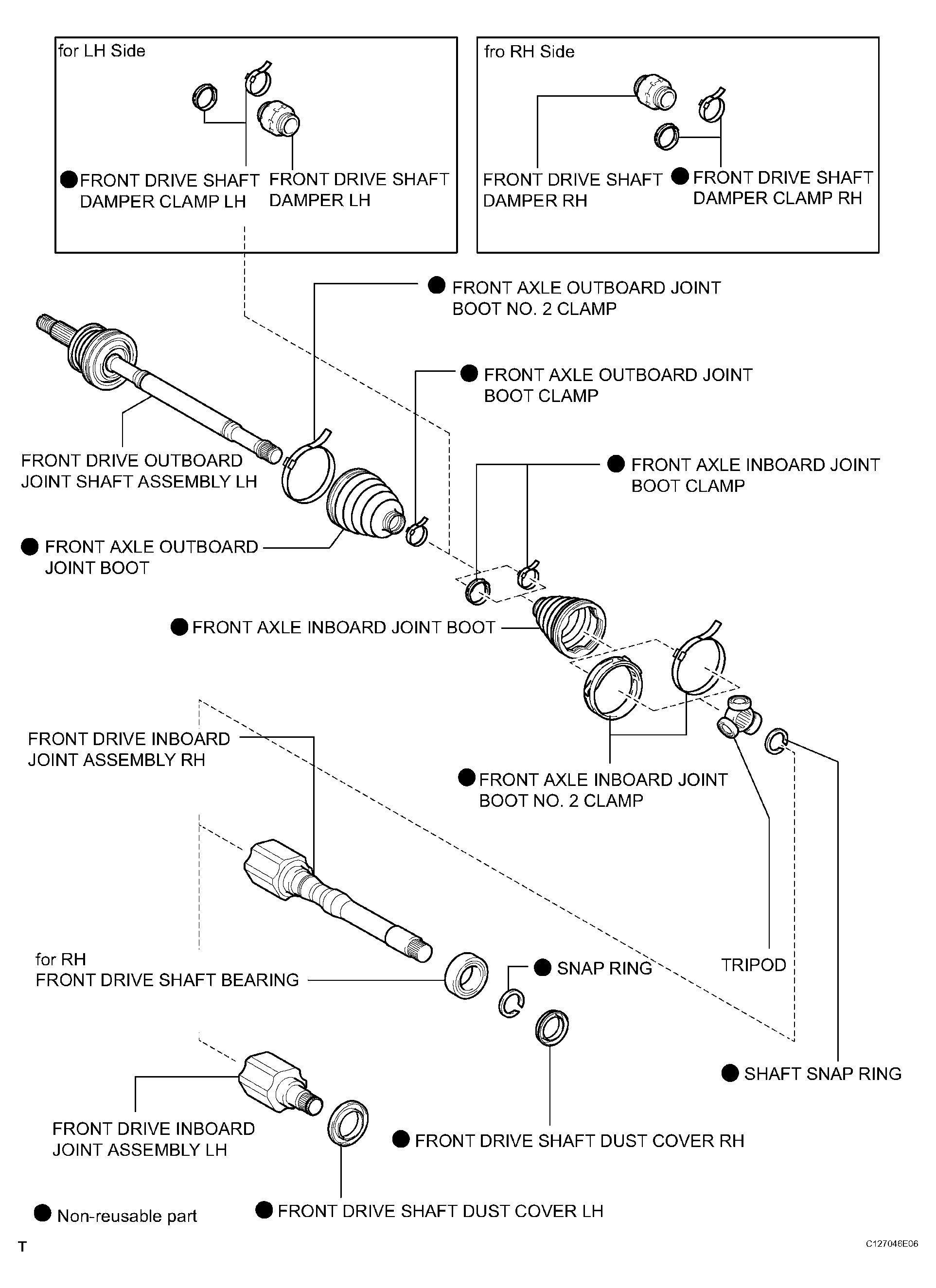

Fig 3: Identifying Front Drive Shaft Assembly Components (4WD)
