Rear Differential Side Gear Shaft Oil Seal: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

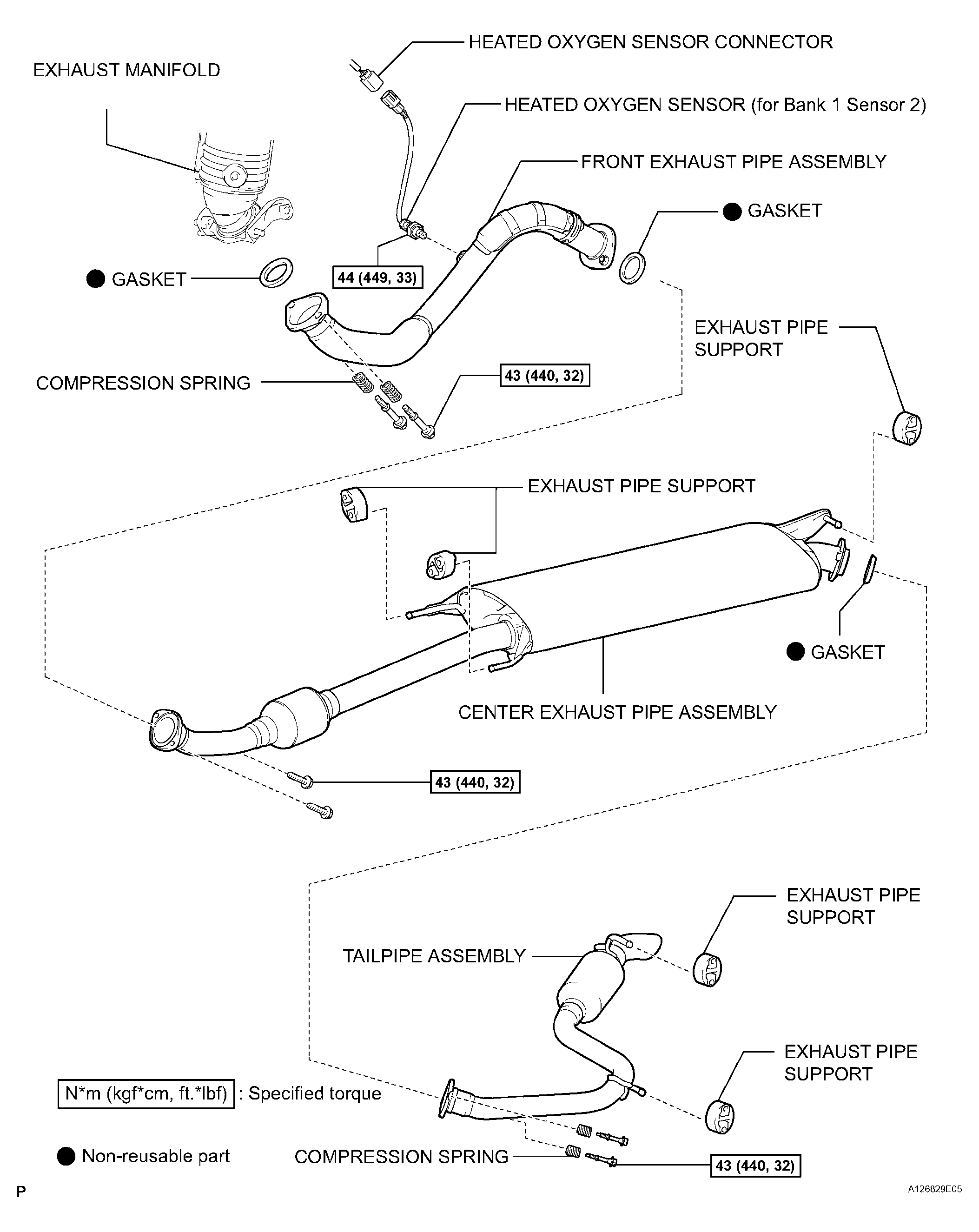

Fig 1: Exhaust System Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

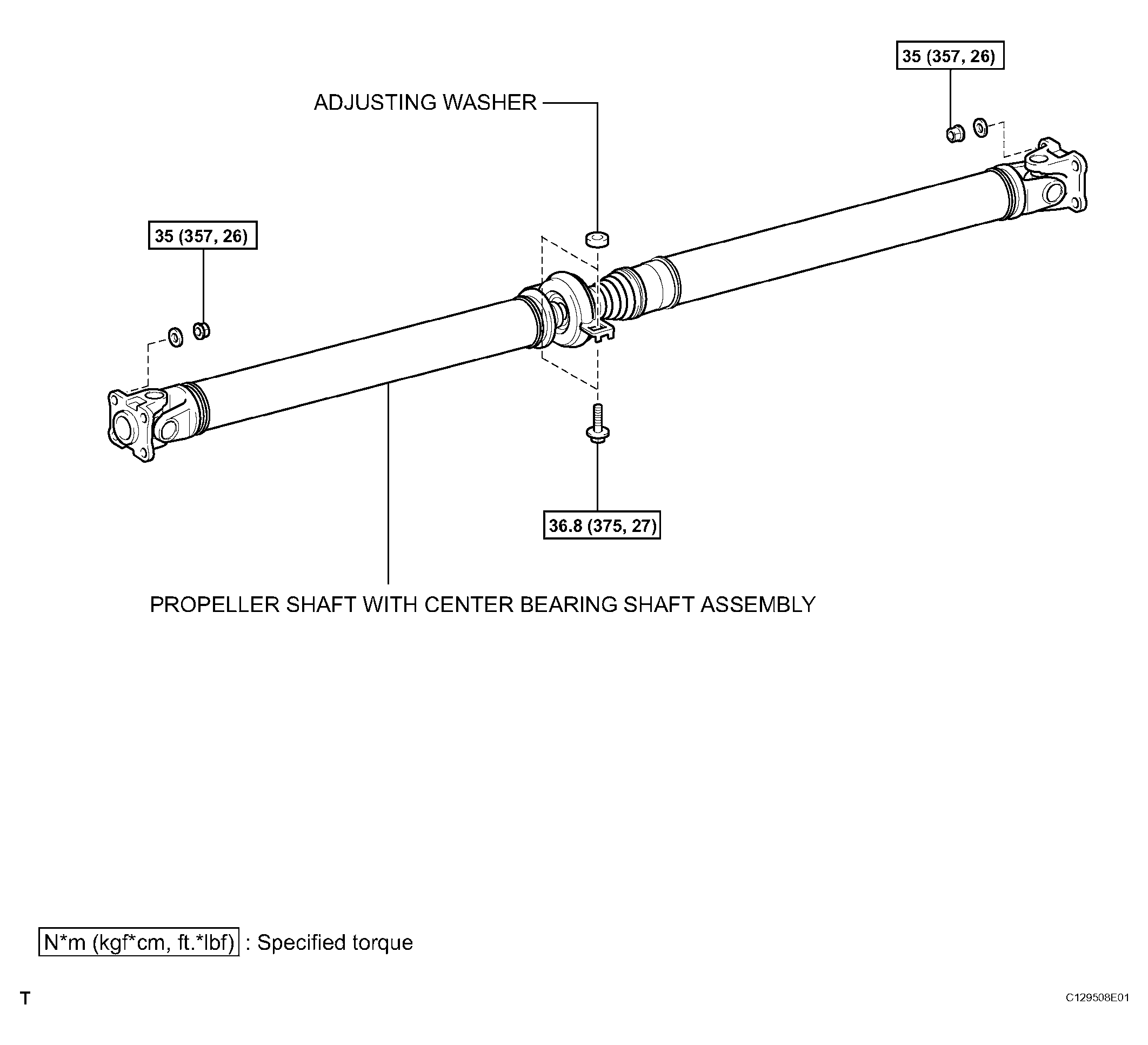

Fig 2: Propeller Shaft Replacement Components With Torque Specifications

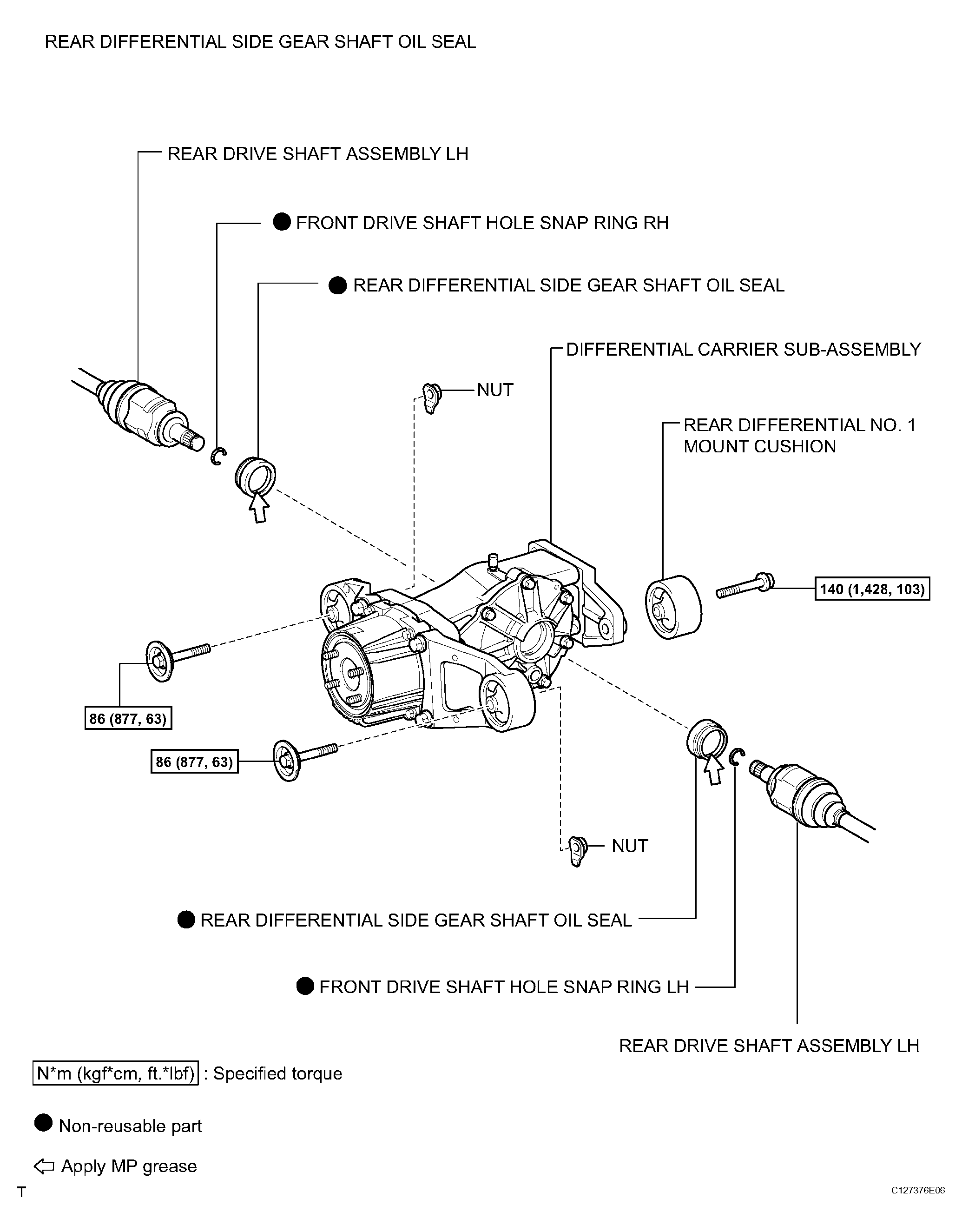

Fig 3: Rear Differential Replacement Components With Torque Specifications
