Rear Differential Carrier Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

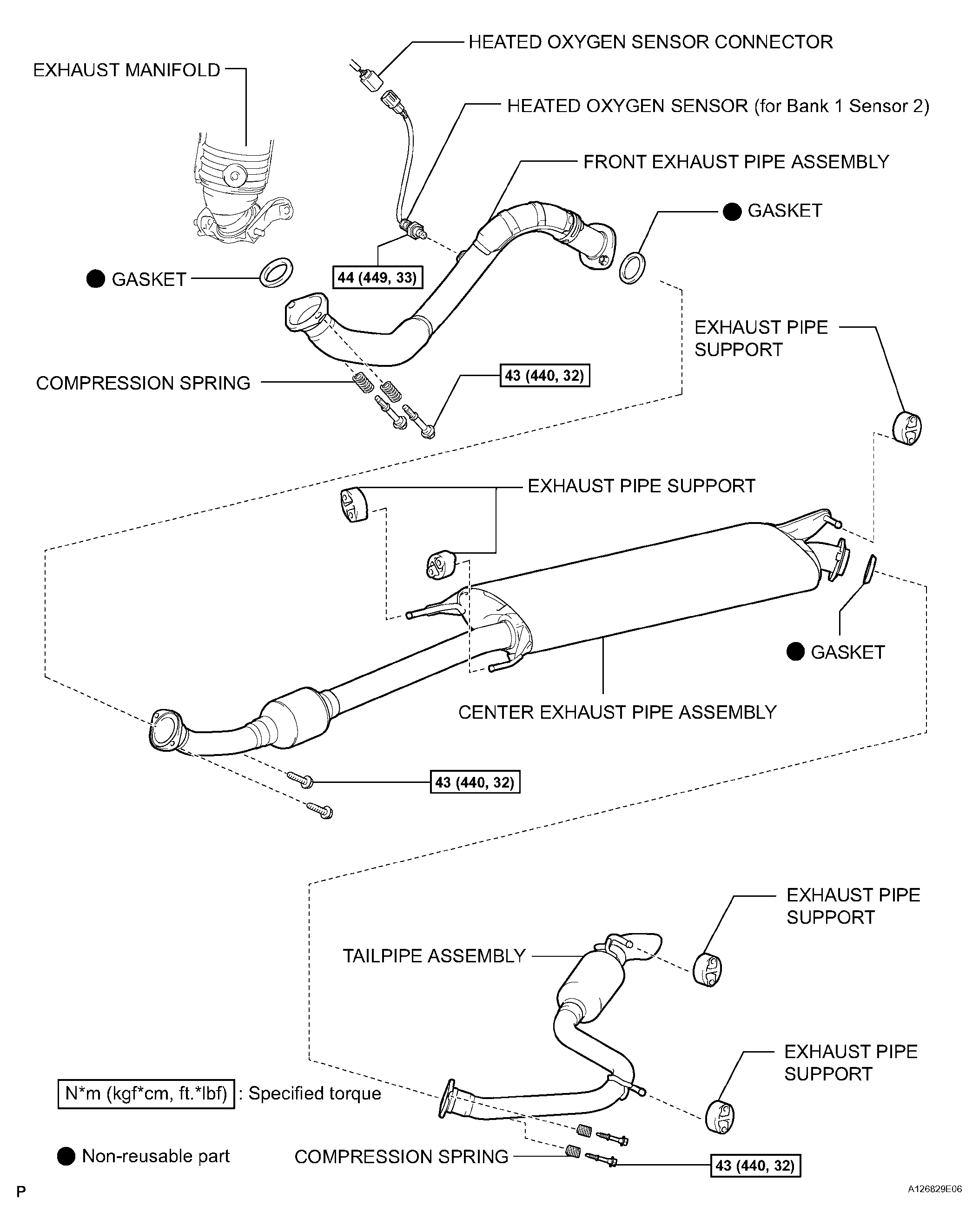

Fig 1: Exhaust System Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

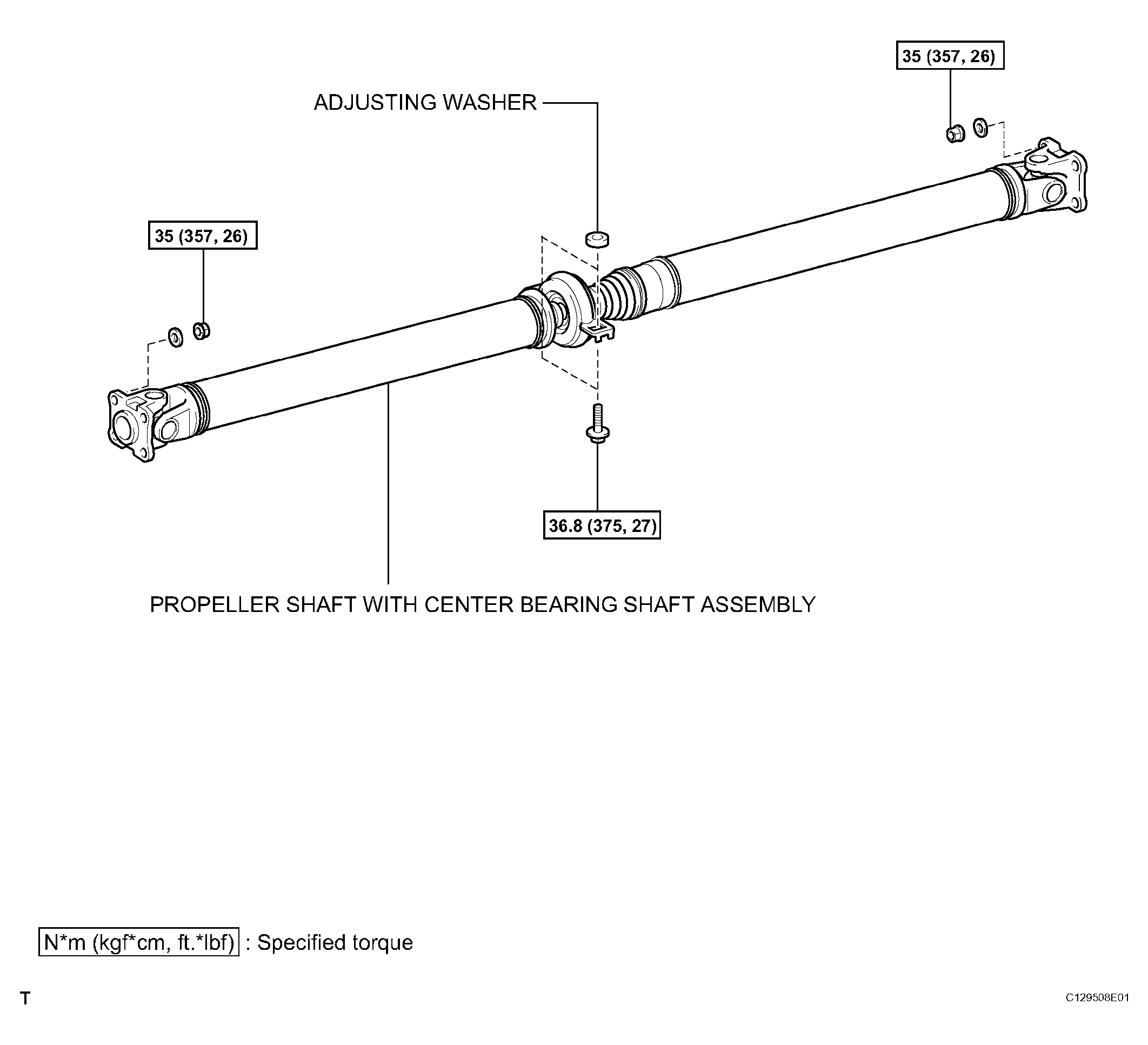

Fig 2: Propeller Shaft Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

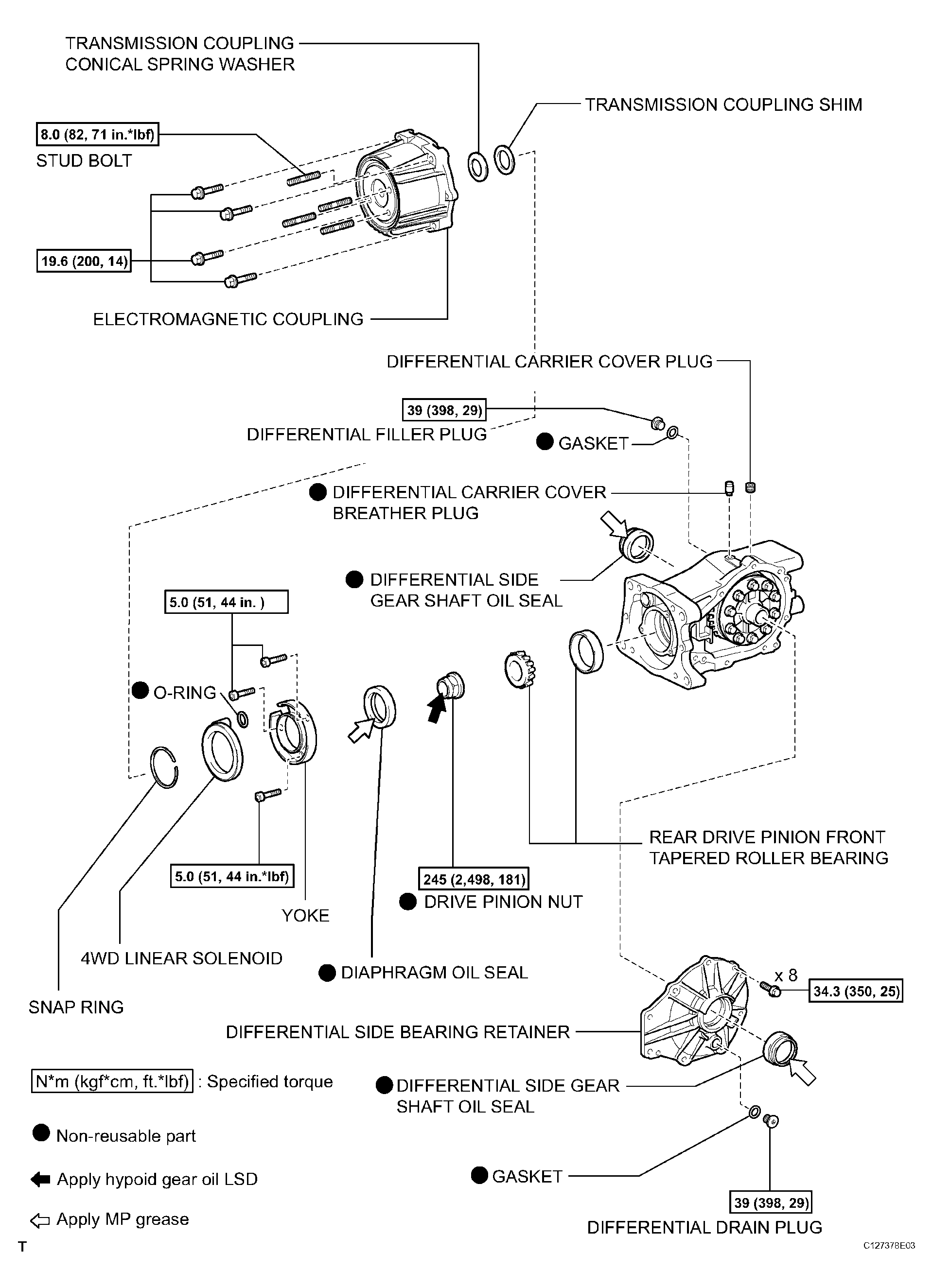

Fig 3: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

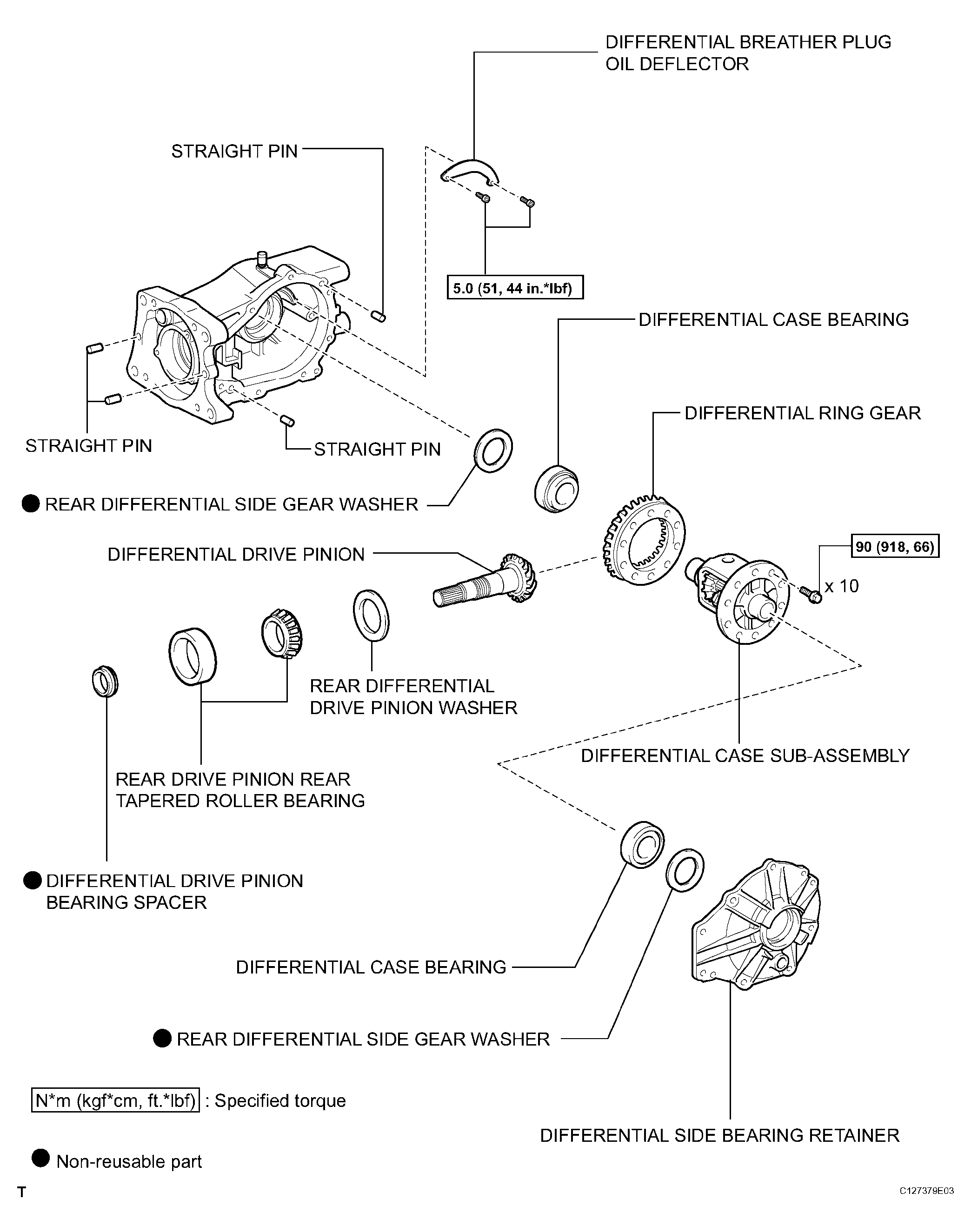

Fig 4: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 4)

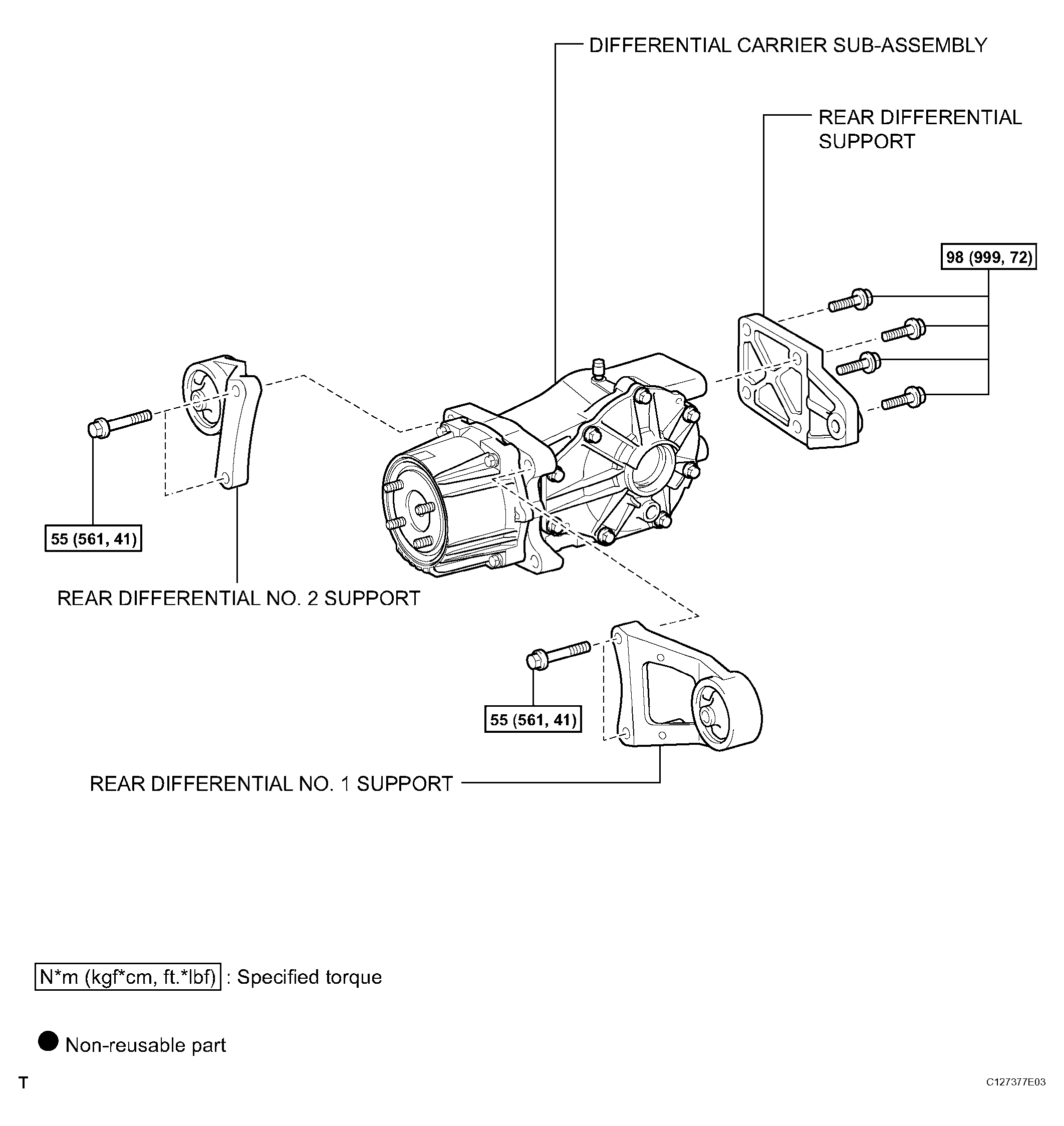

Fig 5: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (3 Of 4)

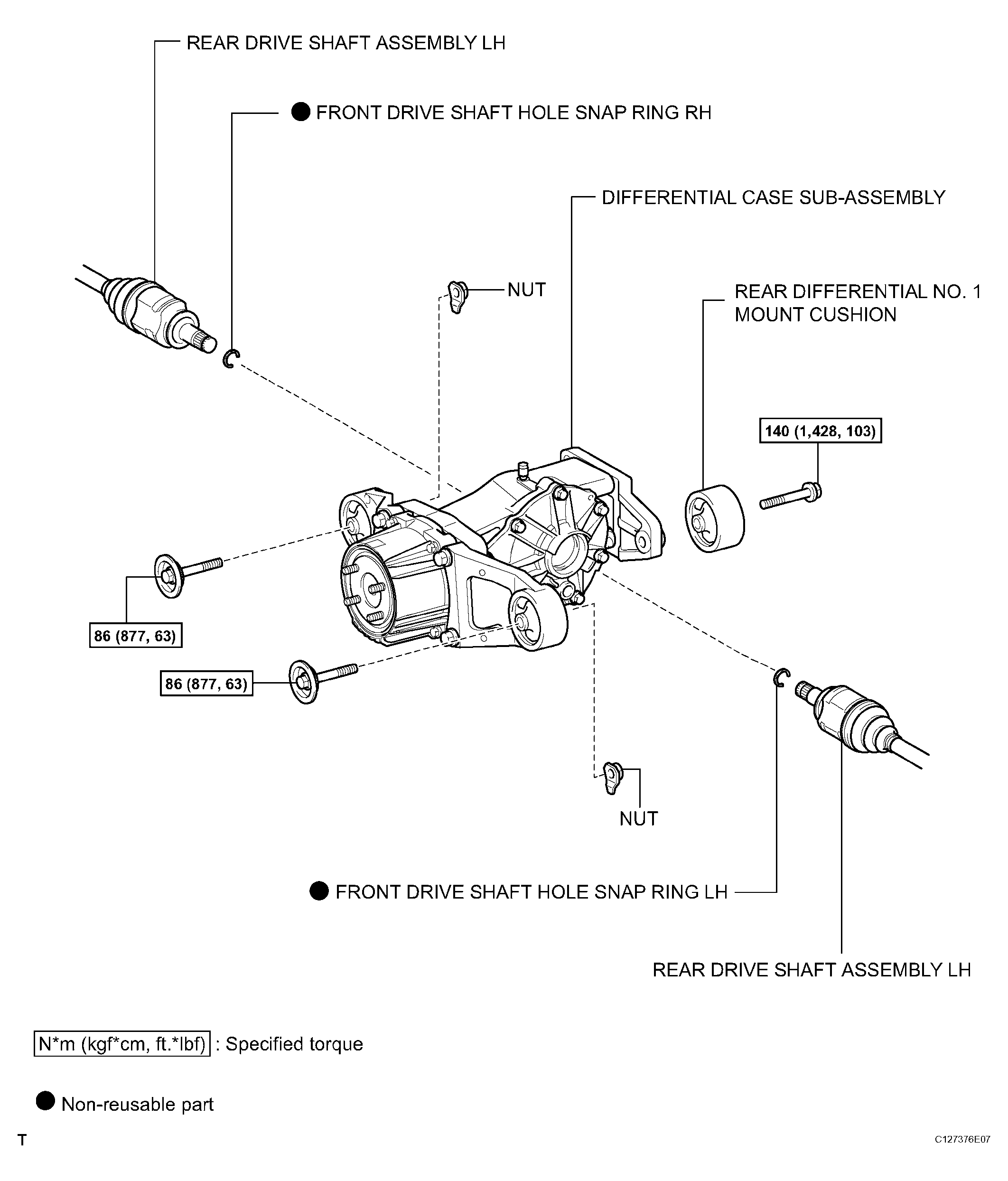

Fig 6: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (4 Of 4)
