Diaphragm Oil Seal: Installation
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL DIAPHRAGM OIL SEAL
- Apply a light coat of MP grease No. 2 to the lip of a new diaphragm oil seal.

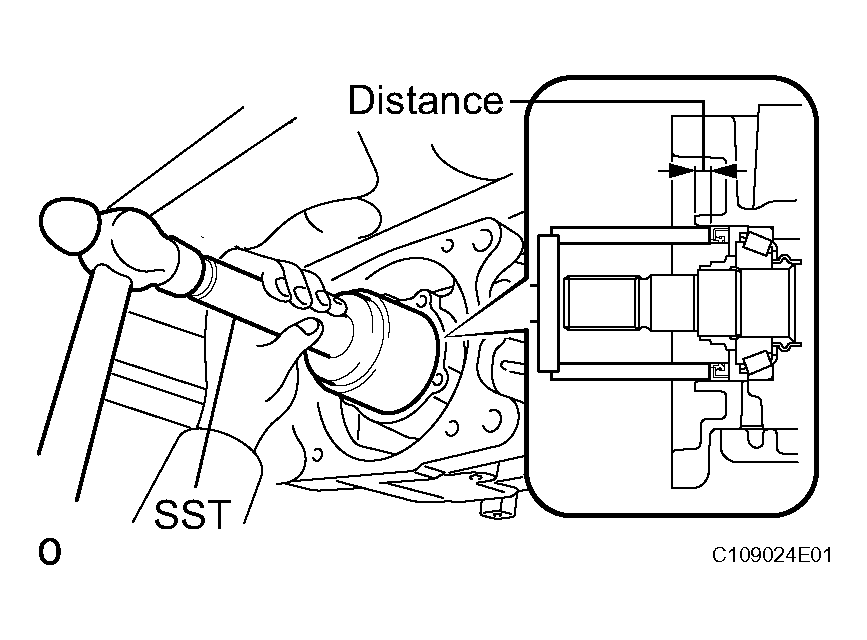

- Using SST and a hammer, tap the diaphragm oil seal into the rear differential carrier according to the specification.
SST 09710-30021 (09710-03121), 09950-60010 (09951-00570), 09950-70010 (09951-07100)
Standard distance: 7.0 +-0.5 mm (0.28 +-0.02 in.)
- INSTALL TRANSMISSION COUPLING SHIM (See INSTALLATION )
- INSTALL TRANSMISSION COUPLING CONICAL SPRING WASHER (See INSTALLATION )
- INSTALL YOKE (See INSTALLATION )
- INSTALL 4WD LINEAR SOLENOID (See INSTALLATION )
- INSTALL ELECTROMAGNETIC COUPLING (See INSTALLATION )
- TEMPORARILY INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (See INSTALLATION )
- FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (See appropriate steps under INSTALLATION )
- INSPECT AND ADJUST JOINT ANGLE (See INSPECTION )
- ADD DIFFERENTIAL OIL
- Add differential oil (see DIFFERENTIAL OIL ).
- CHECK FOR DIFFERENTIAL OIL LEAKAGE
If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.
