Transfer Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

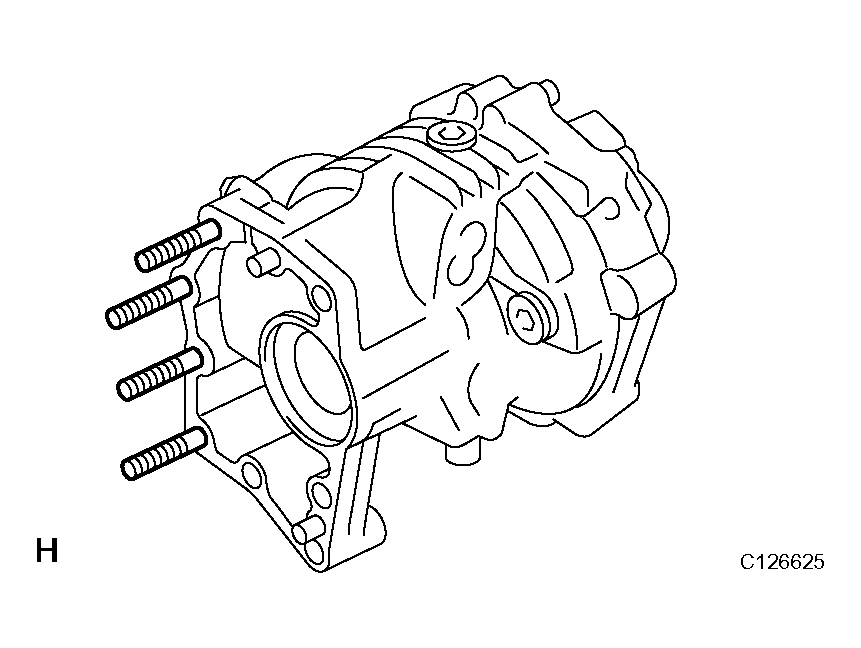

REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT
1. Remove the stud bolt.

  Fig 1: Removing Setting Stud Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CASE STRAIGHT PIN
1. Remove the 2 straight pins.
REMOVE TRANSFER CASE NO. 1 PLUG
1. Remove the No. 1 plug.
2. Remove the gasket from the No. 1 plug.

  Fig 2: Removing 2 Straight Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CASE NO. 2 PLUG
1. Remove the No. 2 plug.
2. Remove the gasket from the No. 2 plug.

  Fig 3: Removing Transfer Case No. 2 Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER DRAIN PLUG
1. Remove the drain plug.
2. Remove the gasket from the drain plug.

  Fig 4: Removing Transfer Drain Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CASE OIL SEAL LH
1. Using SST, tap out the oil seal from the case.
  SST 09308-00010

  NOTE: Do not damage the oil seal lip.

  Fig 5: Removing Transfer Case Oil Seal LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CASE OIL SEAL RH
1. Using SST, tap out the oil seal from the case.
  SST 09308-00010

  NOTE: Do not damage the oil seal lip.

  Fig 6: Removing Transfer Case Oil Seal RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

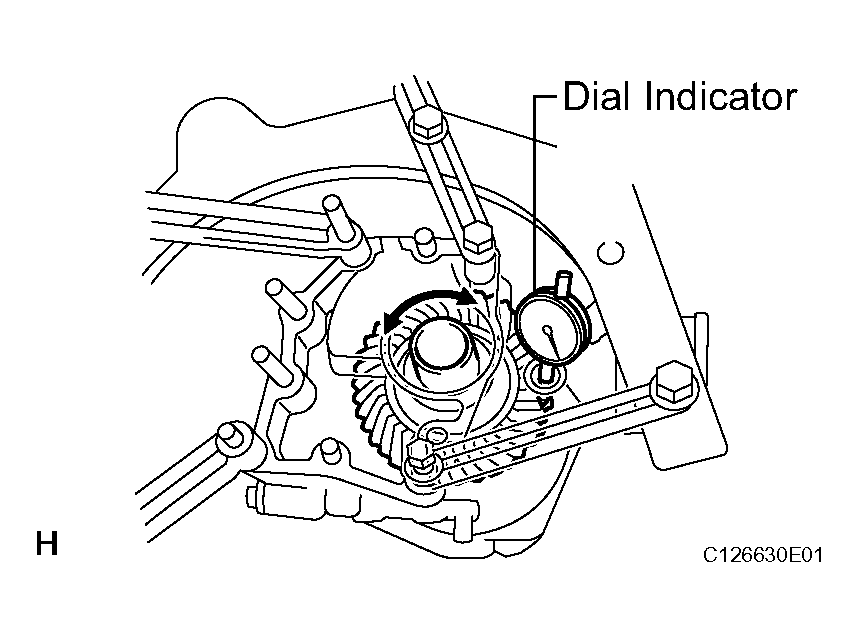

INSPECT RING GEAR BACKLASH
1. Using a dial indicator, measure the backlash of the ring gear at 3 points.
  Standard backlash: 0.10 to 0.20 mm (0.0039 to 0.0079 in.)

  If the backlash is not within the specified range, adjust the backlash or repair as necessary.

  Fig 7: Measuring Backlash Of Ring Gear Using Dial Indicator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 TRANSFER CASE COVER
1. Remove the 8 bolts.

  Fig 8: Removing 8 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and hammer, tap out the cover from the case.

  Fig 9: Removing No. 1 Transfer Case Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER RING GEAR
1. Remove the ring gear from the transfer case.
REMOVE TRANSFER CASE STRAIGHT PIN
1. Remove the 2 straight pins from the transfer case.

  Fig 10: Removing Ring Gear From Transfer Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER OUTPUT SHAFT
1. Remove the 5 bolts and output shaft.

  Fig 11: Removing Transfer Output Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, unstake the lock nut.
  SST 09930-00010
3. Remove the lock nut.

  Fig 12: Removing Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER OUTPUT REAR SHAFT SUB-ASSEMBLY
1. Using SST and a press, press out the shaft from the driven pinion.
  SST 09950-00020, 09950-60010 (09951-00220), 09950-70010 (09951-07100)

  Fig 13: Removing Transfer Output Rear Shaft Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

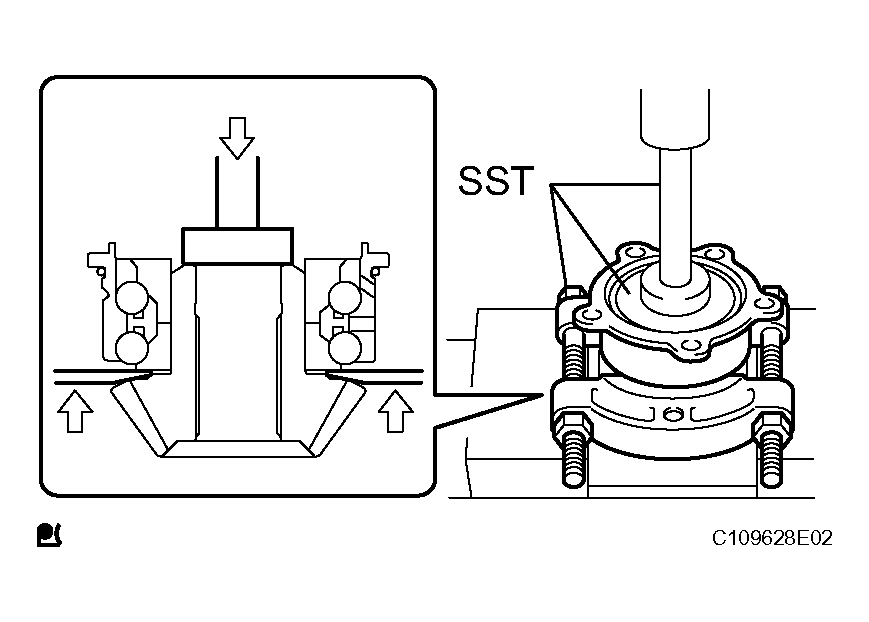

REMOVE TRANSFER DRIVEN PINION FRONT BEARING
1. Using SST and a press, press out the driven pinion from the bearing.
  SST 09950-00020, 09950-60010 (09951-00220), 09950-70010 (09951-07100)

  Fig 14: Removing Transfer Driven Pinion Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the bearing.

  Fig 15: Removing O-Ring From Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER OUTPUT SHAFT WASHER
1. Remove the washer from the transfer pinion gear.

  Fig 16: Removing Washer From Transfer Pinion Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

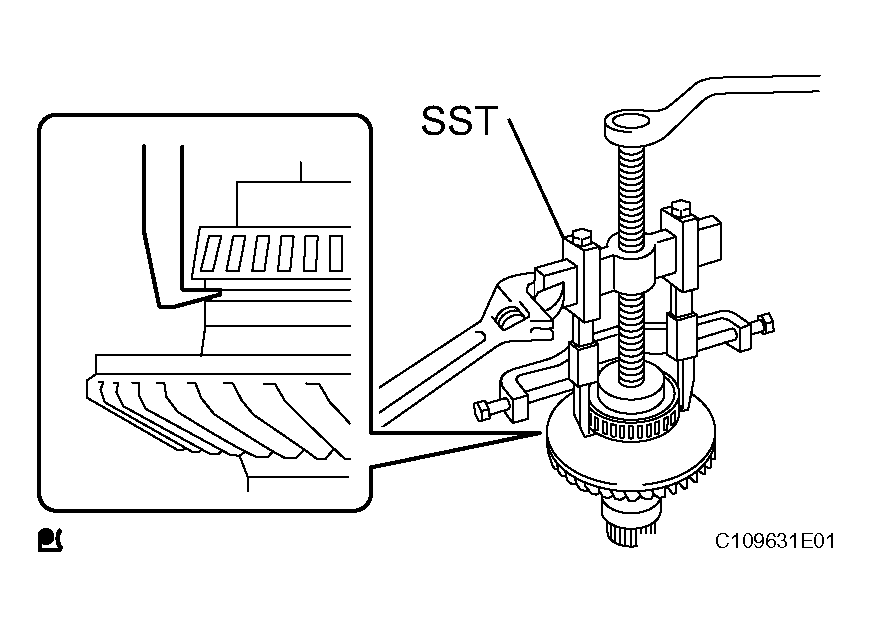

REMOVE RING GEAR MOUNTING CASE BEARING (for LH side)
1. Using SST, remove the bearing from the mounting case.
  SST 09950-40011 (09951-04010, 09952-04010, 09953-04030, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00540)

  Fig 17: Removing Ring Gear Mounting Case Bearing (For LH Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the bearing.
  SST 09310-35010
REMOVE RING GEAR MOUNTING CASE WASHER

Fig 18: Removing Ring Gear Mounting Case Washer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RING GEAR MOUNTING CASE BEARING (for RH side)
1. Using SST, remove the bearing from the mounting case.
  SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00540)
2. Using SST and a hammer, tap out the bearing (race) from the cover.
  SST 09636-20010

  Fig 19: Removing Bearing From Mounting Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER RING GEAR MOUNTING CASE NO. 2 WASHER
REMOVE SHAFT SNAP RING
1. Using a snap ring expander, remove the snap ring.

  Fig 20: Removing Snap Ring Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER RING GEAR MOUNTING CASE
1. Using SST and a press, press out the ring gear from the mounting case.
  SST 09950-60010 (09951-00400)

  Fig 21: Removing Transfer Ring Gear Mounting Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BREATHER OIL DEFLECTOR
1. Remove the 2 bolts and oil deflector.

  Fig 22: Removing 2 Bolts And Oil Deflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER CASE BREATHER PLUG
1. Remove the breather plug from the transfer case.

  Fig 23: Removing Breather Plug From Transfer Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
