Transfer Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

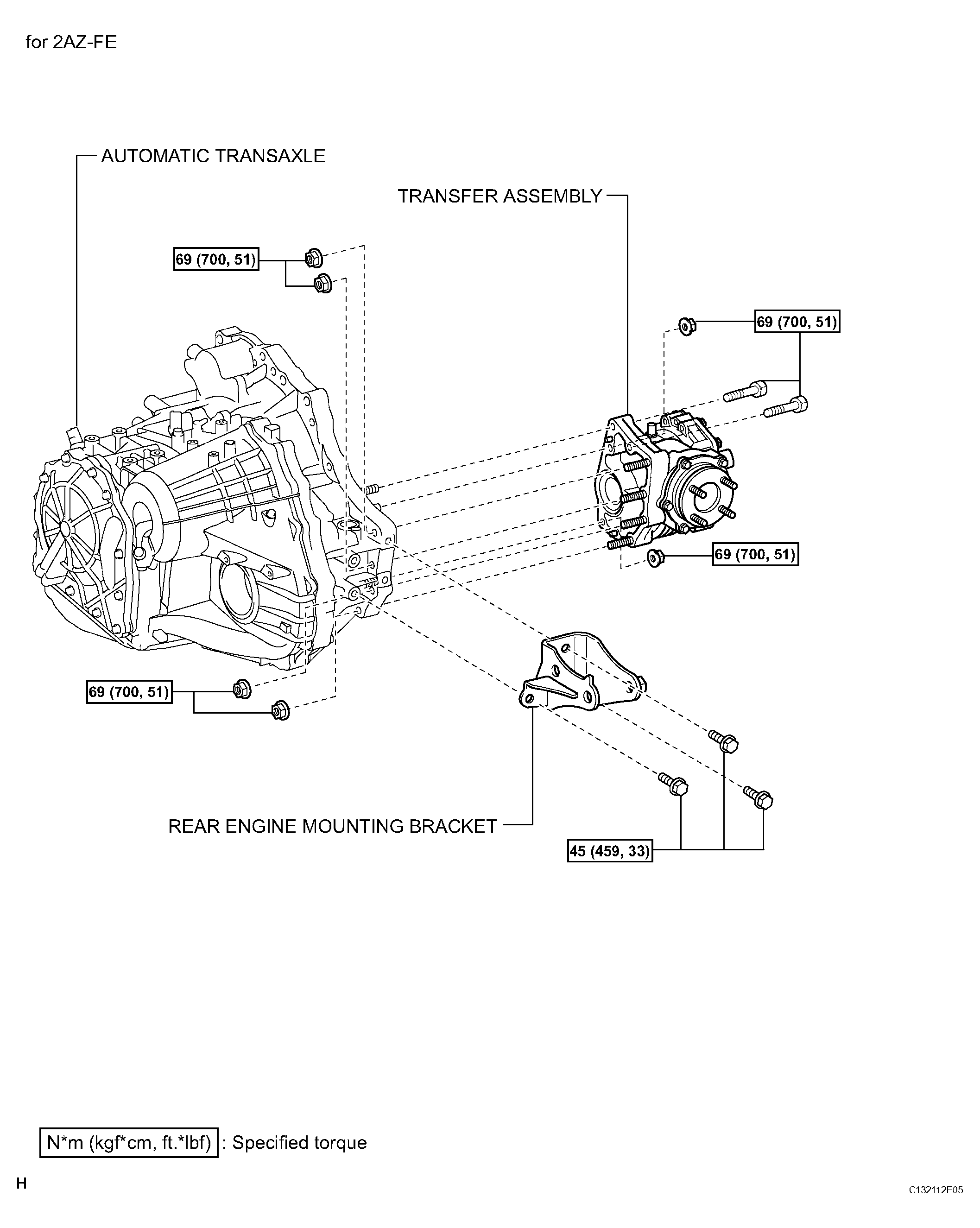

Fig 1: Transfer Assembly Replacement Components With Torque Specifications - 2AZ-FE (2006/01- )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

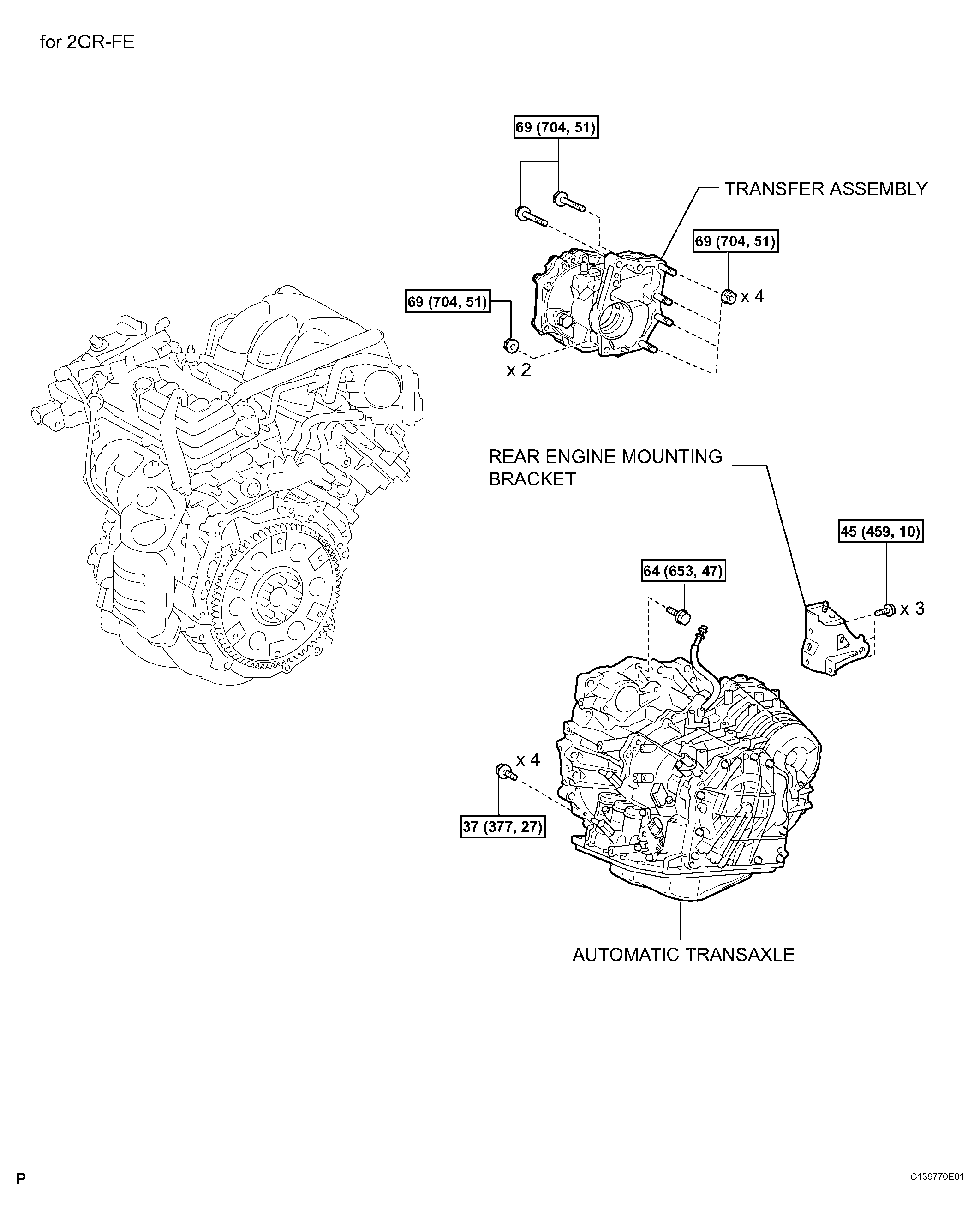

Fig 2: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (1 Of 3) (2006/01- )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

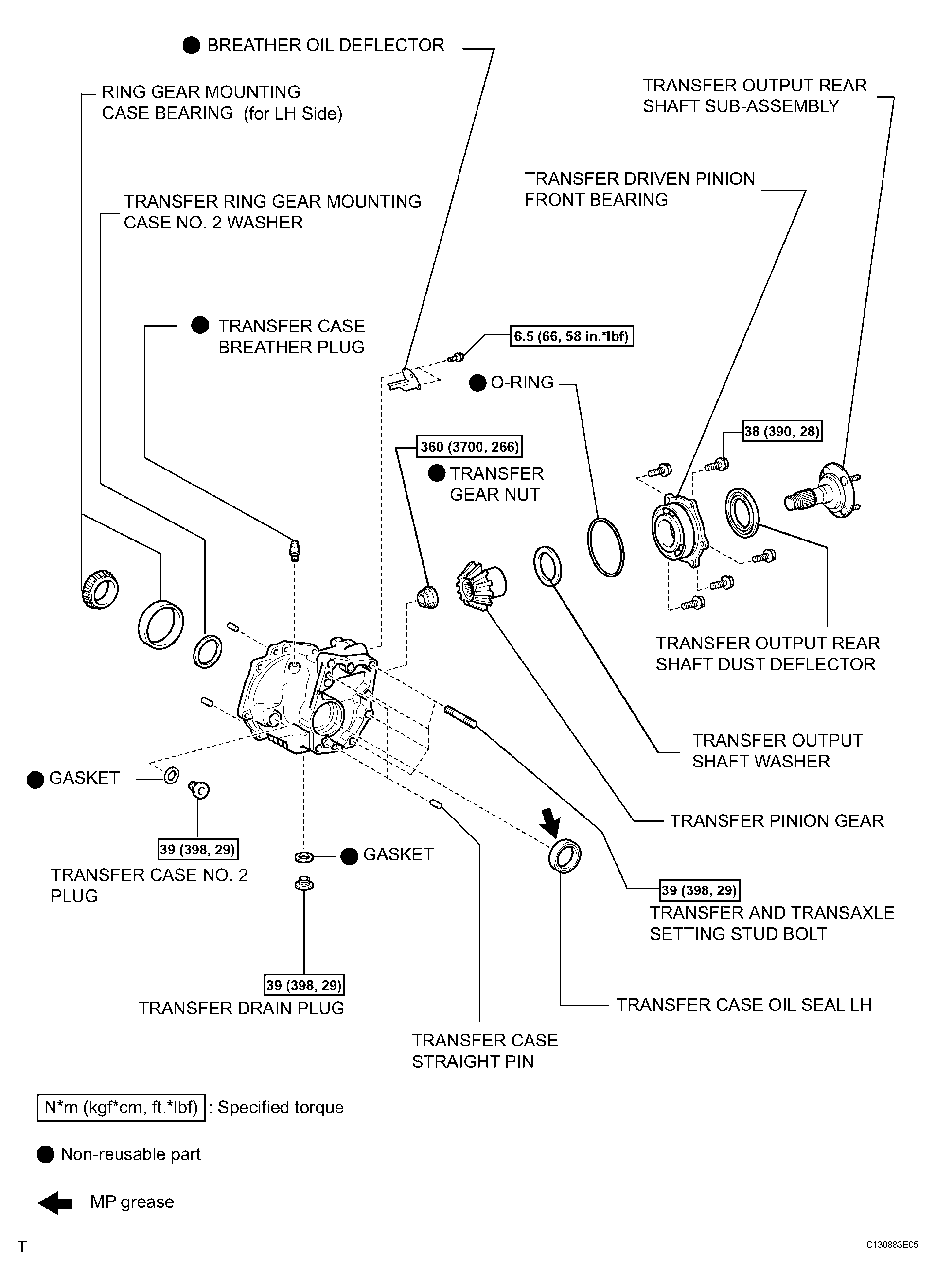

Fig 3: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (2 Of 3) (2006/01- )

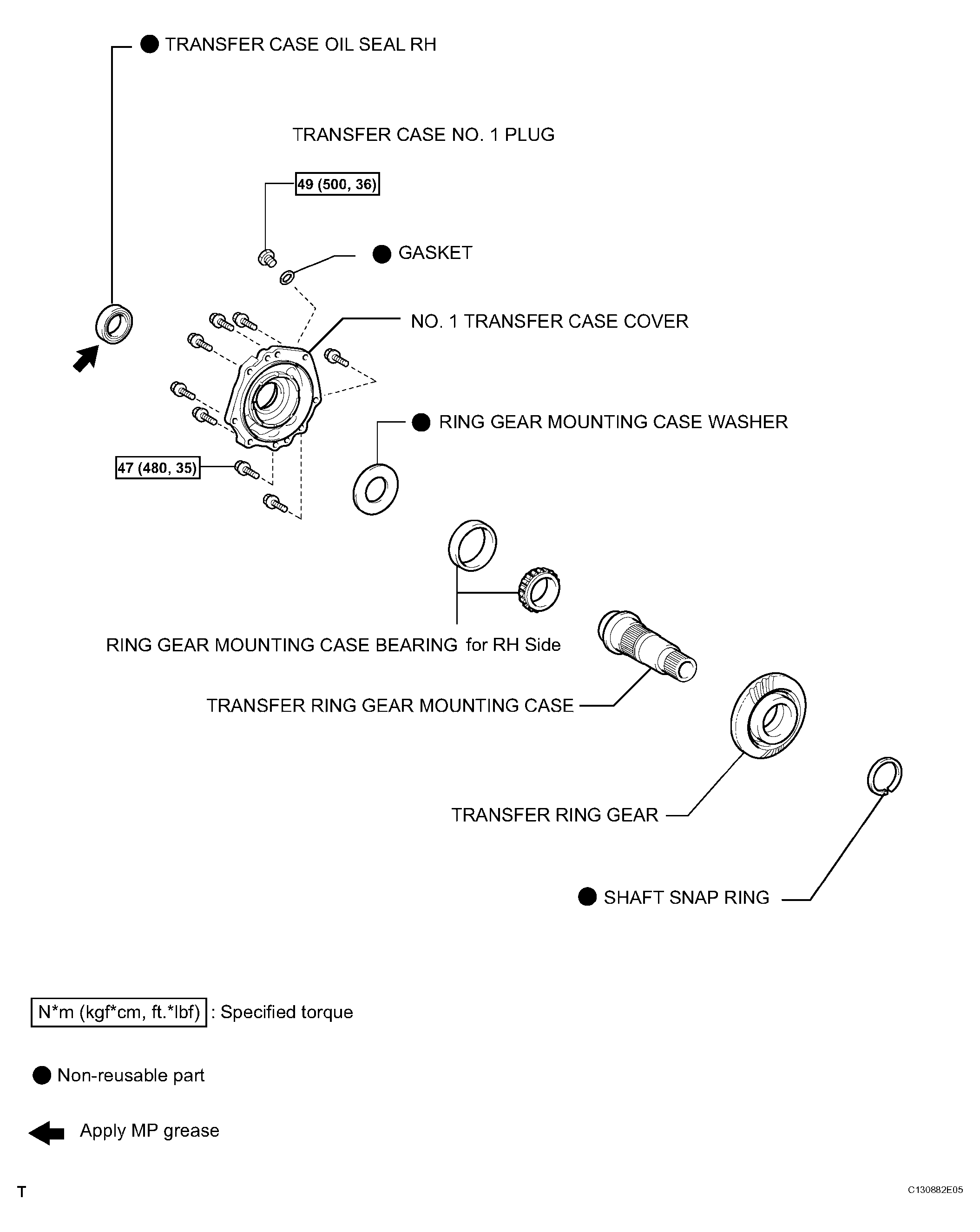

Fig 4: Transfer Assembly Replacement Components With Torque Specifications - 2GR-FE (3 Of 3) (2006/01- )
