Section 114 (Transfer Case - GF1A)
>>
Active Torque Control 4WD System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

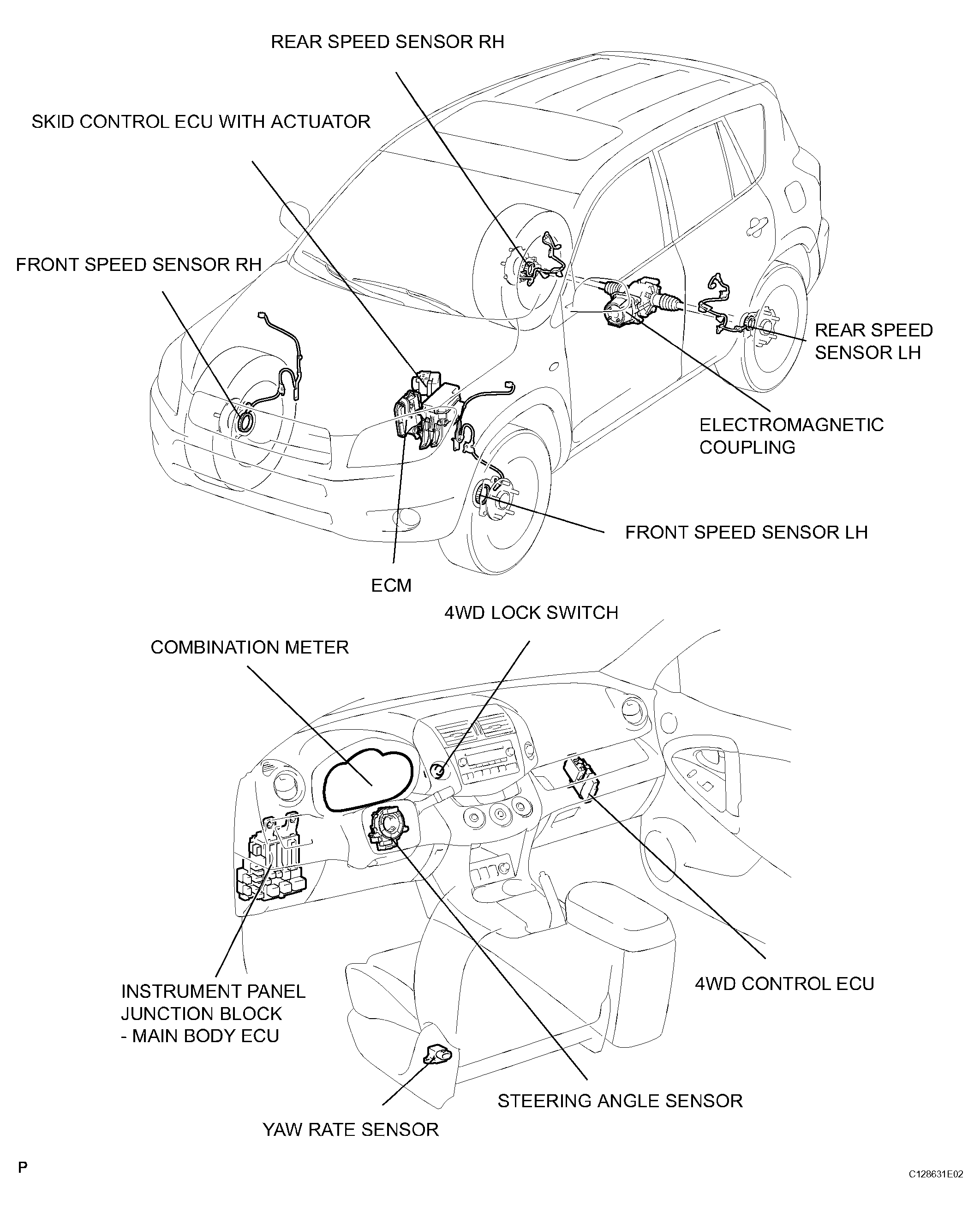

Fig 1: Active Torque Control 4WD System - Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
