4WD Indicator Light Remains ON: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

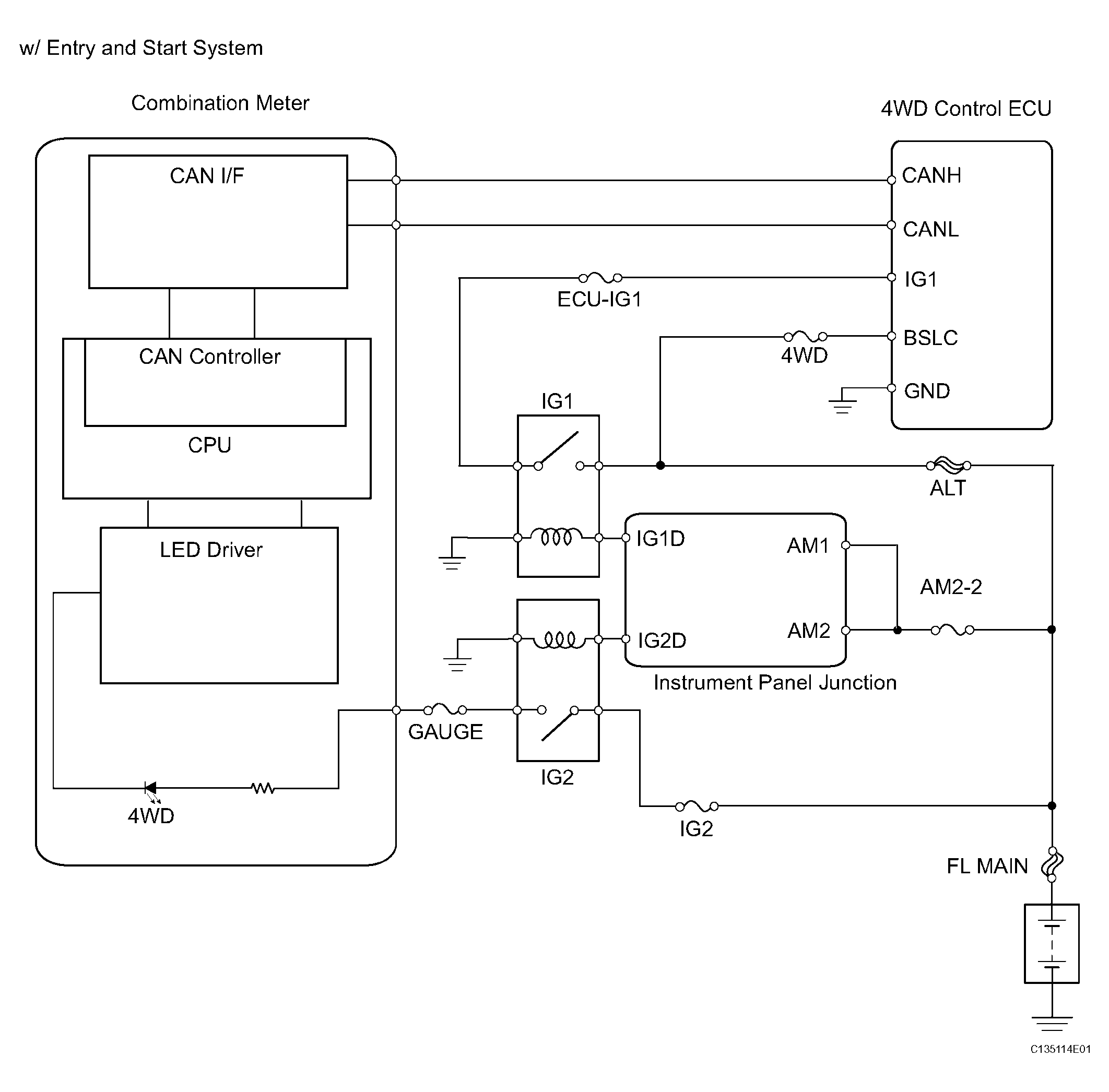

Fig 1: 4WD Indicator Light Remains On - Wiring Diagram (1 Of 2)
G04488753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

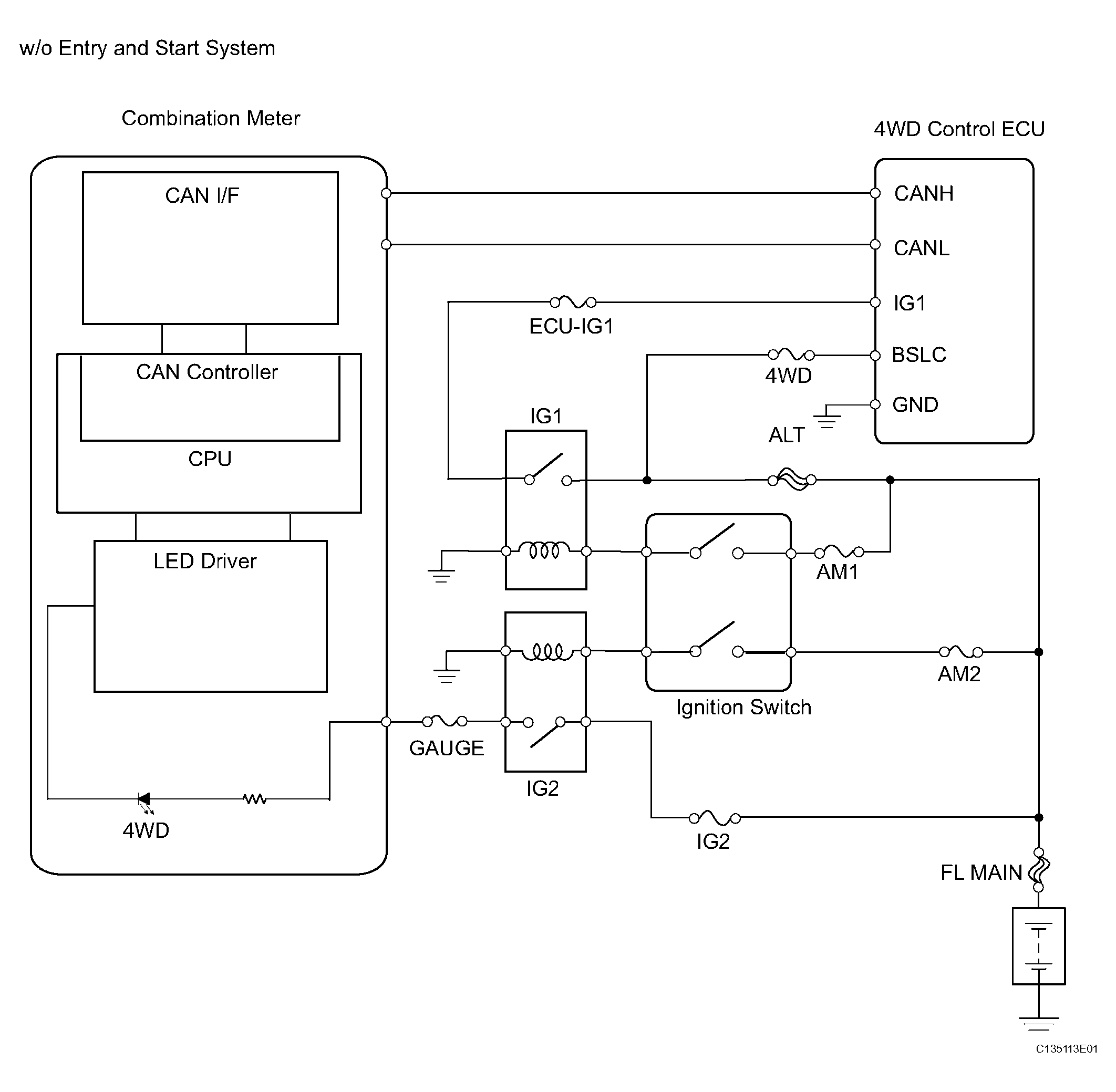

Fig 2: 4WD Indicator Light Remains On - Wiring Diagram (2 Of 2)
G04488754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
