4WD Control Ecu: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  3. REMOVE 4WD CONTROL ECU
    1. Disconnect the connector.
    2. Remove the bolt and ECU.

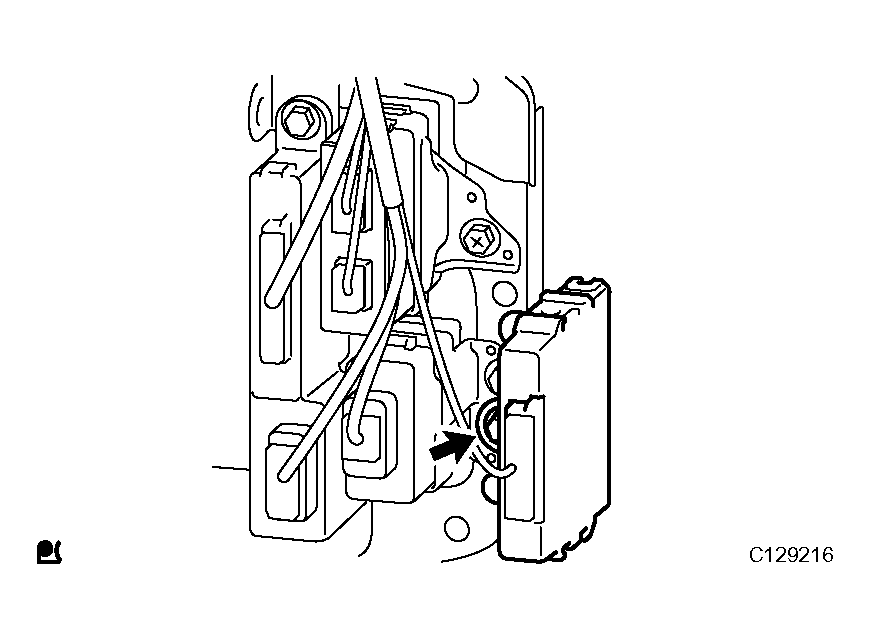

      Fig 1: Removing 4WD Control ECU
      G04488835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
