4WD Control Ecu: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL 4WD CONTROL ECU
1. Install the ECU with the bolt.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

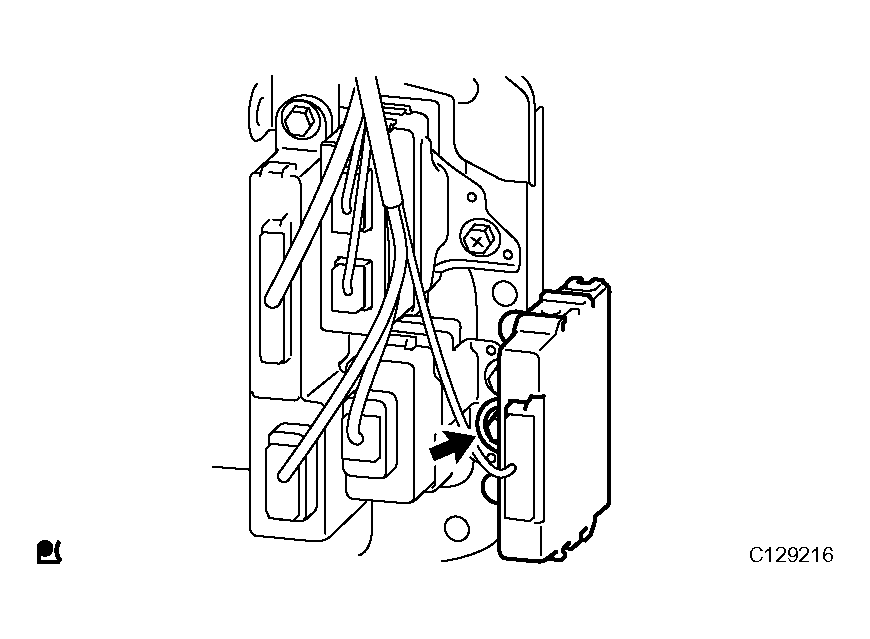

  Fig 1: Installing 4WD Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See appropriate step(s) under INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
