Vacuum Switching Valve: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PURGE VSV
1. Install the purge VSV with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 in.*lbf)
2. Connect the 2 purge line hoses to the purge VSV.
3. Connect the wire harness clamp.
4. Connect the purge VSV connector.

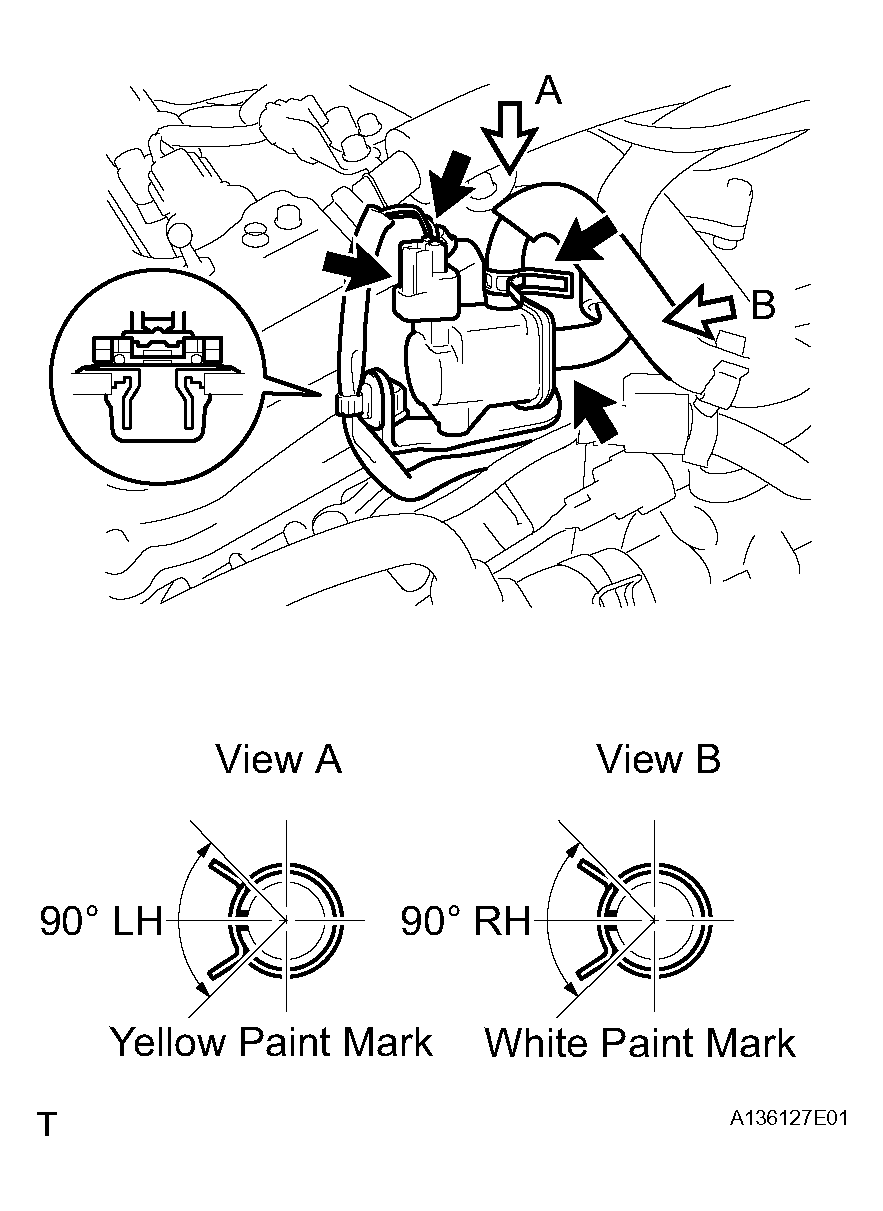

Fig 1: Connecting Purge VSV Connections
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY (See Figure and Figure )
Attach the 3 clips to install the engine cover.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
