Section 110 (Engine Cooling System (2AZ-FE)): Thermostat: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER
  2. DRAIN ENGINE COOLANT (See  COOLANT  )
  3. REMOVE RADIATOR SUPPORT OPENING COVER
  4. DISCONNECT NO. 2 RADIATOR HOSE
  5. REMOVE WATER INLET
    1. Remove the 2 nuts and disconnect the water inlet from the cylinder block.

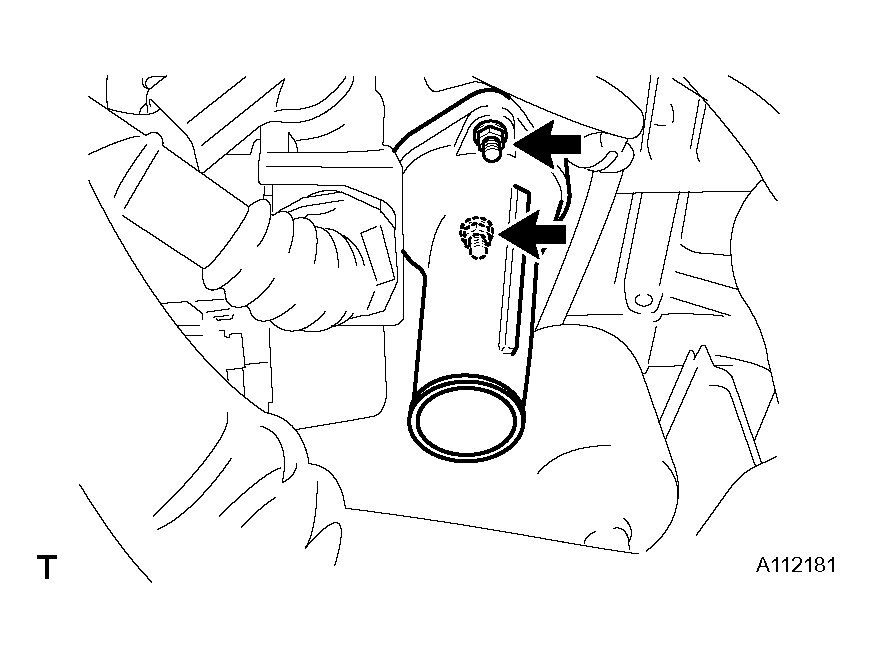

      Fig 1: Disconnecting Water Inlet From Cylinder Block
      G04485767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE THERMOSTAT
    1. Remove the gasket from the thermostat.
