Section 110 (Engine Cooling System (2AZ-FE)): Thermostat: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL THERMOSTAT
1. Install a new gasket onto the thermostat.
2. Install the thermostat with the jiggle valve upward.
  HINT:

  The jiggle valve may be set to within 10° on either side of the prescribed position.

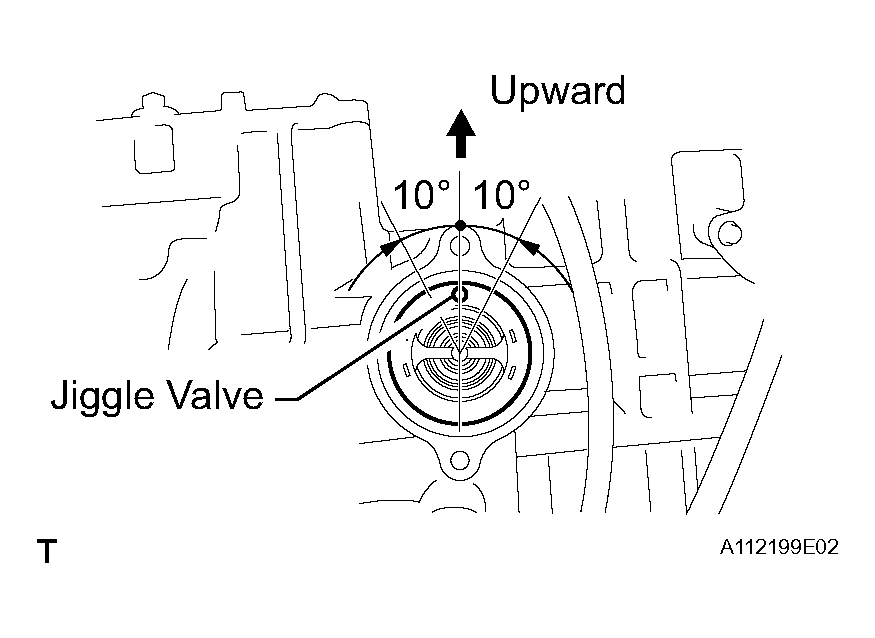

  Fig 1: Installing Thermostat With Jiggle Valve Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WATER INLET
1. Install the water inlet with the 2 nuts.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

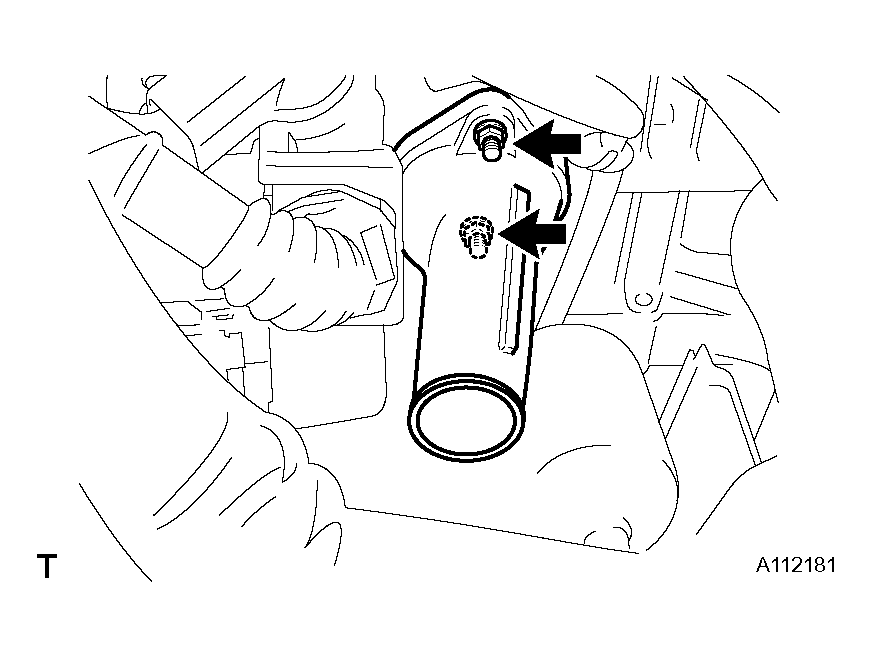

  Fig 2: Installing Water Inlet With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 RADIATOR HOSE
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL RADIATOR SUPPORT OPENING COVER
INSTALL NO. 1 ENGINE UNDER COVER
