On-Vehicle Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ENGINE OIL LEVEL
1. Warm up the engine, stop the engine and wait for 5 minutes.
2. Check that the engine oil level is between the L and F marks of the oil dipstick.
  If low, check for leakage and add oil up to the F mark.

  NOTE: Do not add engine oil above the F mark.
CHECK ENGINE OIL QUALITY
1. Check the oil for deterioration, water intrusion, discoloration or thinning.
  If the quality is visibly poor, replace the oil.

  Oil grade: Use API grade SL "Energy-Conserving" or ILSAC multigrade engine oil. SAE 5W-20 and SAE 0W-20 engine oil may be used. However, SAE0W-20 is the best choice for good fuel economy and good starting in cold weather.

  Fig 1: Engine Oil Viscosity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK OIL PRESSURE

Disconnect the oil pressure switch connector.
Using a 24 mm deep socket wrench, remove the oil pressure switch.

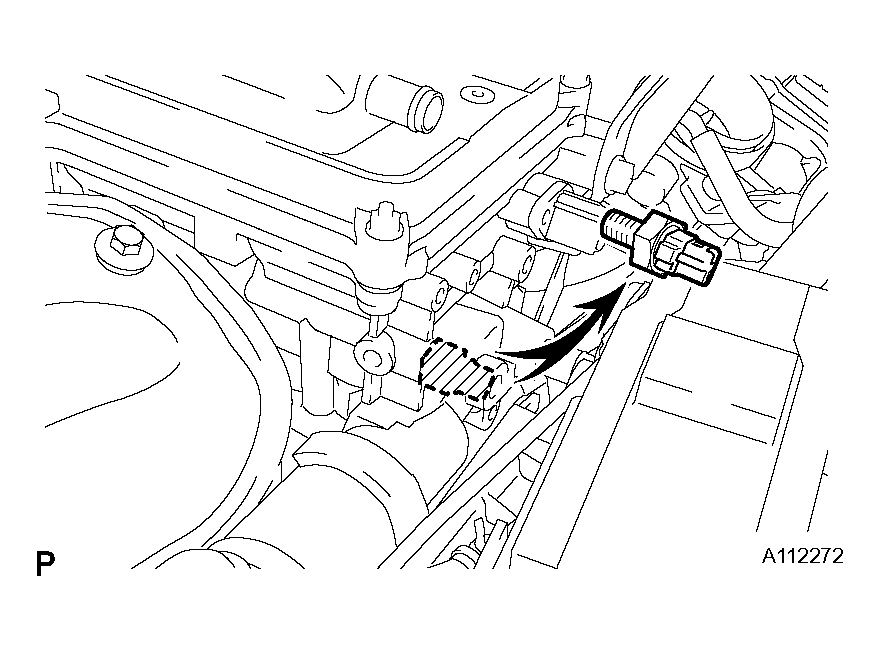

Fig 2: Identifying Oil Pressure Switch Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the oil pressure gauge.
Warm up the engine.

Measure the oil pressure.

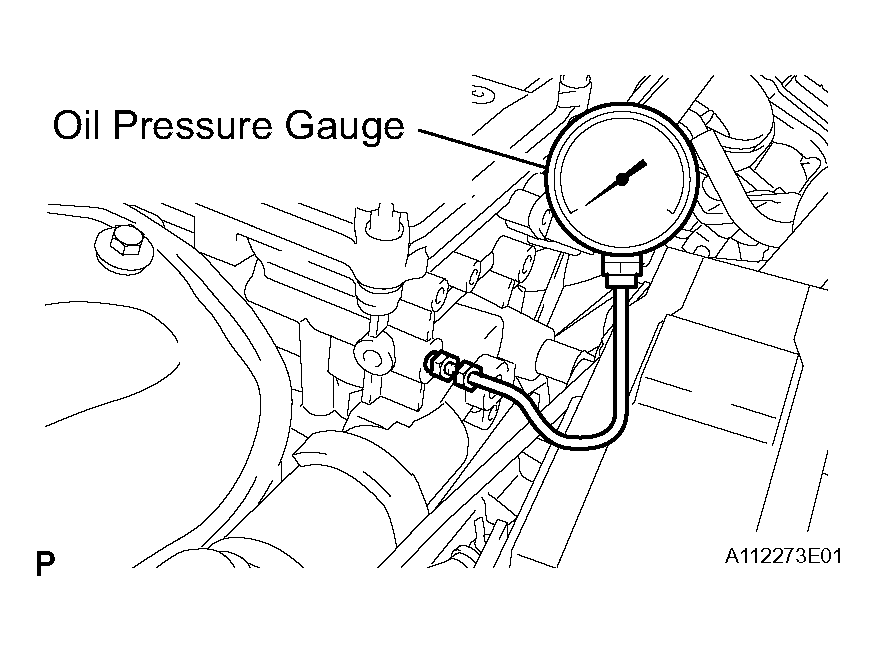

Fig 3: Measuring Oil Pressure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard oil pressure

OIL PRESSURE SPECIFICATION

Condition	Specified Condition
Idle	29 kPa (0.3 kgf/cm² , 4.3 psi) or more
3,000 RPM	160 to 539 kPa (1.6 to 5.5 kgf/cm² , 23 to 78 psi)

Apply adhesive to 2 or 3 threads of the oil pressure switch.

Fig 4: Applying Adhesive To Threads Of Oil Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Adhesive: TOYOTA Genuine Adhesive 1344, Three Bond 1344 or Equivalent
Using a 24 mm deep socket wrench, install the oil pressure switch.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

NOTE: Do not start the engine within 1 hour of installation.
Connect the oil pressure switch connector.
Check for engine oil leakage.
