Valve Body: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SHIFT SOLENOID VALVE SL1
1. Install the shift solenoid valve SL1 and lock plate to the valve body with the bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

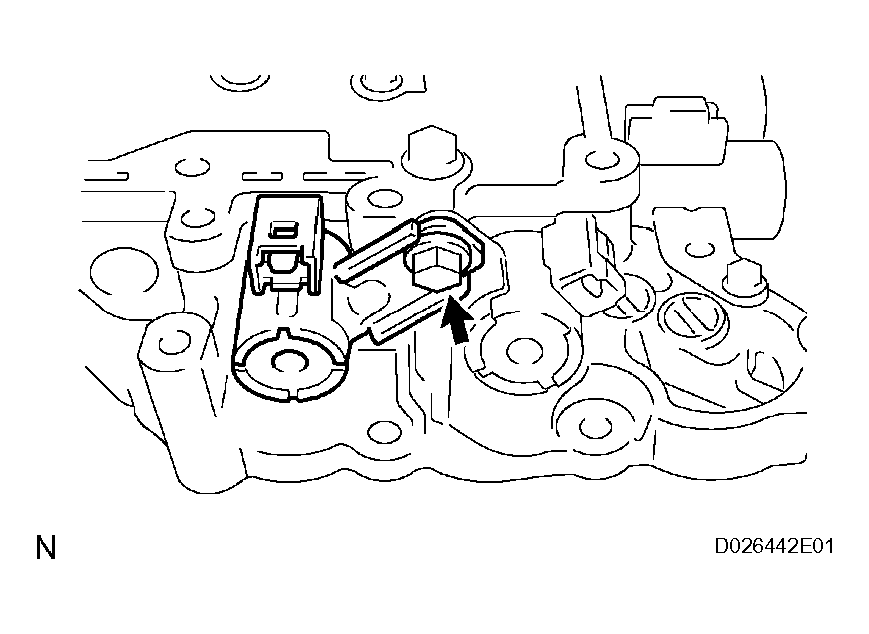

  Fig 1: Installing Shift Solenoid Valve SL1 And Lock Plate To Valve Body With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2 and lock plate to the valve body with the bolt.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 2: Installing Shift Solenoid Valve SL2 And Lock Plate To Valve Body With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE DSL
1. Install the shift solenoid valve DSL and lock plate to the valve body with the bolt.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 3: Installing Shift Solenoid Valve DSL
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SR
1. Install the shift solenoid valve SR to the valve body.

  Fig 4: Installing Shift Solenoid Valve SR To Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S4
1. Install the shift solenoid valve S4 to the valve body with the bolt.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

  Fig 5: Installing Shift Solenoid Valve S4 To Valve Body With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL3 AND SLT
1. Install the shift solenoid valve SL3 and SLT and lock plate to the valve body with the bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

  Fig 6: Installing Shift Solenoid Valve SL3 And SLT And Lock Plate To Valve Body With Bolt
