Valve Body Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
    1. Install the spring and check ball body.

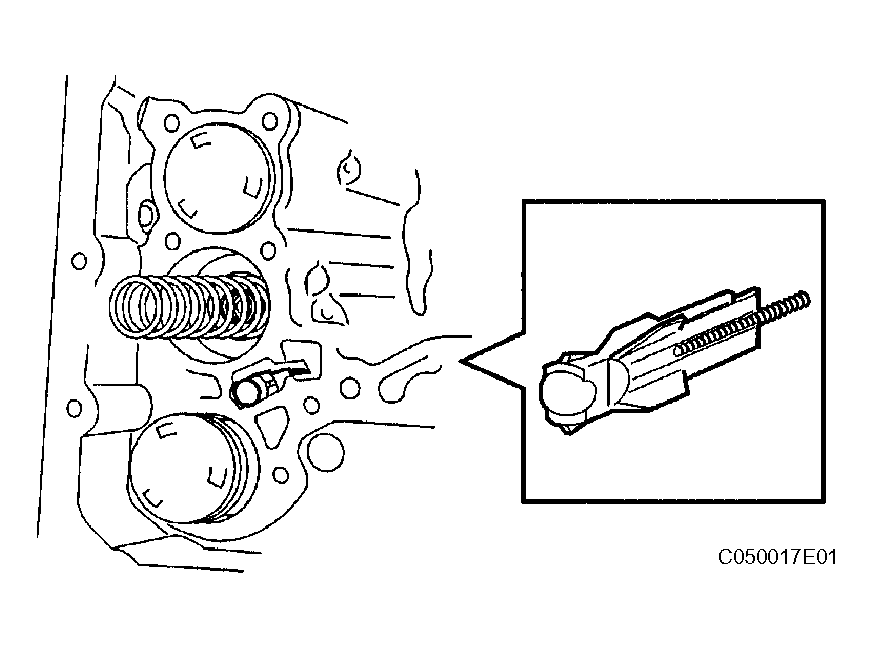

      Fig 1: Installing Spring And Check Ball Body
      G04487604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the groove of the manual valve with the pin of the lever.
    3. Apply ATF to the 17 bolts.
    4. Install the 17 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      NOTE:
      • Push the valve body against the accumulator piston spring and the check ball body to install it.
      • Tighten the bolts marked by * in the illustration first temporarily because they are positioning bolts.

      HINT:

      Each bolt length is indicated below.

      Bolt length:

      25 mm (0.984 in.) for bolt A

      57 mm (2.244 in.) for bolt B

      41 mm (1.614 in.) for bolt C

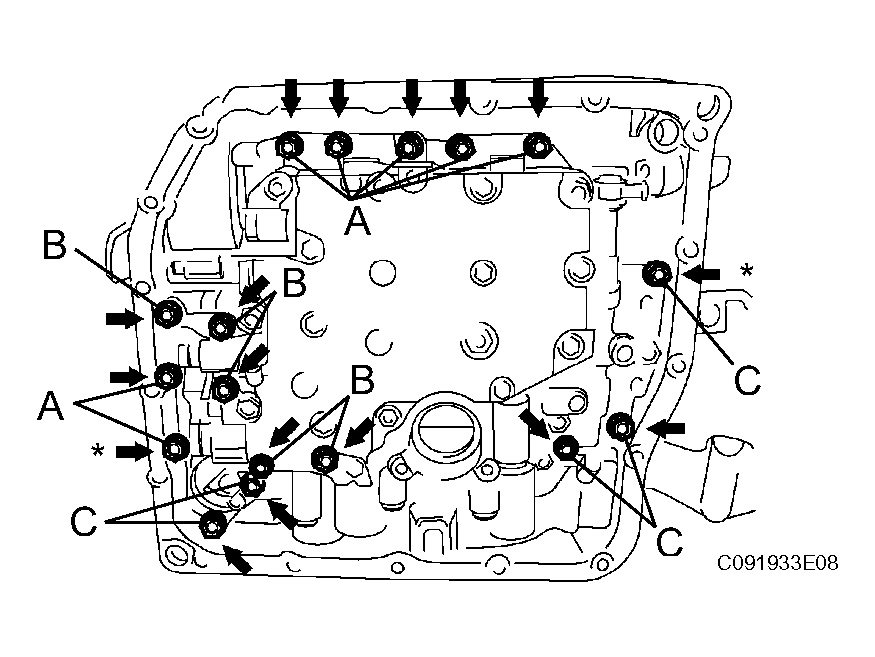

      Fig 2: Installing ATF With Bolts
      G04487605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT TRANSMISSION WIRE
    1. Coat the O-ring with ATF.
    2. Apply ATF to the bolt.
    3. Install the ATF temperature sensor with the lock plate and bolt.

      Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

    4. Connect the 7 shift solenoid valve connectors.

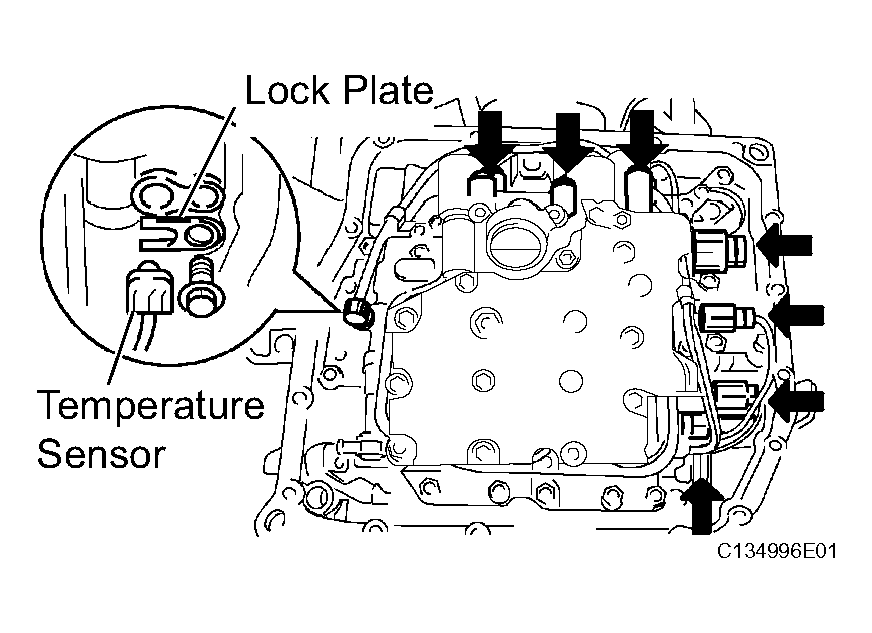

      Fig 3: Installing ATF Temperature Sensor With Lock Plate And Bolt
      G04487606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    1. Coat a new O-ring with ATF.
    2. Install the O-ring to the oil strainer.
    3. Apply ATF to the 3 bolts.
      Fig 4: Installing O-Ring To Oil Strainer
      G04487607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the oil strainer with the 3 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

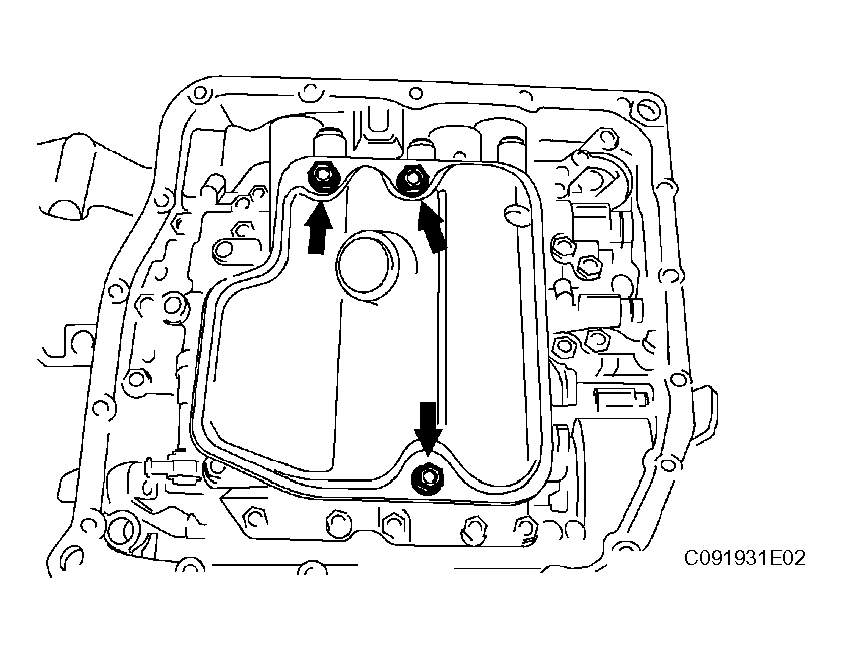

      Fig 5: Installing Oil Strainer With Bolts
      G04487608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
    1. Install the 2 magnets in the oil pan.
      Fig 6: Locating Magnets In Oil Pan
      G04486953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket and the oil pan with the 18 bolts.

      Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)

  5. INSTALL NO. 1 ENGINE UNDER COVER
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. ADD AUTOMATIC TRANSAXLE FLUID

    Fluid type: Toyota Genuine ATF WS

  8. INSPECT TRANSAXLE FLUID LEVEL
    1. Inspect the fluid level (see INSPECTION PROCEDURE  ).
  9. PERFORM RESET MEMORY
    1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION  ).

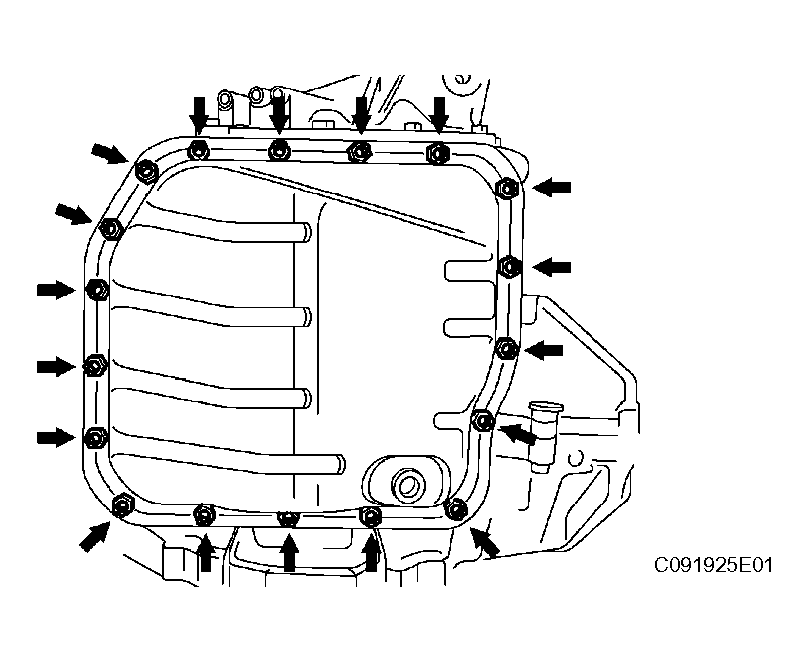

      Fig 7: Installing Oil Pan Bolts
      G04487610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
