UNDERDRIVE Planetary Gear: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD (See INSPECTION )
REMOVE FRONT PLANETARY GEAR NUT
1. Using SST, loosen the staked part of the lock nut.
  SST 09930-00010 (09931-00010, 09931-00020), 09387-00050

  Fig 1: Locating Staked Portion Of Planetary Gear Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place the underdrive planetary gear in a soft jaw vise.
  NOTE: Be careful not to damage the differential drive pinion.

  Fig 2: Placing Underdrive Planetary Gear In Soft Jaw Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a socket wrench, remove the lock nut.

  Fig 3: Removing Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CYLINDRICAL ROLLER BEARING RACE INNER
1. Using SST, remove the cylindrical roller bearing race inner.
  SST 09950-00020, 09950-00030, 09950-60010 (09951-00320, 09957-04010)

  Fig 4: Removing Cylindrical Roller Bearing Race Inner Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE PLANETARY GEAR ASSEMBLY
1. Using SST and a press, press out the differential drive pinion, parking lock gear, counter driven gear with underdrive planetary ring gear and radial ball bearing front.
  SST 09950-60010 (09951-00320), 09387-00050, 09950-00020, 09950-00030, 09950-40011 (09957-04010)

  Fig 5: Pressing Out Differential Drive Pinion, Parking Lock Gear, Counter Driven Gear With Underdrive Planetary Ring Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place the underdrive planetary gear in a soft jaw vise.
3. Using SST, remove the radial ball bearing rear from the underdrive planetary gear.
  SST 09950-60010 (09951-00320), 09950-00030, 09950-40011 (09957-04010)

  Fig 6: Using SST To Remove Rear Bearing Form Underdrive Planetary Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UNDERDRIVE PLANETARY RING GEAR
1. Using snap ring pliers, remove the snap ring.

  Fig 7: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

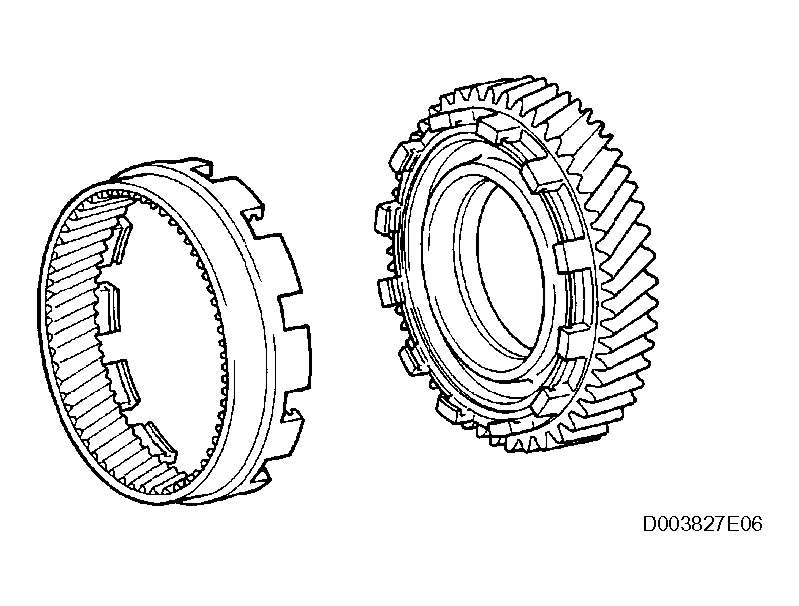

2. Remove the underdrive planetary ring gear from the counter driven gear.

  Fig 8: Removing Underdrive Planetary Ring Gear From Counter Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
