Transmission Wire: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSMISSION WIRE
1. Coat a new O-ring of the transmission wire connector with ATF.
2. Install the O-ring to the transmission wire connector.

  Fig 1: Installing O-Ring To Transmission Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

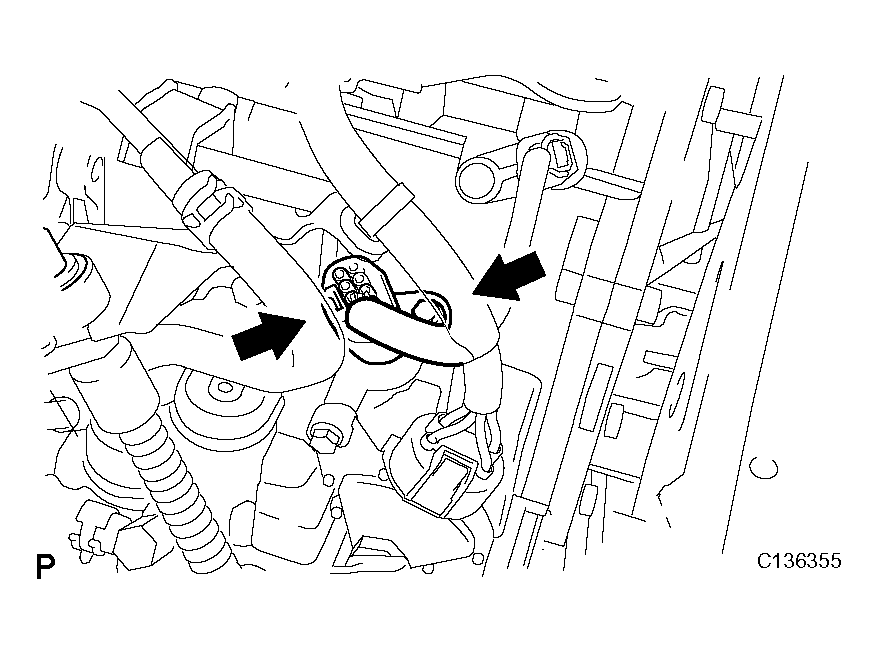

3. Install the transmission wire.
4. Install the bolt.
5. Connect the connector.

  Fig 2: Installing Transmission Wire With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

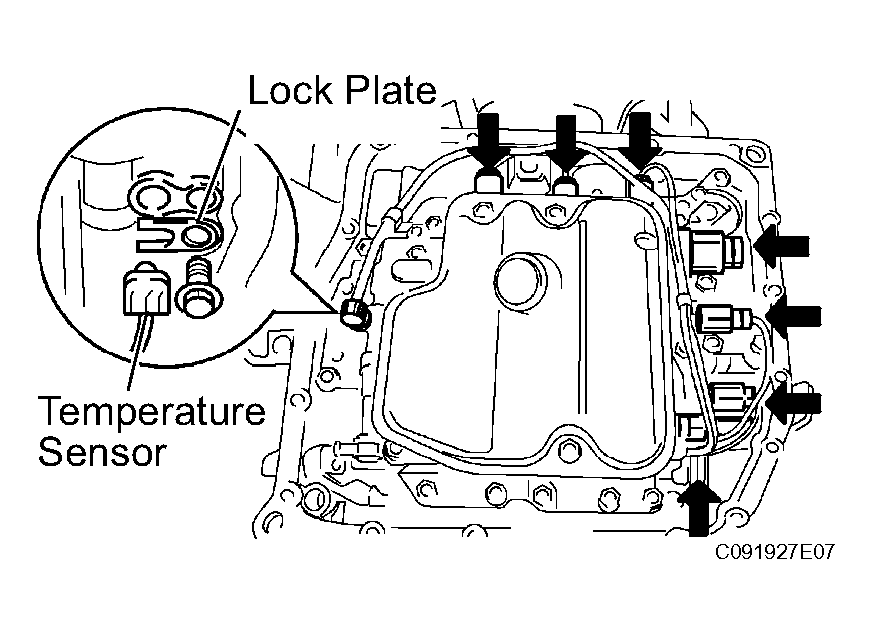

6. Coat the O-ring of the ATF temperature sensor with ATF.
7. Apply ATF to the bolt.
8. Install the ATF temperature sensor with the lock plate and bolt.
  Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)
9. Connect the 7 shift solenoid valve connectors.

  Fig 3: Installing ATF Temperature Sensor With Lock Plate And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
1. Install the 2 magnets in the oil pan.

  Fig 4: Locating Magnets In Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan with the 18 bolts.
  Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)
INSTALL NO. 1 ENGINE UNDER COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD AUTOMATIC TRANSAXLE FLUID
Fluid type: Toyota Genuine ATF WS
INSPECT TRANSAXLE FLUID LEVEL
1. Inspect the fluid level (see INSPECTION PROCEDURE ).
PERFORM RESET MEMORY
1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION ).

  Fig 5: Identifying Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
