Transmission Wire: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Wire Components & Torque Specification (1 Of 2)
G04487582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

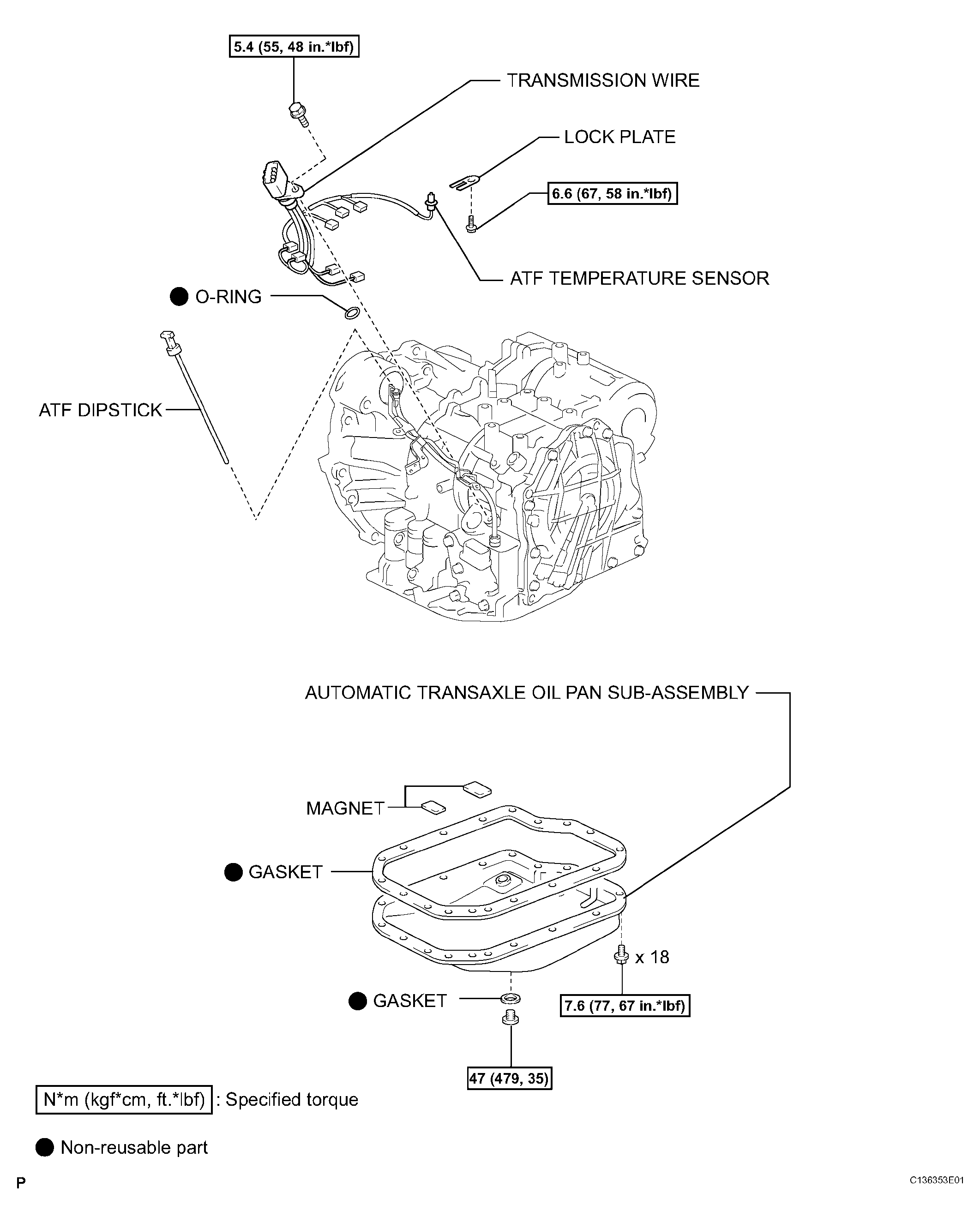

Fig 2: Transmission Wire Components & Torque Specification (2 Of 2)
G04487583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
