Park / Neutral Position Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE BATTERY
1. Loosen the nut and remove the bolt and battery clamp.
2. Remove the and insulator battery.
3. Remove battery tray.
4. Remove the 4 bolts and battery carrier.
5. Remove the 2 bolts and battery bracket reinforcement.
REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

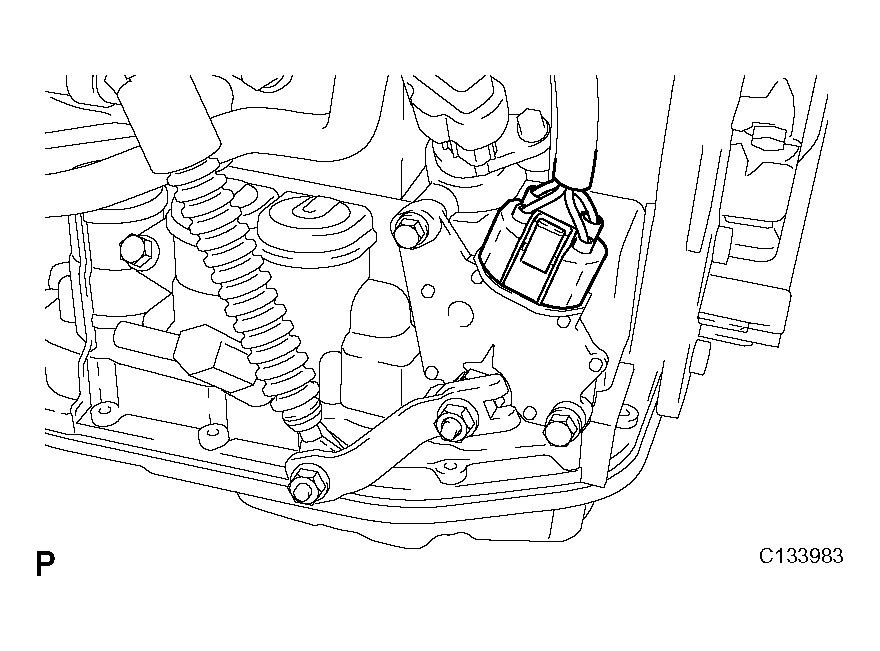

1. Disconnect the switch connector.

  Fig 1: Disconnecting Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

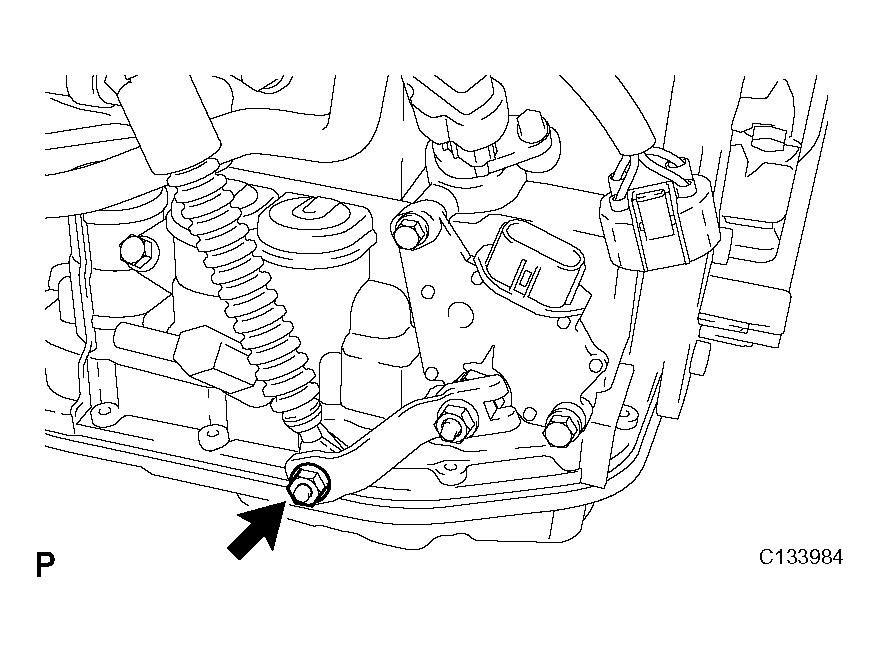

2. Remove the nut and disconnect the control cable from the control shaft lever.

  Fig 2: Disconnecting Control Cable From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

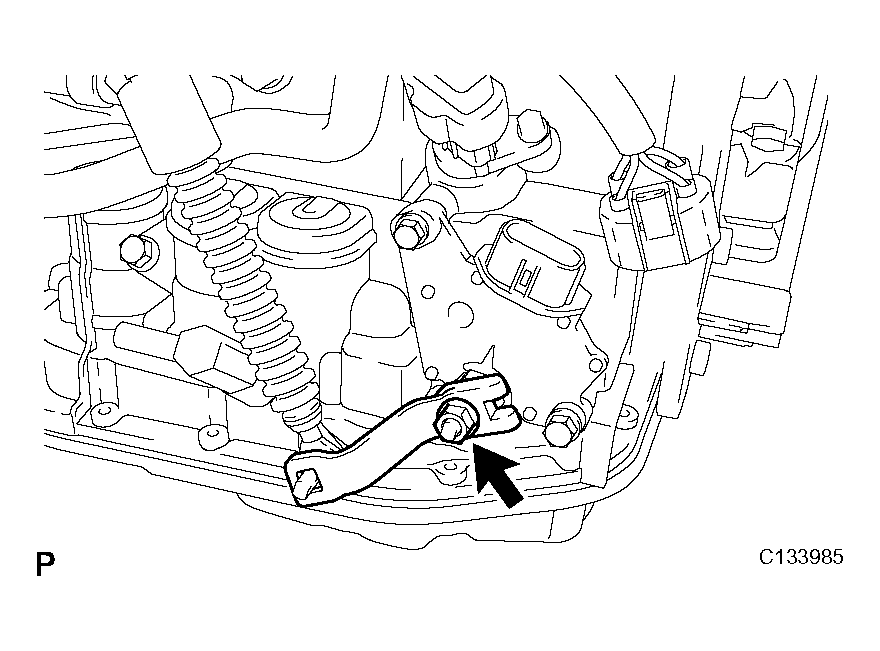

3. Remove the nut, washer and control shaft lever.

  Fig 3: Removing Nut, Washer And Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

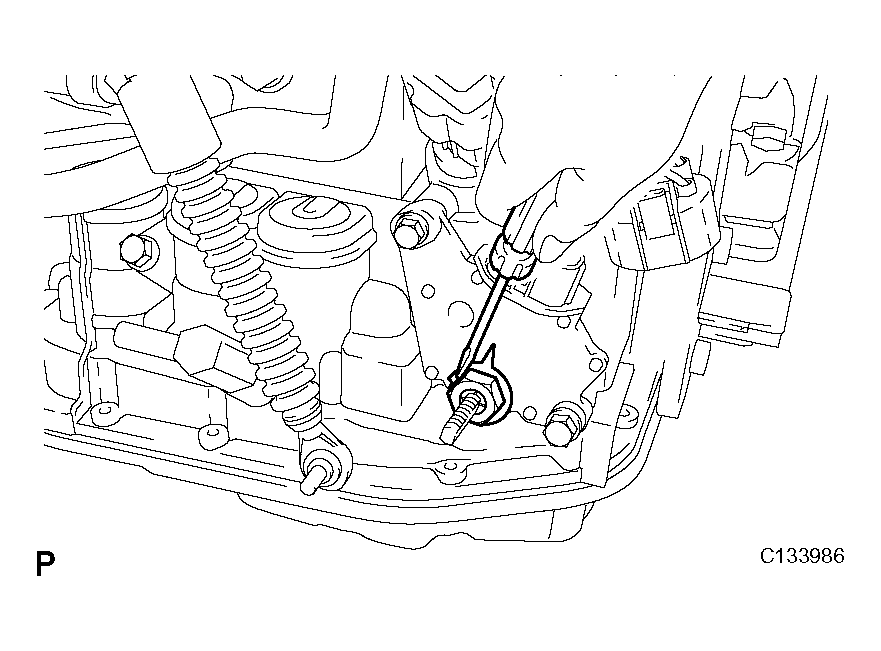

4. Using a screwdriver, pry off the lock plate.
5. Remove the nut and lock plate.

  Fig 4: Removing Nut And Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

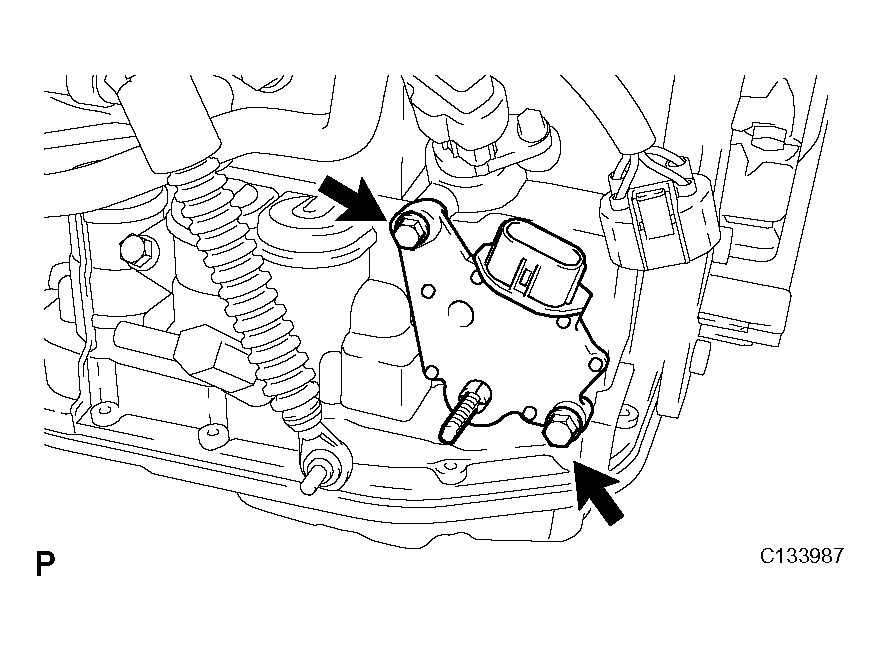

6. Remove the 2 bolts and pull out the switch.

  Fig 5: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
