Floor Shift Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FLOOR SHIFT ASSEMBLY
1. Connect the 2 connectors and attach the clamp.
2. Install the floor shift with the 4 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

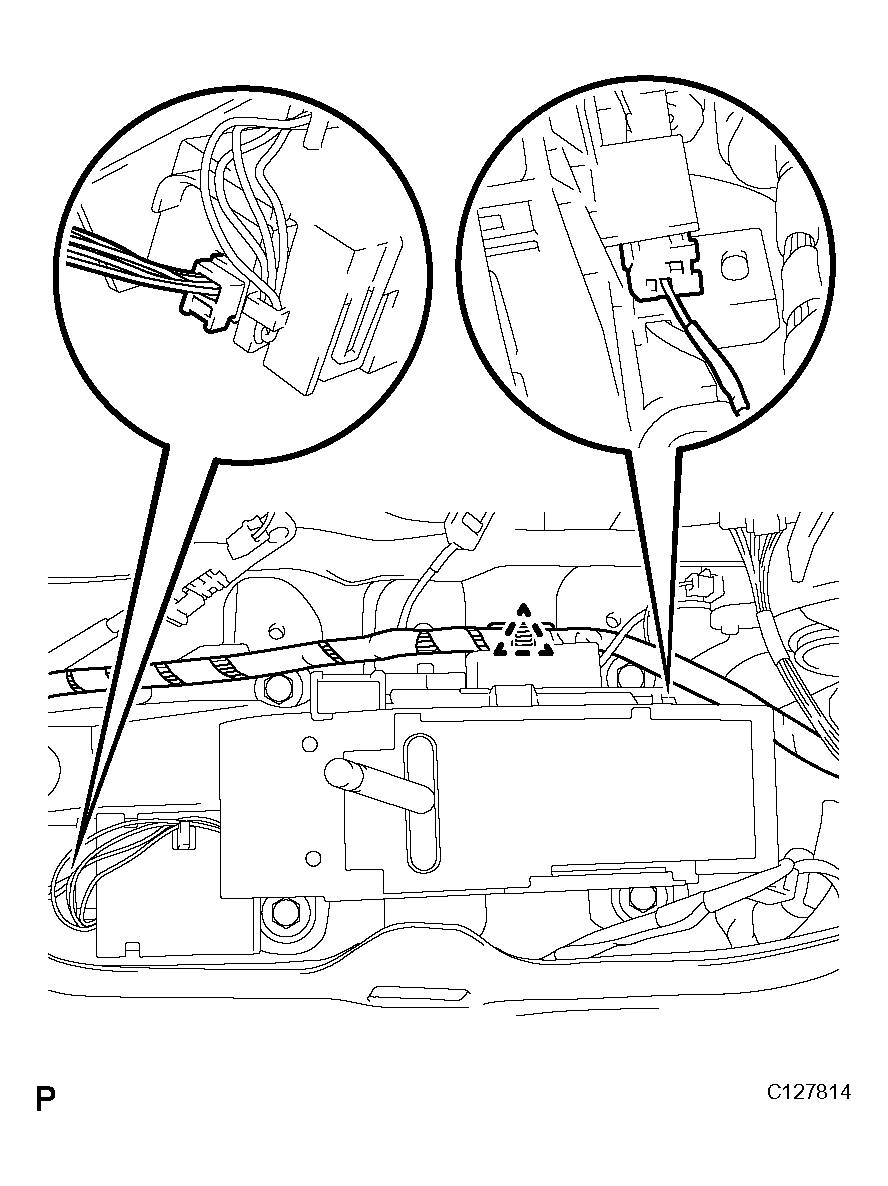

  Fig 1: Installing Floor Shift With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn the nut of the control cable and push in the lock.

  Fig 2: Turning Nut Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable onto the shift lever retainer.
  NOTE:
  - Install the cable with the protruding portion of the cable outer facing upward.

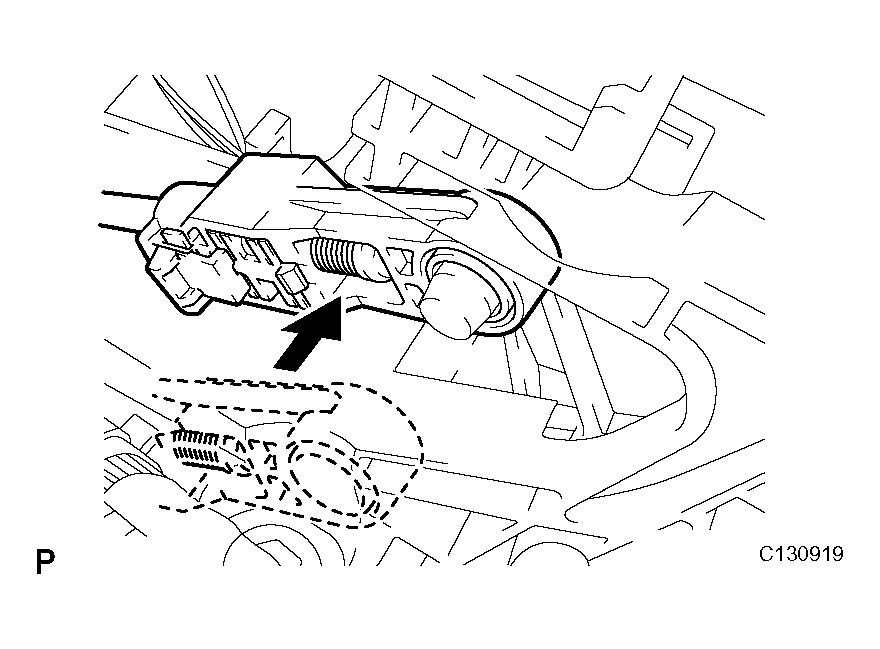

    Fig 3: Installing Control Cable Onto Shift Lever Retainer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.

    Fig 4: Checking Lock Of Cable Outer Is Protruding Beyond Portion
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the control cable to the shift lever.
  NOTE: Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the driver side of the vehicle.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the rear console box (see ).
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Fig 5: Connecting Control Cable To Shift Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
