Differential Oil Seal: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

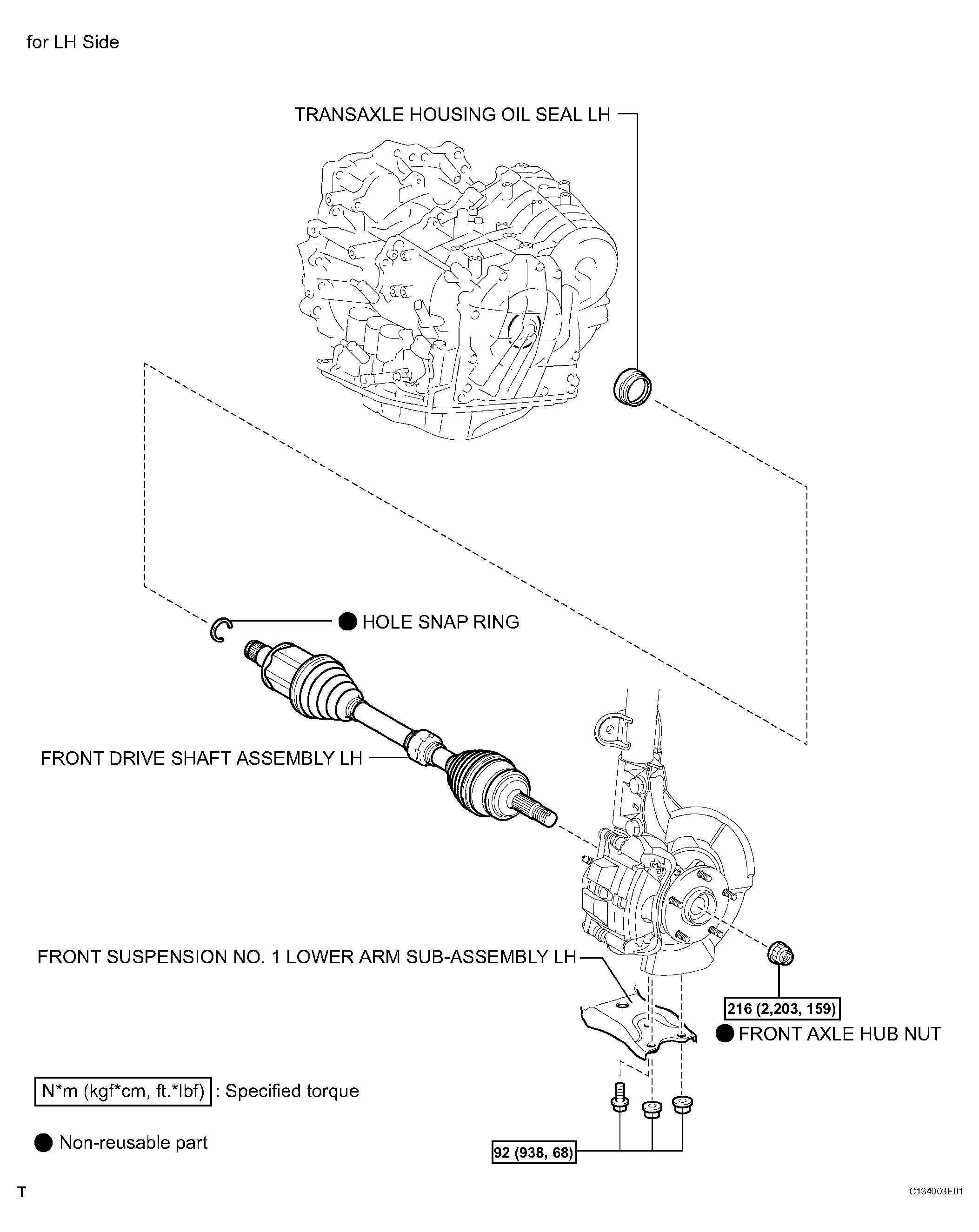

Fig 1: Differential Oil Seal Components & Torque Specification (1 Of 2)
G04487664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

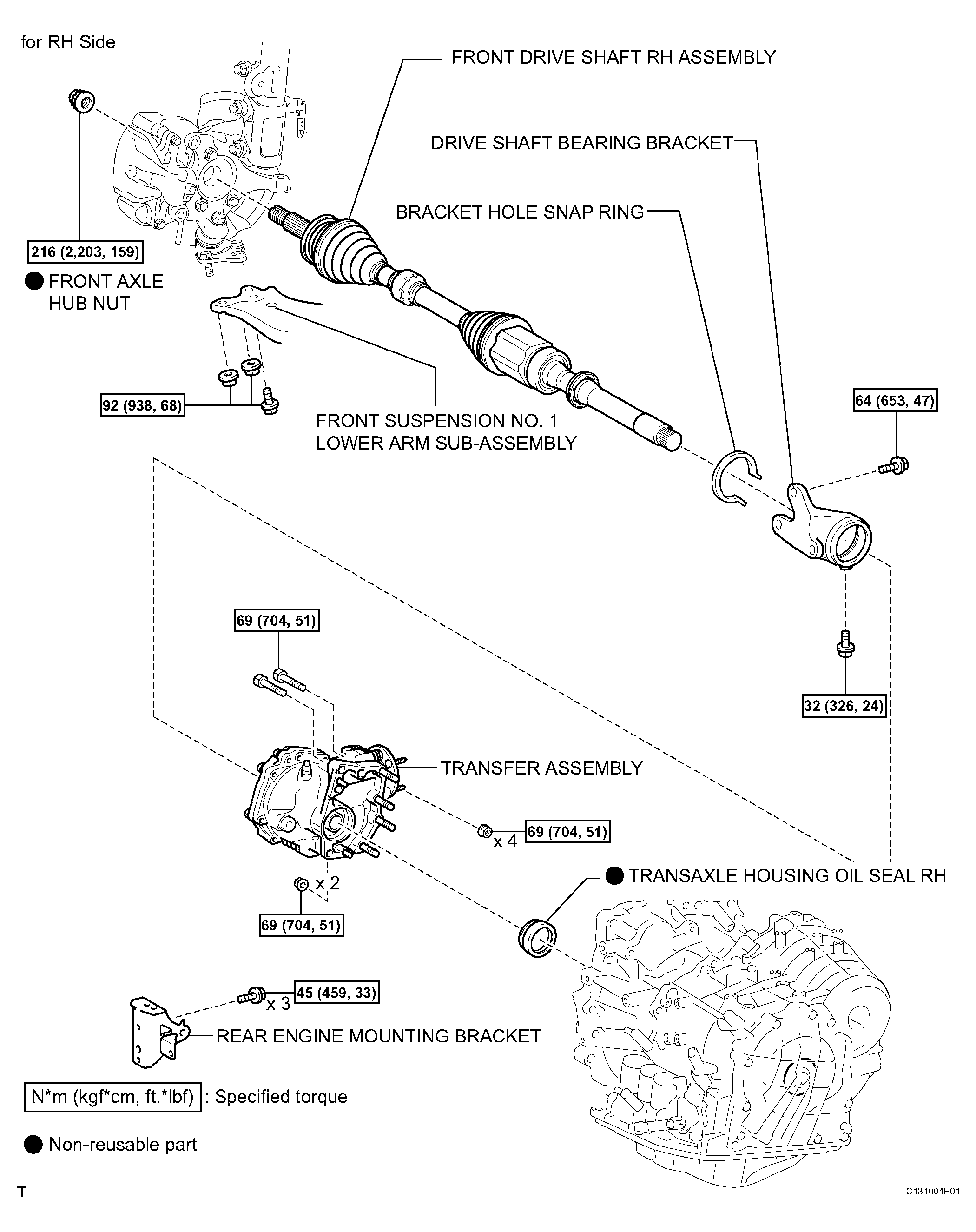

Fig 2: Differential Oil Seal Components & Torque Specification (2 Of 2)
G04487665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
