Differential Case: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT DIFFERENTIAL SIDE GEAR
1. Coat the 2 front differential side gears, 2 side gear thrust washers, 2 front differential pinions and 2 pinion thrust washers with ATF and install them to the differential case.

  Fig 1: Installing Front Differential Side Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 FRONT DIFFERENTIAL PINION SHAFT
1. Coat the No. 1 front differential pinion shaft with ATF, and install it to the differential case.

  Fig 2: Installing No. 1 Front Differential Pinion Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN
1. Using a pin punch and a hammer, tap in the pinion shaft straight pin.

  Fig 3: Tapping In Pinion Shaft Straight Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a chisel and a hammer, stake the differential case.
  NOTE: Stake it after adjusting the backlash.

  Fig 4: Staking Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
1. Using SST and a press, press in the front differential case rear tapered roller bearing to the differential case.
  SST 09550-60010, 09950-60020 (09951-00680), 09950-70010 (09951-07100)
  NOTE:
  - When replacing the bearing, be sure to replace it together with the outer race.
  - When replacing a bearing of the differential case, replace both the front and rear bearings together.

    Fig 5: Pressing Front Differential Case Rear Tapered Roller Bearing To Differential Case
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap in the front differential case rear tapered roller bearing outer race to the transaxle housing.
  SST 09550-60010, 09950-60020 (09951-00680), 09950-70010 (09951-07100, 09951-00890)

  NOTE: When replacing the bearing, be sure to replace it together with the outer race.

  Fig 6: Tapping In Front Differential Case Rear Tapered Roller Bearing Outer Race To Transaxle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
1. Using SST and a press, press in the front differential case front tapered roller bearing to the differential case.
  SST 09550-60010, 09950-60020 (09951-00680), 09950-70010 (09951-07100, 09951-00890)
  NOTE:
  - When replacing the bearing, be sure to replace it together with the outer race.
  - When replacing a bearing of the differential case, replace both the front and rear bearings together.

    Fig 7: Pressing Front Differential Case Front Tapered Roller Bearing To Differential Case
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap in the front differential case front tapered roller bearing outer race to the transaxle housing.
  SST 09550-60010, 09950-60020 (09951-00680), 09950-70010 (09951-07100, 09951-00890)
  NOTE:
  - When replacing the bearing, be sure to replace it together with the outer race.
  - Clearance is not allowed between the bearing and transaxle housing.

    Fig 8: Taping Front Differential Case Front Tapered Roller Bearing Outer Race To Transaxle Housing
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST DIFFERENTIAL SIDE BEARING PRELOAD

Install the differential assembly to the transaxle case.

Fig 9: Installing Differential Assembly To Transaxle Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Clean the matching surfaces of the transaxle case and transaxle housing.

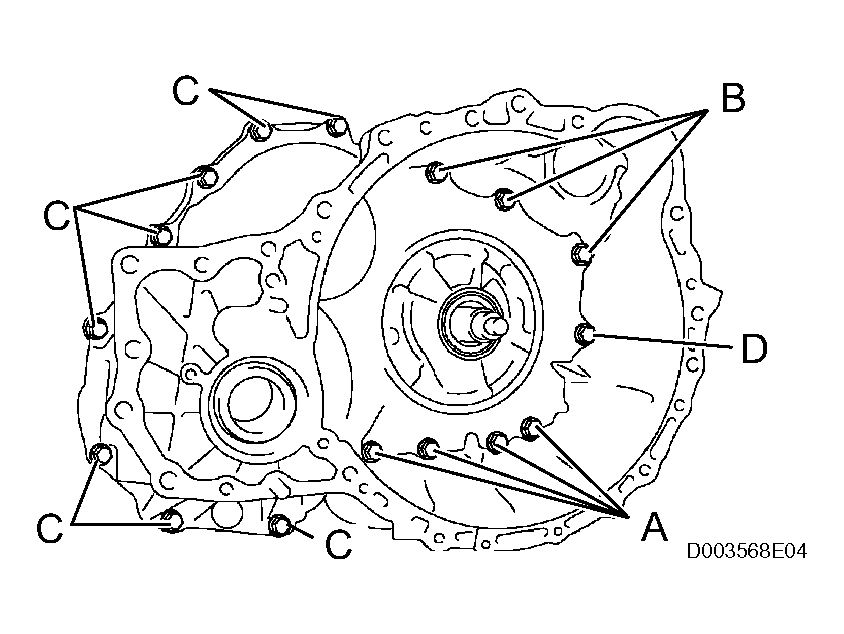

Install the transaxle housing to the transaxle case and tighten them with the 16 bolts.
Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf) for bolt A

29 N*m (295 kgf*cm, 21 ft.*lbf) for bolt B

29 N*m (295 kgf*cm, 21 ft.*lbf) for bolt C

22 N*m (224 kgf*cm, 16 ft.*lbf) for bolt D

HINT:
- Each bolt length is indicated below.
  Bolt length:

  50 mm (1.97 in.) for bolt A

  50 mm (1.97 in.) for bolt B

  42 mm (1.65 in.) for bolt C

  72 mm (2.84 in.) for bolt D
- Usually, bolt A is a non-reusable bolt. In this case, however, it can be used after cleaning it.

  Fig 10: Installing Transaxle Housing To Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using SST, turn the differential assembly right and left 2 or 3 times to allow the bearing to settle.
SST 09564-32011

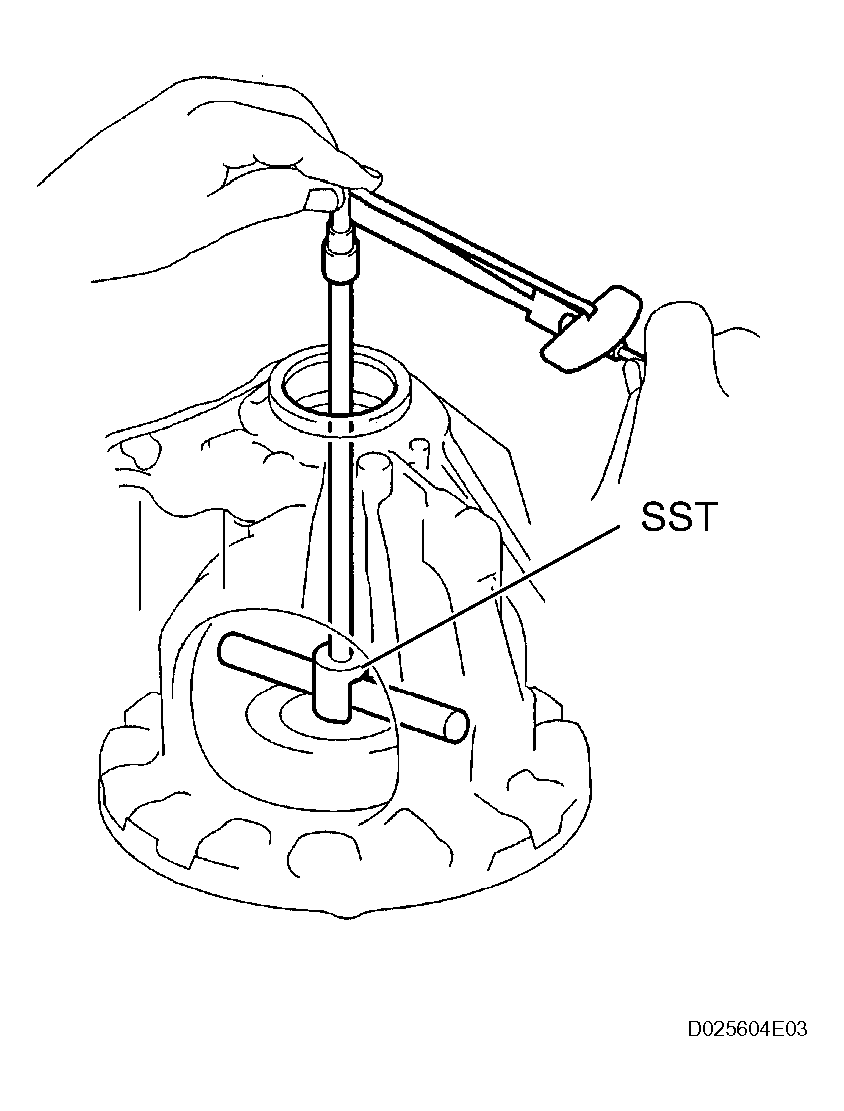

Using SST and a torque wrench, measure the turning torque of the differential.

SST 09564-32011

Torque: Standard turning torque at 60 rpm 0.20 to 0.69 N*m (2.0 to 7.0 kgf*cm, 1.8 to 6.1 in.*lbf)

HINT:

If the turning torque is not within the specified value, refer to the table below and select a thrust washer so that the turning torque is within the specified value.

Flange thickness

Fig 11: Measuring Turning Torque Of Differential

FLANGE THICKNESS

Mark	Thickness	Mark	Thickness
0	2.00 mm (0.0787 in.)	J	2.025 mm (0.07972 in.)
1	2.05 mm (0.0807 in.)	K	2.075 mm (0.08169 in.)
2	2.10 mm (0.0827 in.)	L	2.125 mm (0.08366 in.)
3	2.15 mm (0.0846 in.)	M	2.175 mm (0.08563 in.)
4	2.20 mm (0.0866 in.)	N	2.225 mm (0.08760 in.)
5	2.25 mm (0.0886 in.)	P	2.275 mm (0.08957 in.)
6	2.30 mm (0.0906 in.)	Q	2.325 mm (0.09154 in.)
7	2.35 mm (0.0925 in.)	R	2.375 mm (0.09350 in.)
8	2.40 mm (0.0945 in.)	S	2.425 mm (0.09547 in.)
9	2.45 mm (0.0965 in.)	T	2.475 mm (0.09744 in.)
A	2.50 mm (0.0984 in.)	U	2.525 mm (0.09941 in.)
B	2.55 mm (0.1004 in.)	V	2.575 mm (0.10138 in.)
C	2.60 mm (0.1024 in.)	W	2.625 mm (0.10335 in.)
D	2.65 mm (1.1043 in.)	X	2.675 mm (0.10531 in.)
E	2.70 mm (0.1063 in.)	Y	2.725 mm (0.10728 in.)
F	2.75 mm (0.1083 in.)	AA	2.775 mm (0.10925 in.)
G	2.80 mm (0.1102 in.)	AB	2.825 mm (0.11122 in.)
H	2.85 mm (0.1122 in.)	-	-

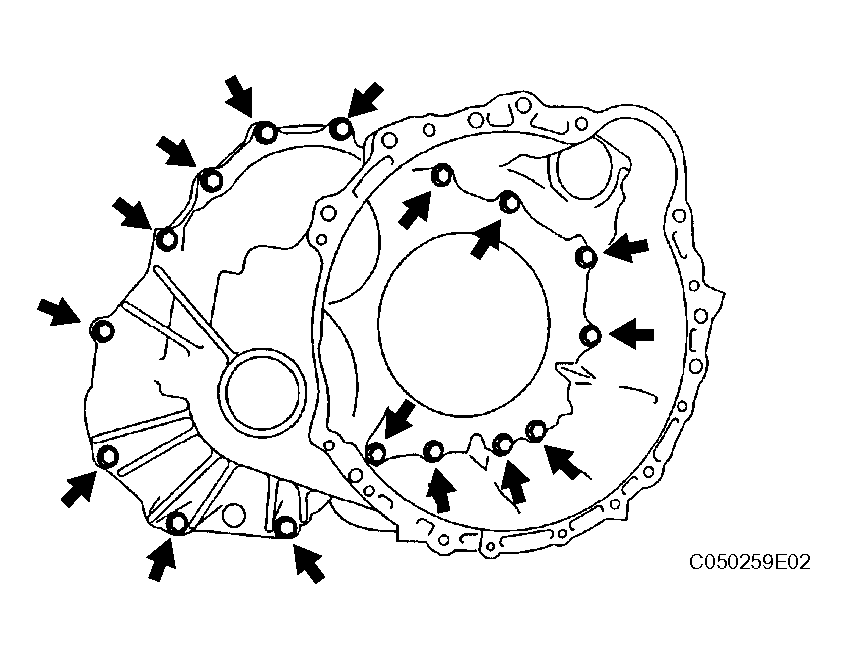

Remove the 16 bolts and the transaxle housing.

Fig 12: Removing Bolts And Transaxle Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

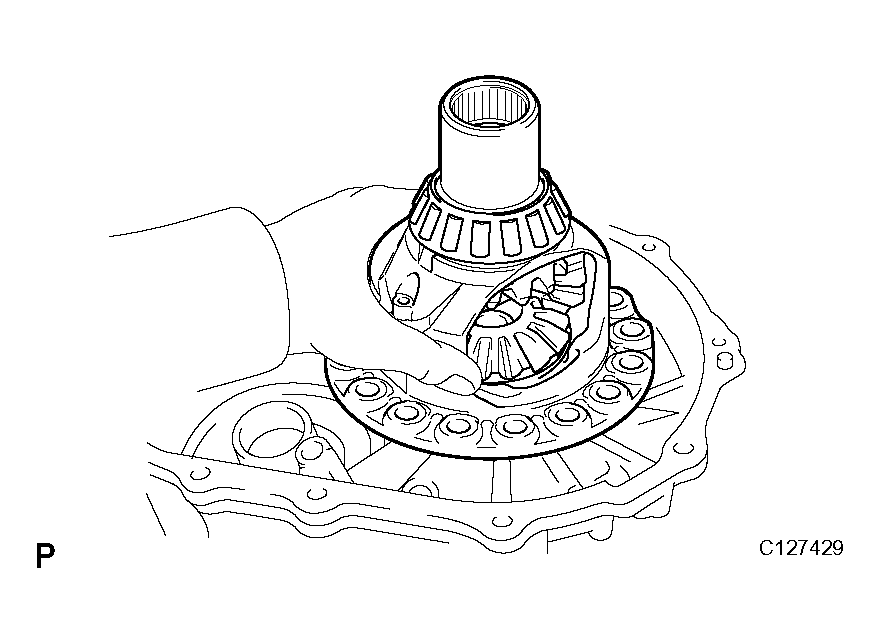

Remove the differential assembly.

Fig 13: Removing Differential Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FRONT DIFFERENTIAL RING GEAR

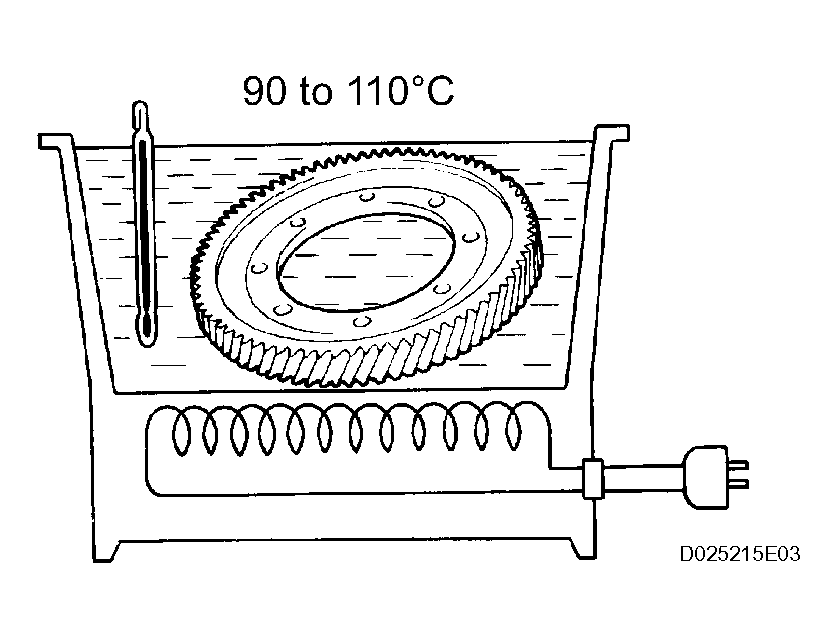

1. Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194.0 to 230.0°F).
  NOTE: Do not overheat the ring gear to 110°C (230.0°F) or more.
2. Clean the contract surface of the front differential case.

  Fig 14: Cleaning Contract Surface Of Front Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

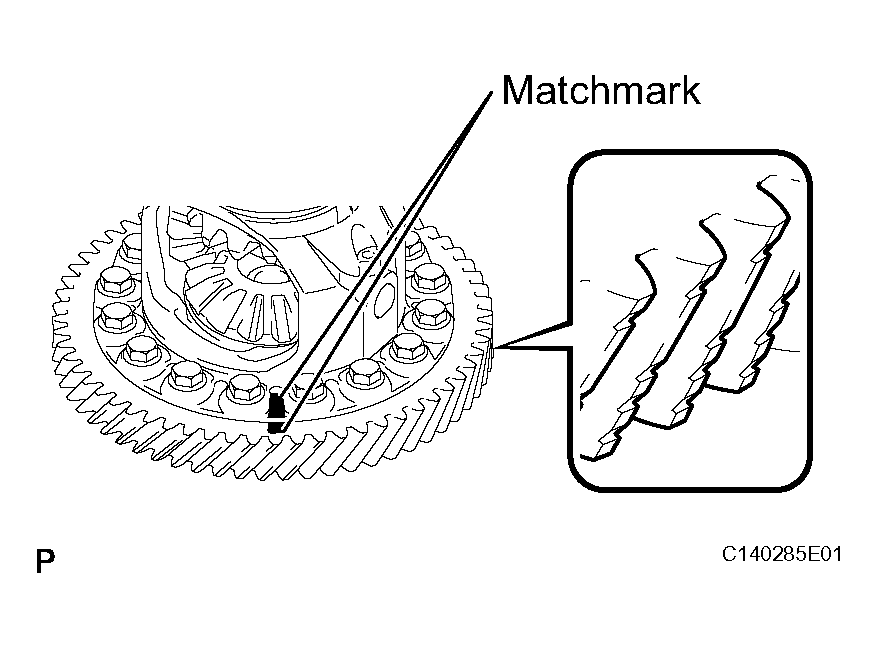

3. Align the matchmarks, and install the front differential ring gear case quickly.
  NOTE:
  - Check the position and number of the grooves on each end face of the differential ring gear.
  - Do not install the bolts while the ring gear is hot.

    Fig 15: Aligning Matchmarks
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

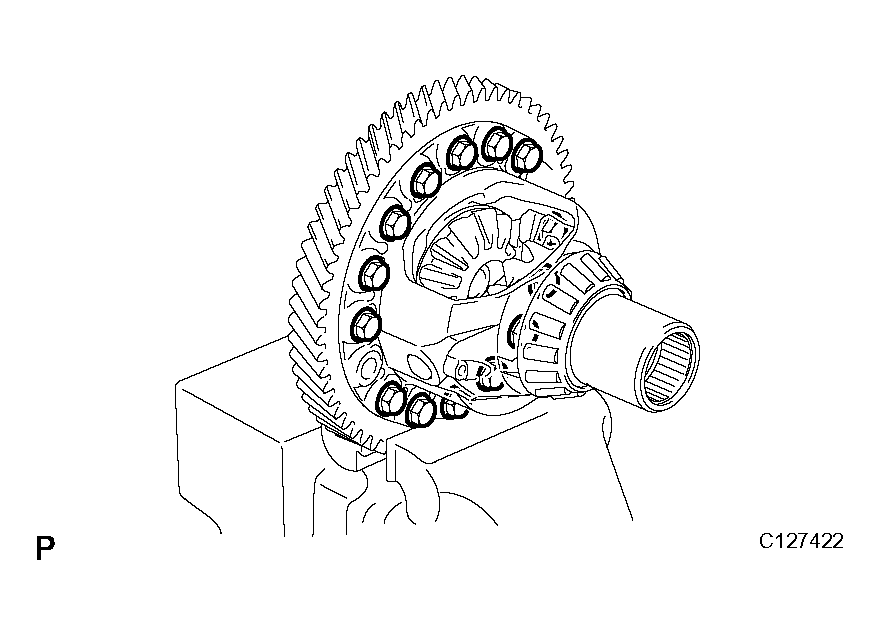

4. Tighten the 14 bolts.
  Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

  NOTE: Tighten the bolts a little at a time in diagonal order.

  Fig 16: Tightening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL
1. Coat the lip of a new oil seal with a small amount of MP grease.
2. Using SST and a hammer, tap in the oil seal.
  SST 09223-15020, 09950-70010 (09951-07100)

  Fig 17: Installing Differential Side Bearing Retainer Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSAXLE HOUSING OIL SEAL
1. Coat the lip of a new oil seal with a small amount of MP grease.
2. Using SST and a hammer, tap in the oil seal.
  SST 09710-30050, 09950-70010 (09951-07100)

  Fig 18: Taping Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
