Valve Body: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SHIFT SOLENOID VALVE SLT AND SL3
1. Remove the bolt, lock plate and shift solenoid valve SL3 and SLT from the valve body.

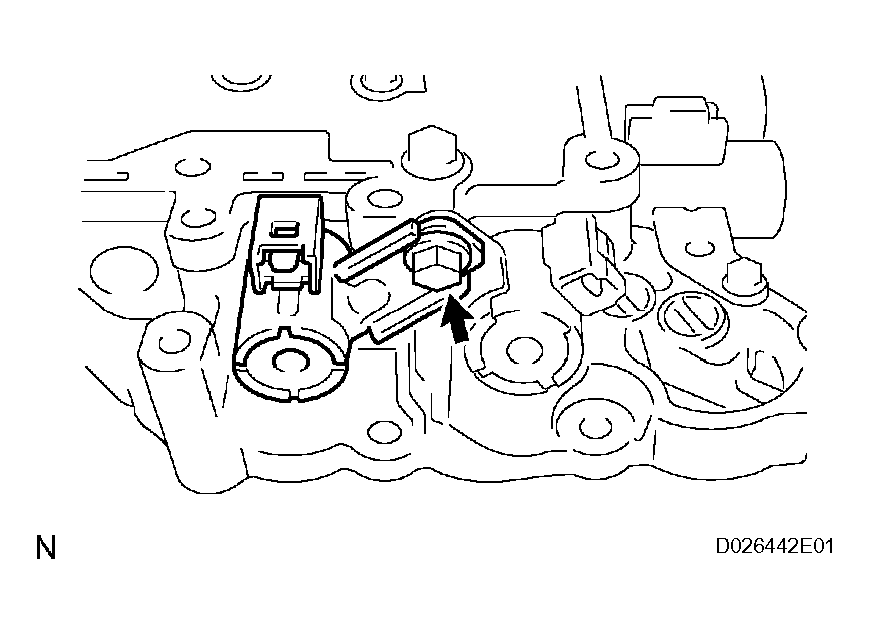

  Fig 1: Removing Shift Solenoid Valve SLT And SL3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S4
1. Remove the bolt and shift solenoid valve S4 from the valve body.

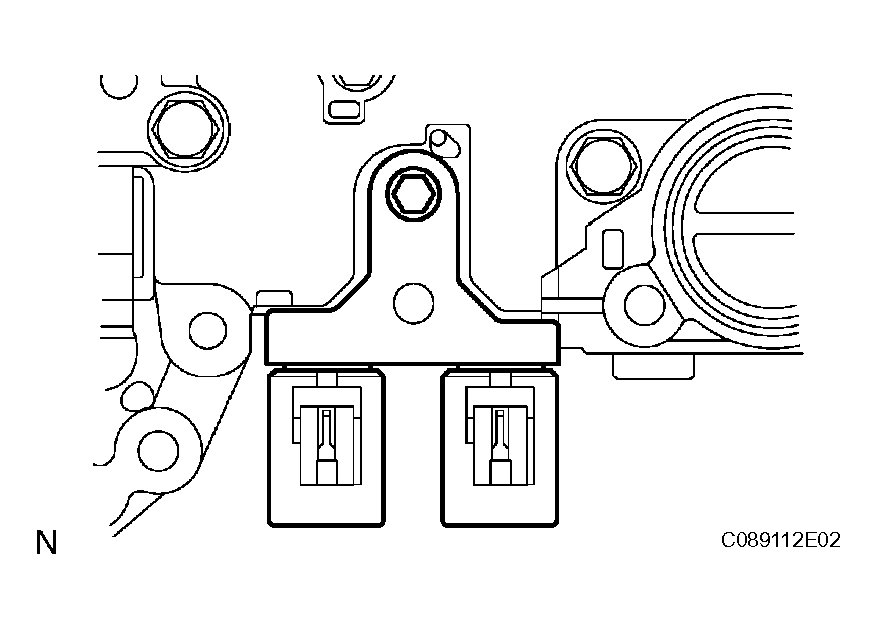

  Fig 2: Removing Bolt And Shift Solenoid Valve S4 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SR
1. Remove the shift solenoid valve SR from the valve body.

  Fig 3: Removing Shift Solenoid Valve SR From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE DSL
1. Remove the bolt and shift solenoid valve DSL from the valve body.

  Fig 4: Removing Bolt And Shift Solenoid Valve DSL From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL2
1. Remove the bolt, lock plate and shift solenoid valve SL2 from the valve body.

  Fig 5: Removing Bolt, Lock Plate And Shift Solenoid Valve SL2 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the bolt, lock plate and shift solenoid valve SL1 from the valve body.

  Fig 6: Removing Bolt, Lock Plate And Shift Solenoid Valve SL1 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
