Transmission Control Cable Assembly: Replacement

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
1. Remove the console box (see ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE BATTERY
1. Loosen the nut and remove the bolt and battery clamp.
2. Remove the battery and insulator.
3. Remove the battery tray.
4. Remove the 4 bolts and battery carrier.
5. Remove the 2 bolts and battery bracket reinforcement.
REMOVE AIR CLEANER ASSEMBLY
1. Disconnect the mass air flow meter connector.
2. Remove the 2 clamps of the engine wire.

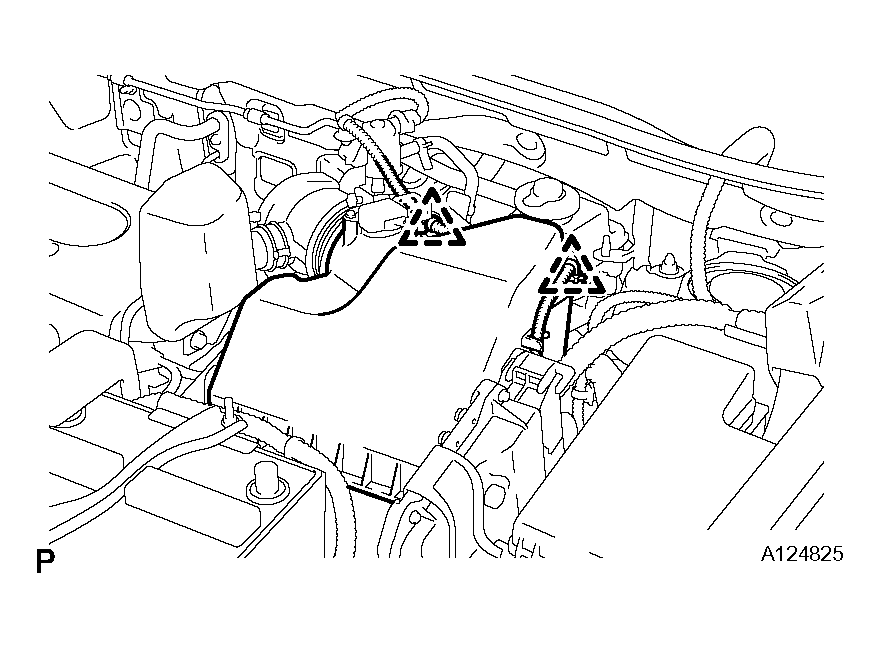

  Fig 1: Removing Clamps Of Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts from the air cleaner case.
4. Disconnect the air cleaner case from the No. 1 air cleaner inlet.

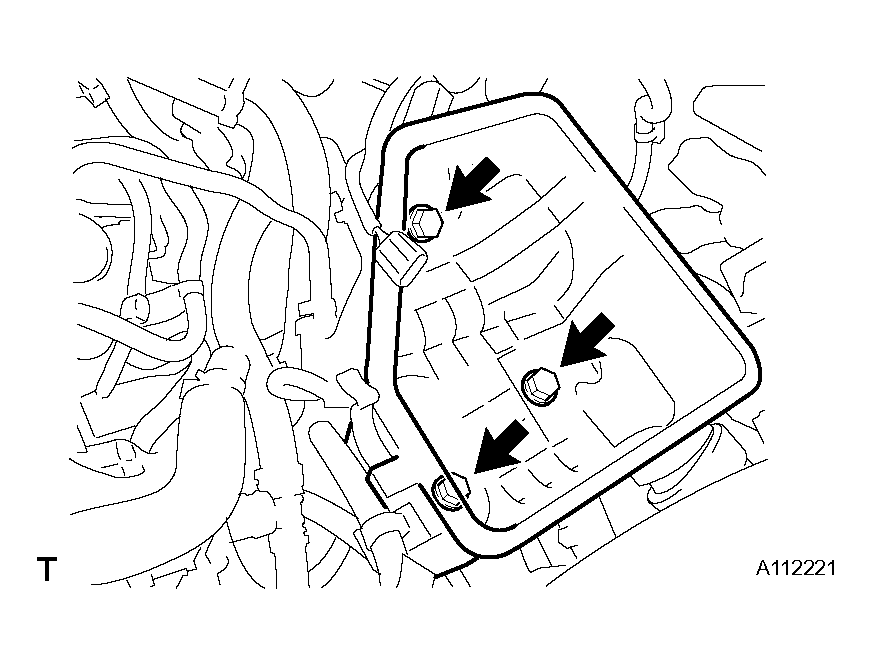

  Fig 2: Removing Bolts From Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSAXLE CONTROL CABLE ASSEMBLY
1. Remove the nut and disconnect the control cable from the control shaft lever.

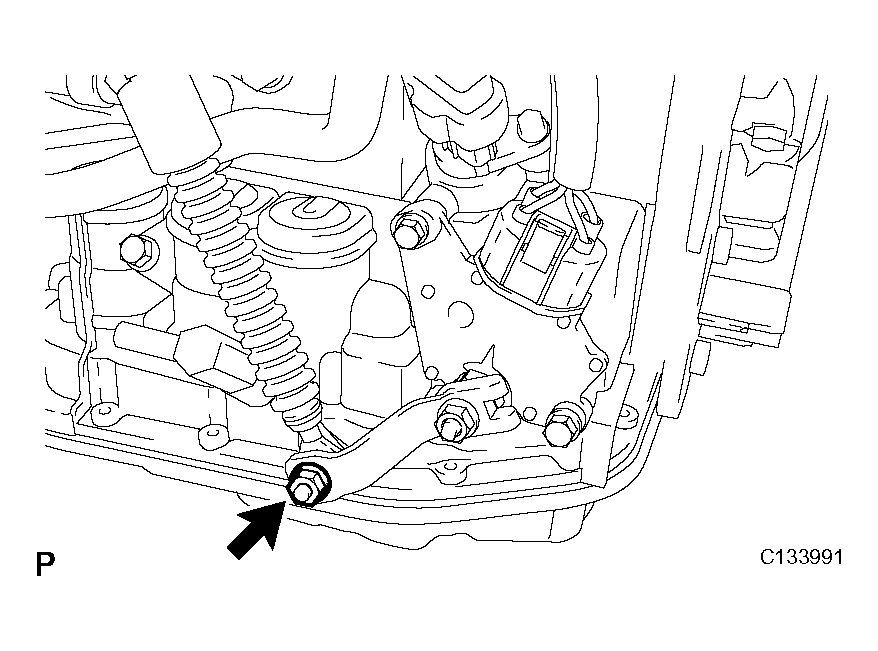

  Fig 3: Removing Nut And Disconnect Control Cable From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

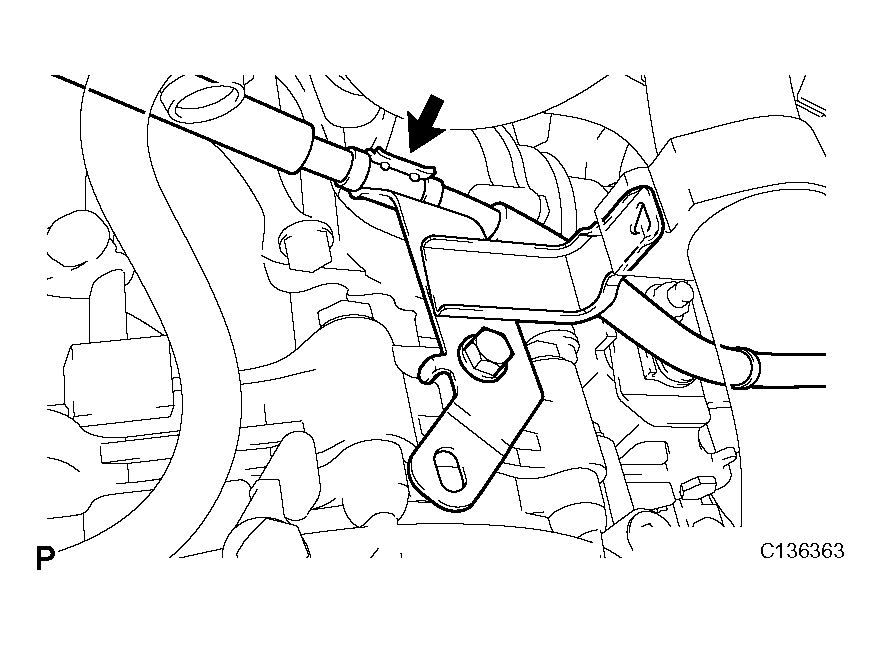

2. Remove the clip and disconnect the control cable from the control cable bracket.

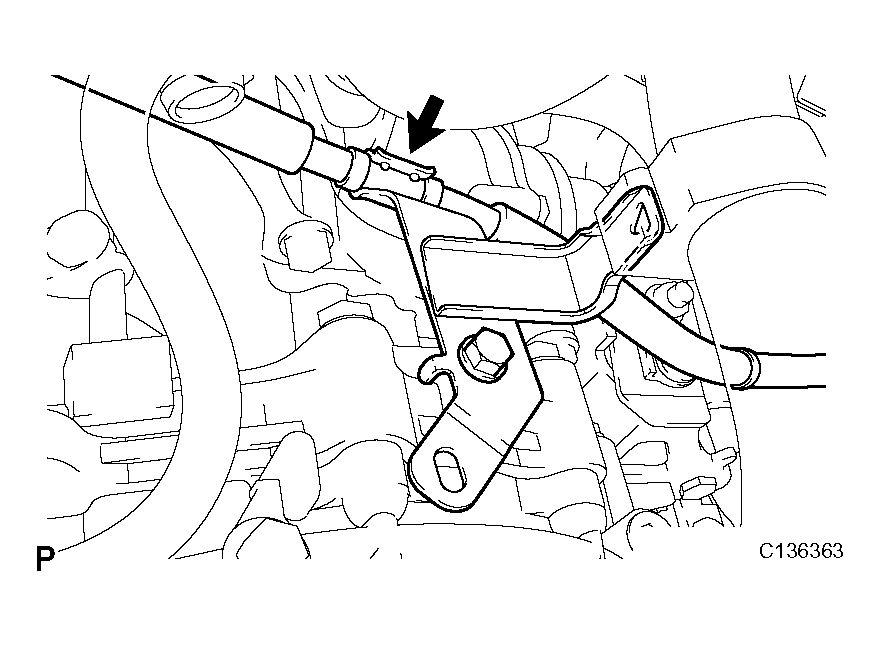

  Fig 4: Removing Clip And Disconnect Control Cable From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the control cable from the control cable support.

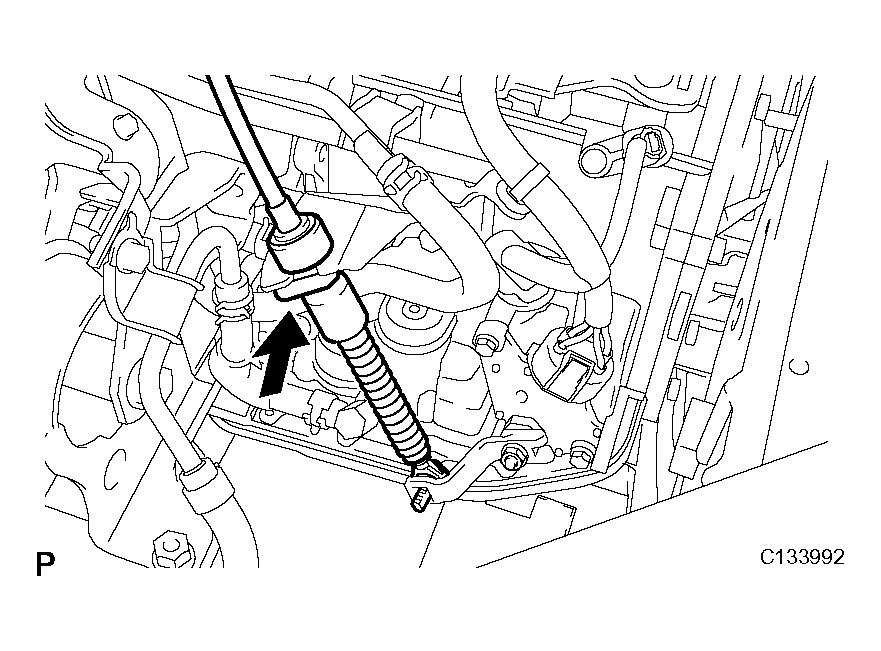

  Fig 5: Disconnecting Control Cable From Control Cable Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

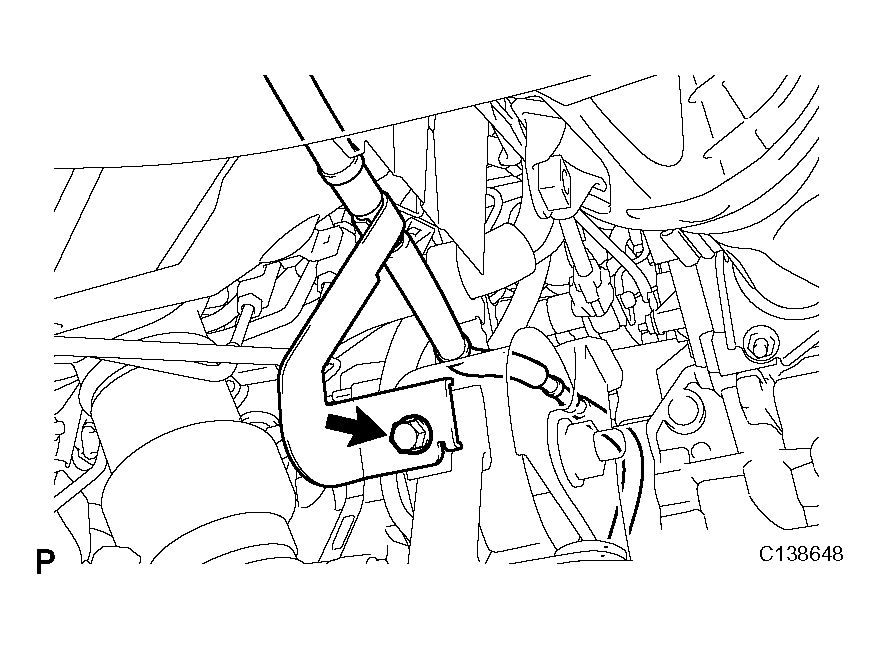

4. Remove the bolt and disconnect the clamp of the control cable.

  Fig 6: Removing Bolt And Disconnect Clamp Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the control cable from the shift lever.

  Fig 7: Disconnecting Control Cable From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Turn the nut and disconnect the control cable from the shift lever retainer.

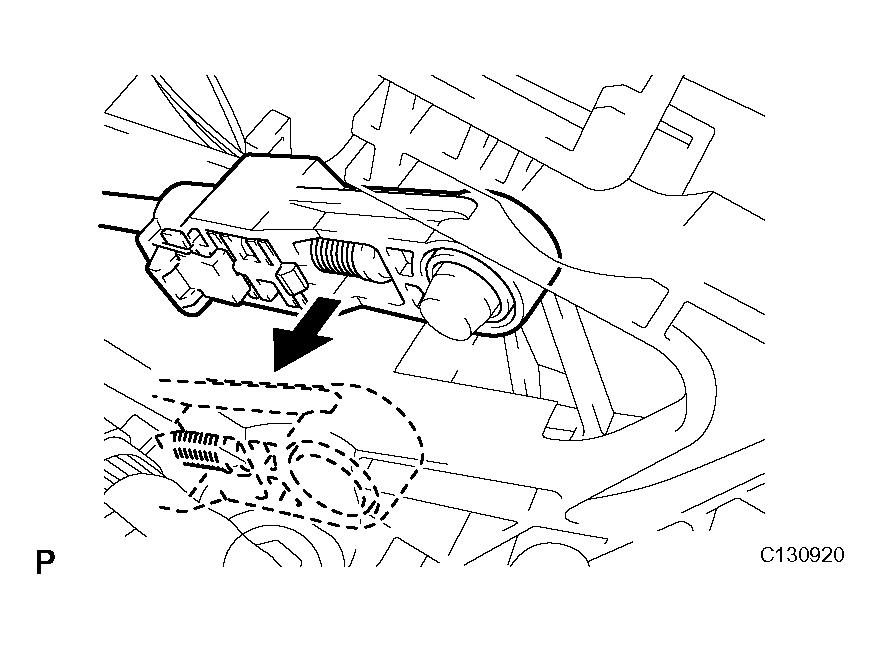

  Fig 8: Turning Nut And Disconnect Control Cable From Shift Lever Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts and control cable.

  Fig 9: Removing Control Cable Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE CONTROL CABLE ASSEMBLY
1. Install the control cable with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 10: Installing Control Cable With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the nut of the control cable and push in the lock.

  Fig 11: Turning Nut Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the control cable onto the shift lever retainer.

  Fig 12: Installing Control Cable Onto Shift Lever Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Install the cable with the protruding portion of the cable outer facing upward.
  - After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.

    Fig 13: Checking Lock Of Cable Outer Is Protruding Beyond Portion A-A
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the control cable to the shift lever.
  NOTE: Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the driver side of the vehicle.

  Fig 14: Connecting Control Cable To Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Fix the control cable onto the control cable bracket with the clip.

  Fig 15: Fixing Control Cable Onto Control Cable Bracket With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the control cable onto the control shaft lever with the nut.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  Fig 16: Connecting Control Cable Onto Control Shaft Lever With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the clamp of the control cable with the bolt.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 17: Connecting Clamp Of Control Cable With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the control cable to the cable support.
INSTALL AIR CLEANER ASSEMBLY
1. Connect the air cleaner case to the No. 1 air cleaner inlet.

  Fig 18: Connecting Air Cleaner Case To No. 1 Air Cleaner Inlet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the air cleaner case with the 3 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

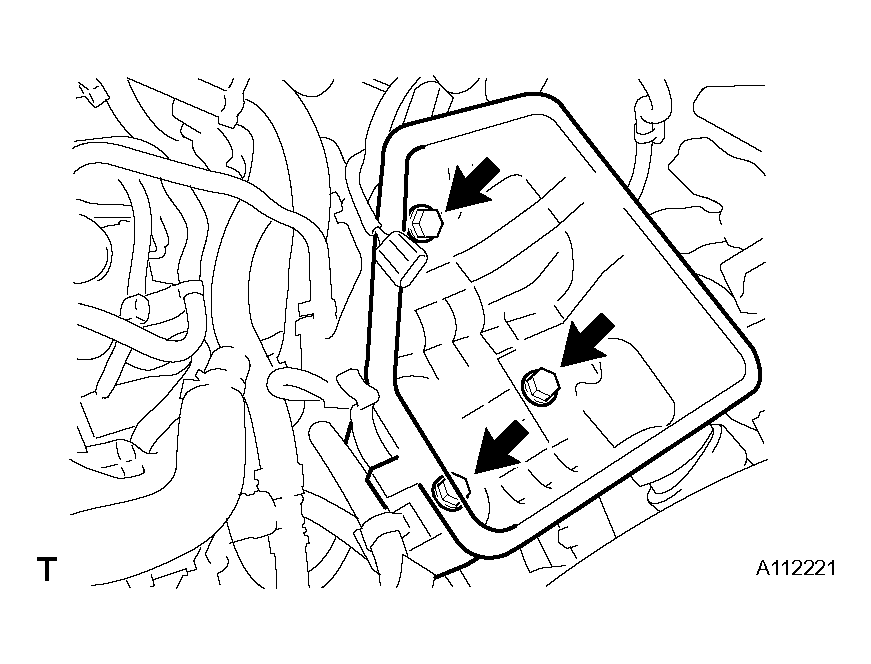

  Fig 19: Installing Air Cleaner Case With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 clamps of the engine wire.
4. Connect the mass air flow meter connector.
INSTALL BATTERY
1. Install the battery bracket reinforcement with the 2 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Install the battery carrier with the 4 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Install the battery tray.
4. Connect the 2 clamps of the engine wire.
5. Install the battery and insulator with the battery clamp.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf) for bolt

  5.0 N*m (51 kgf*cm, 44 in.*lbf) for nut

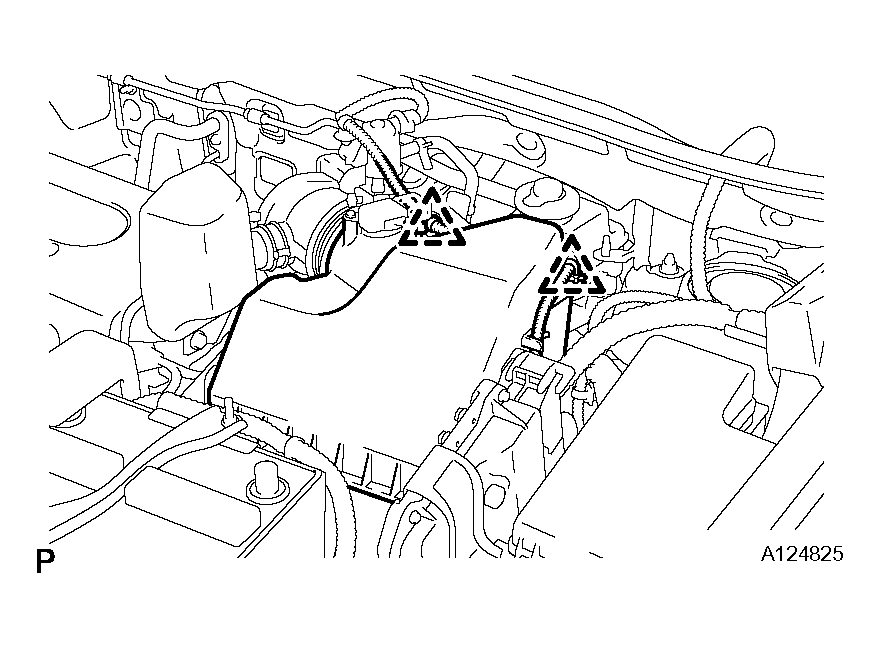

  Fig 20: Connecting Clamps Of Engine Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION
1. When shifting the lever from P to the R position with the ignition switch ON and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into position.
2. Start the engine and make sure that the vehicle moves forward when shifting the lever from N to the D position and moves rearward when shifting the lever to the R position.
  If the operation cannot be performed as specified, inspect the park/neutral position switch and check the shift lever installation condition.
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the rear console box (see ).
