Floor Shift Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SHIFT LOCK RELEASE BUTTON
1. Install the spring and button and attach the claws to the position indicator light housing.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

Fig 1: Installing Indicator Light Wire Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

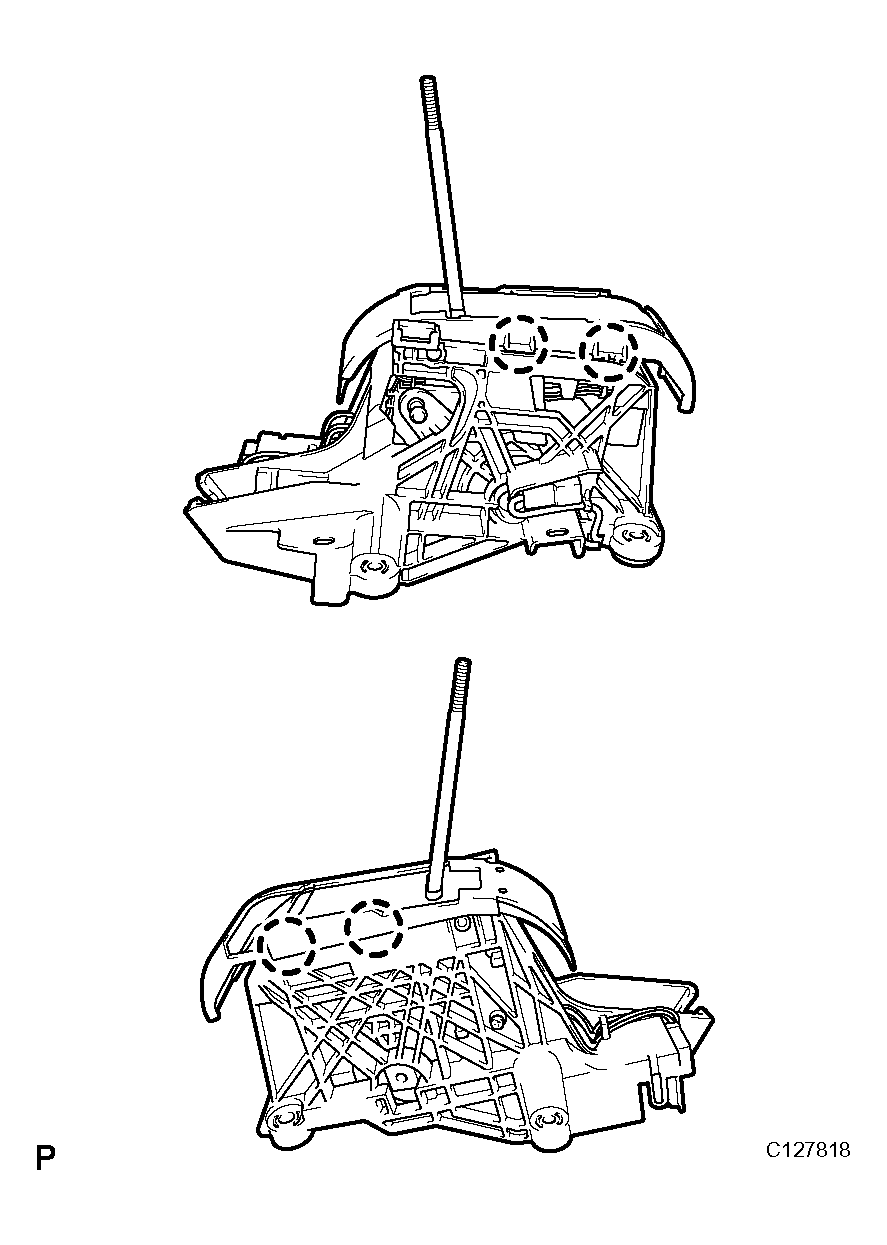

INSTALL POSITION INDICATOR LIGHT HOUSING
1. Install the indicator light housing and attach the 2 claws to the shift position indicator housing.

  Fig 2: Installing Position Indicator Light Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER POSITION INDICATOR HOUSING
1. Install the position indicator slide cover with slide No. 2 cover to the indicator housing.
2. Install the housing and attach the 4 claws to the floor shift assembly.

  Fig 3: Installing Lower Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
