INSTALL FLOOR SHIFT ASSEMBLY
1. Connect the 2 connectors and attach the clamp.
2. Install the floor shift with the 4 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

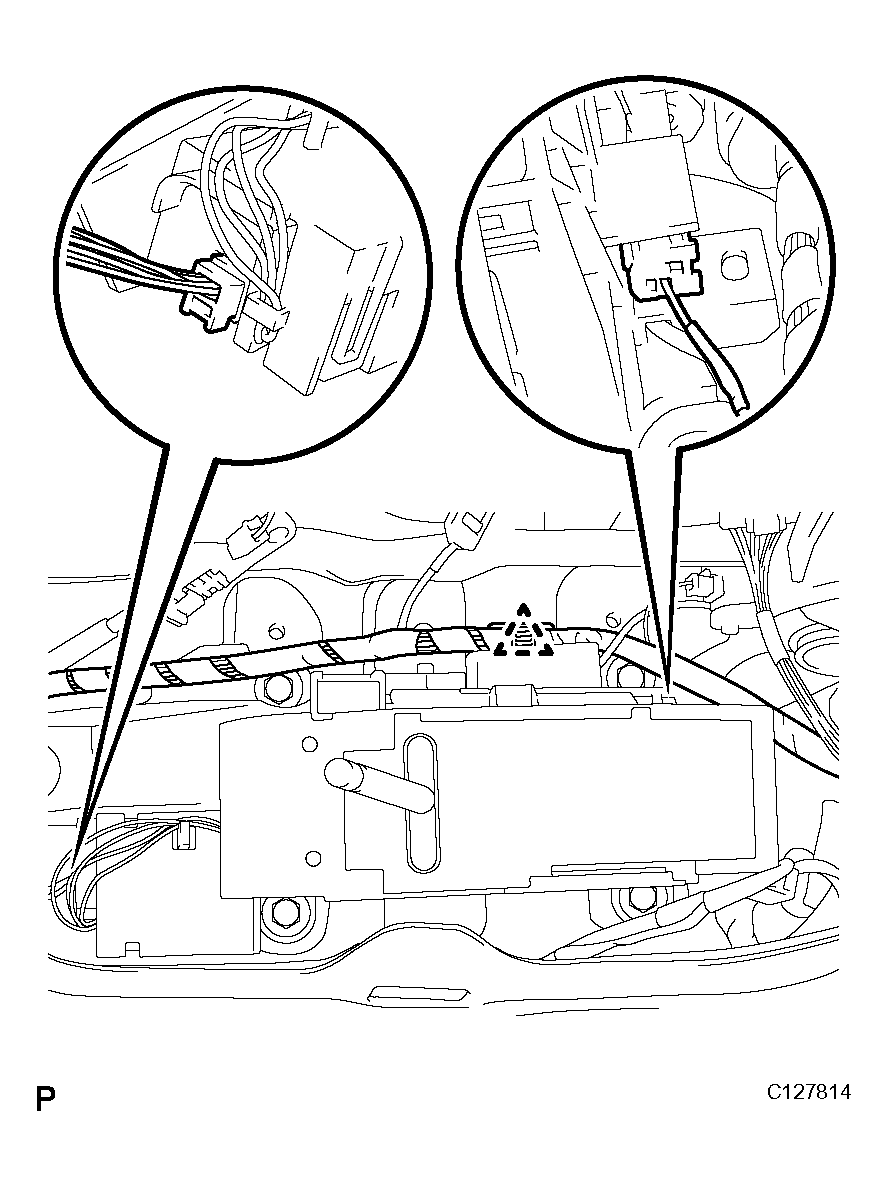

  Fig 1: Installing Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn the nut of the control cable and push in the lock.

  Fig 2: Turning Nut Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable onto the shift lever retainer.
  NOTE:
  - Install the cable with the protruding portion of the cable outer facing upward.

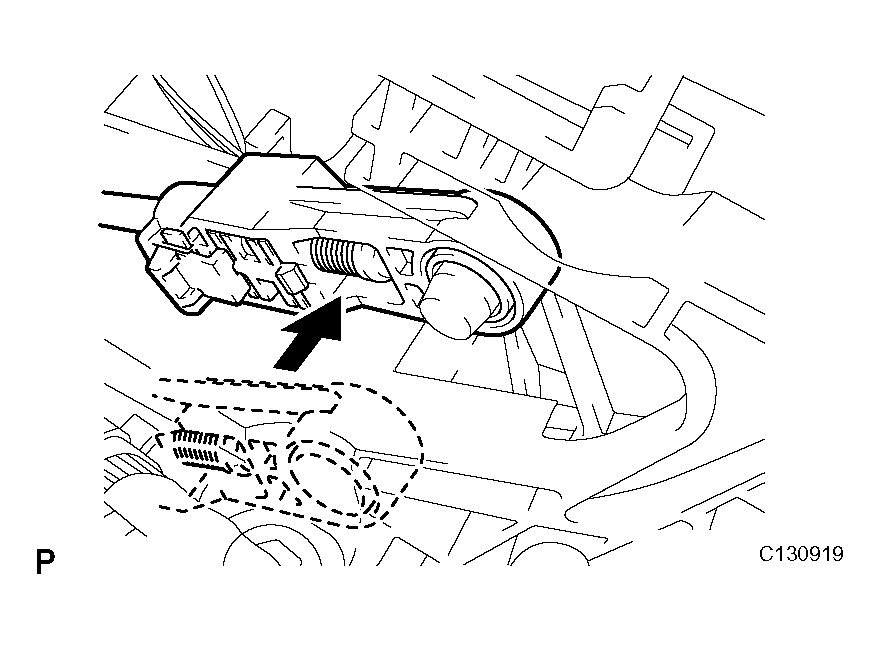

    Fig 3: Installing Control Cable Onto Shift Lever Retainer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.

    Fig 4: Checking Lock Of Cable Outer Is Protruding Beyond Portion A-A
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the control cable to the shift lever.
  NOTE: Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the driver side of the vehicle.

  Fig 5: Connecting Control Cable To Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the rear console box (see ).
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
