Differential Case: Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT BACKLASH
1. Using a dial indicator, inspect the backlash of the side gear.
  Standard backlash: 0.05 to 0.20 mm (0.0020 to 0.0079 in.)

  Standard thrust washer thickness: 1.625 mm (0.0640 in.)

  1.725 mm (0.0679 in.)

  1.825 mm (0.0719 in.)

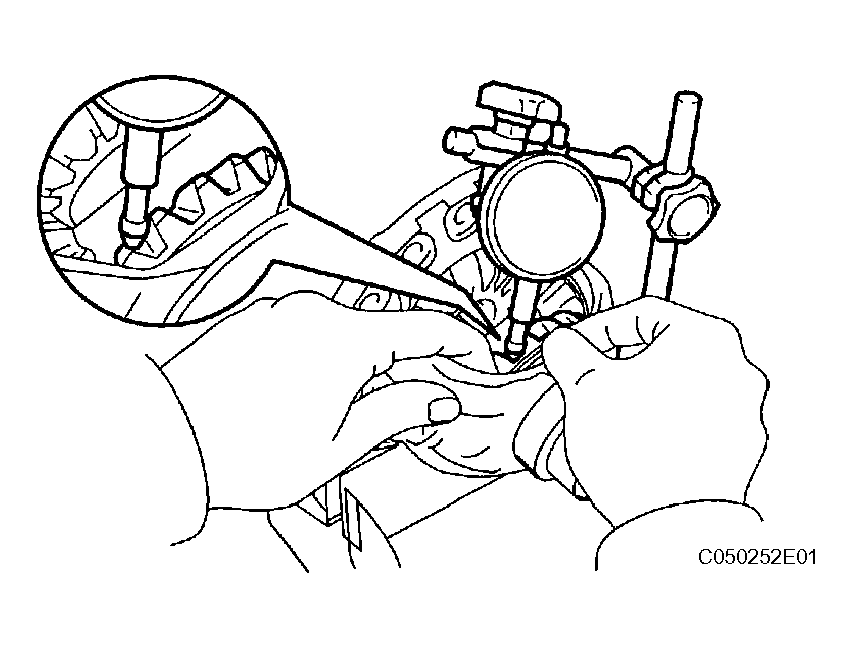

  Fig 1: Inspecting Backlash Of Side Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
