Valve Body Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE NO. 1 ENGINE UNDER COVER
DRAIN AUTOMATIC TRANSAXLE FLUID
1. Remove the drain plug and gasket, and drain ATF.
2. Install a new gasket and the drain plug.
  Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
1. Remove the 18 bolts, oil pan and gasket.
  NOTE: Some fluid will remain in the oil pan. Carefully remove the oil pan sub-assembly.
2. Remove the 3 magnets from the oil pan.

  Fig 1: Identifying Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Examine particles in the pan.
  1. Use the removed magnets to collect any steel chips. Look carefully at the chips and particles in the pan and on the magnet to anticipate what type of wear you will find in the transaxle.
    Steel (magnetic): bearing, gear and plate wear Brass (non-magnetic): bush wear

    Fig 2: Checking Chips And Particles In Pan
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

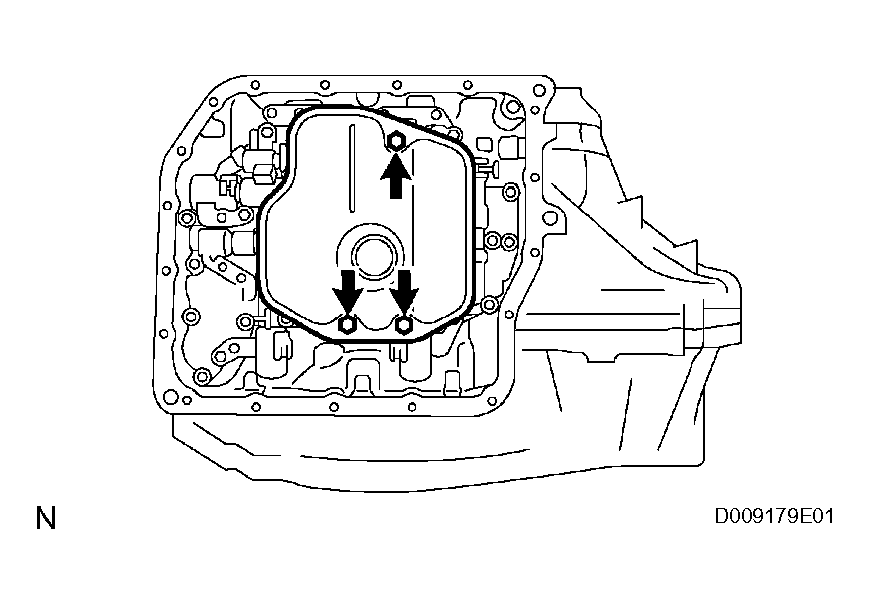

REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 3 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out with the oil strainer.

  Fig 3: Removing Bolts And Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 4: Removing O-Ring From Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

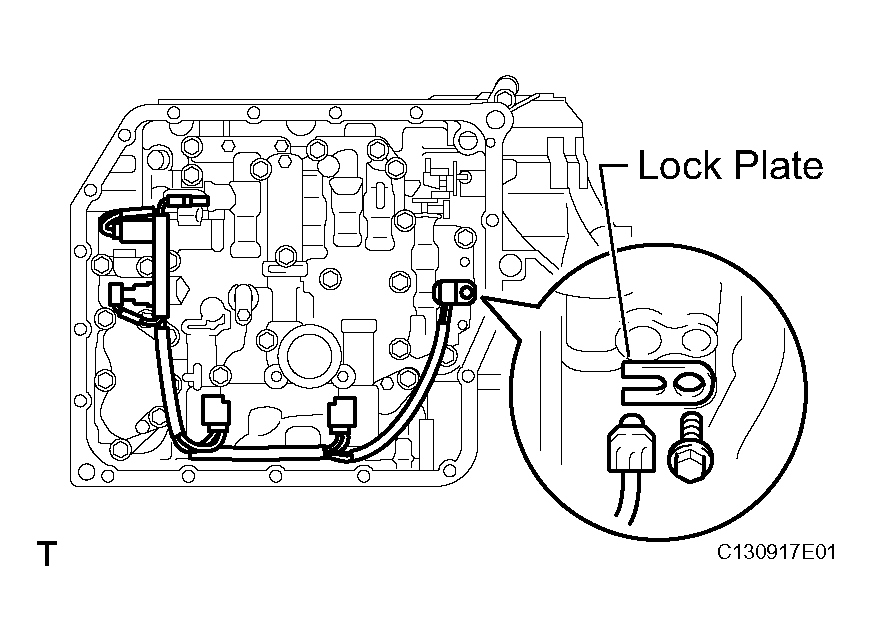

DISCONNECT TRANSMISSION WIRE
1. Disconnect the 5 connectors.
2. Remove the bolt and lock plate, and remove the ATF temperature sensor.

  Fig 5: Removing ATF Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

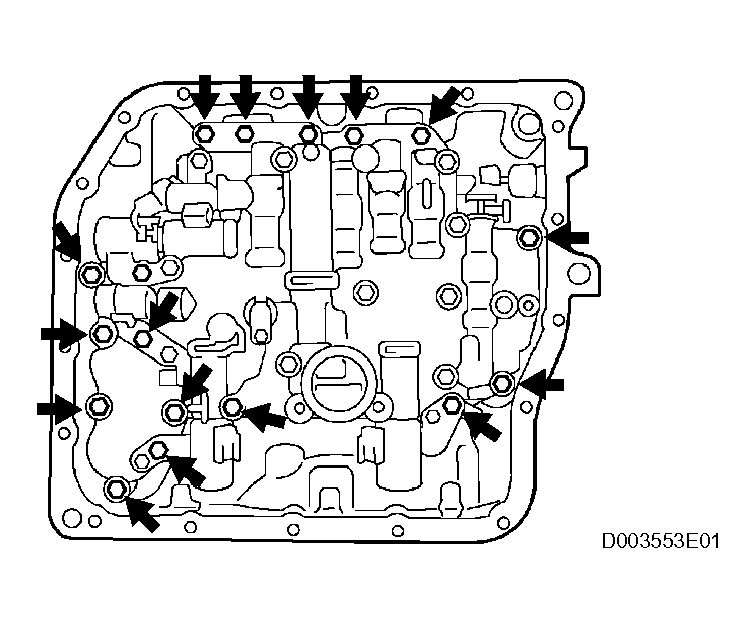

REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Support the valve body and remove the 17 bolts and valve body.
  NOTE: Be careful not to drop the check valve body, spring and accumulator piston.

  Fig 6: Removing Bolts And Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

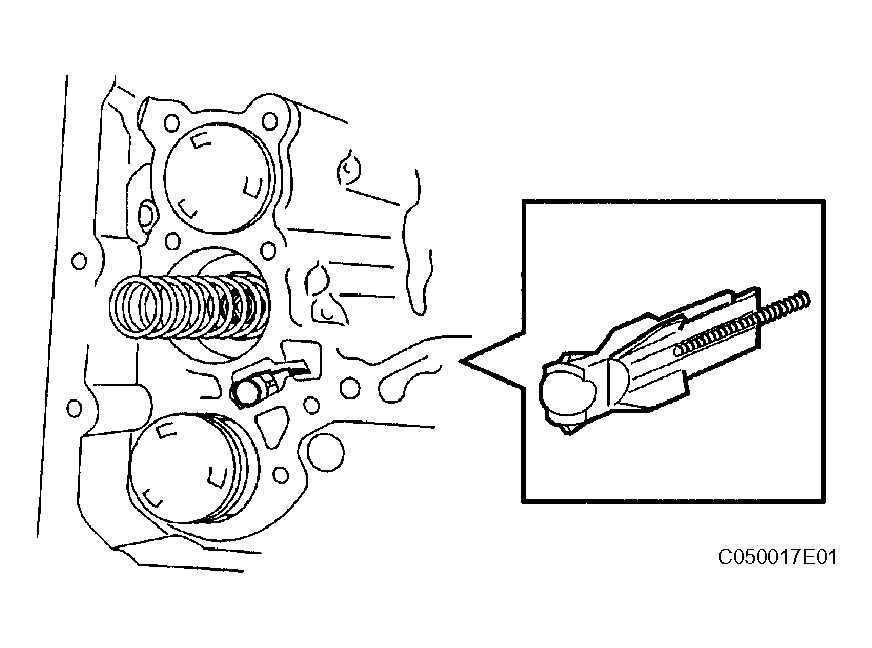

2. Remove the check ball body and spring.

  Fig 7: Removing Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 bolts, 4 plates and 5 shift solenoid valves.

  Fig 8: Removing Bolts, Plates And Shift Solenoid Valves
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
