Transmission Wire: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE NO. 1 ENGINE UNDER COVER
DRAIN AUTOMATIC TRANSAXLE FLUID
1. Remove the drain plug and gasket, and drain ATF.
2. Install a new gasket and the drain plug.
  Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
1. Remove the 18 bolts, oil pan and gasket.
  NOTE: Some fluid will remain in the oil pan. Carefully remove the oil pan.
2. Remove the 3 magnets from the oil pan.

  Fig 1: Identifying Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Examine particles in the pan.
  1. Use the removed magnets to collect any steel chips. Look carefully at the chips and particles in the pan and on the magnet to anticipate what type of wear you will find in the transaxle.
    Steel (magnetic): bearing, gear and plate wear Brass (non-magnetic): bush wear
REMOVE TRANSMISSION WIRE
1. Disconnect the 5 shift solenoid valve connectors.

  Fig 2: Checking Chips And Particles In Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, lock plate and ATF temperature sensor.

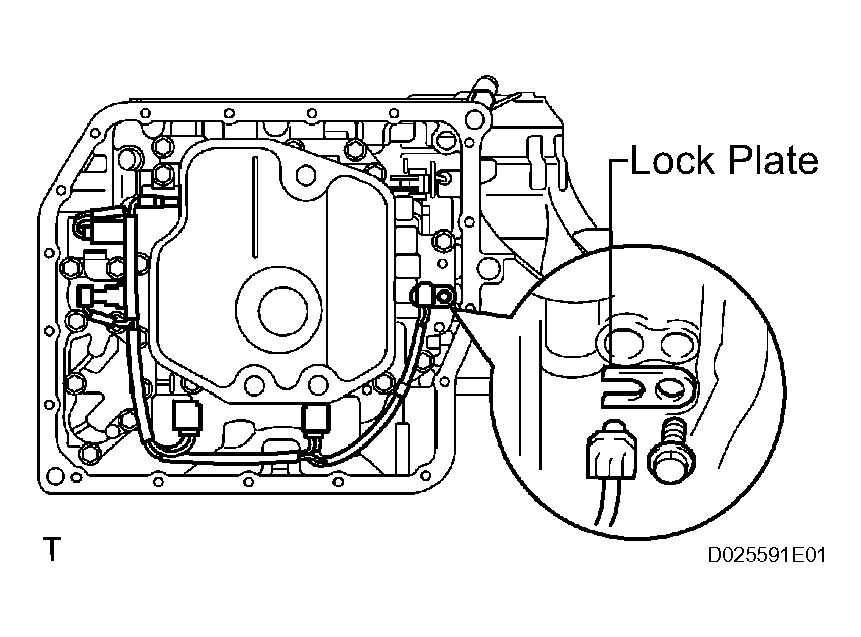

  Fig 3: Removing Bolt, Lock Plate And ATF Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the transmission wire connector.
4. Remove the bolt and transmission wire.

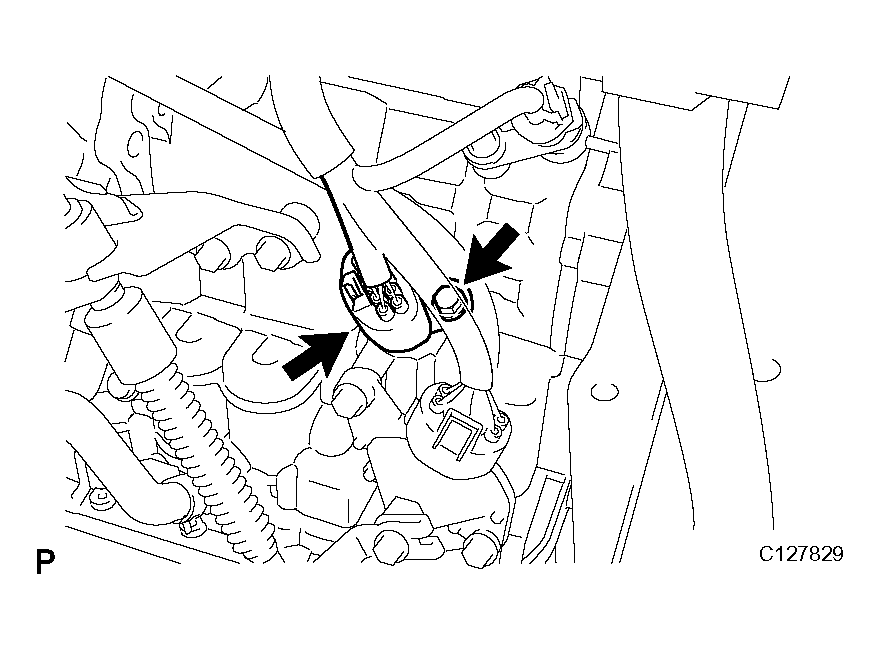

  Fig 4: Removing Bolt And Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the O-ring from the transmission wire.

  Fig 5: Removing O-Ring From Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
