Transmission Oil Cooler: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION OIL COOLER
    1. Install the oil cooler to the bracket with the 3 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

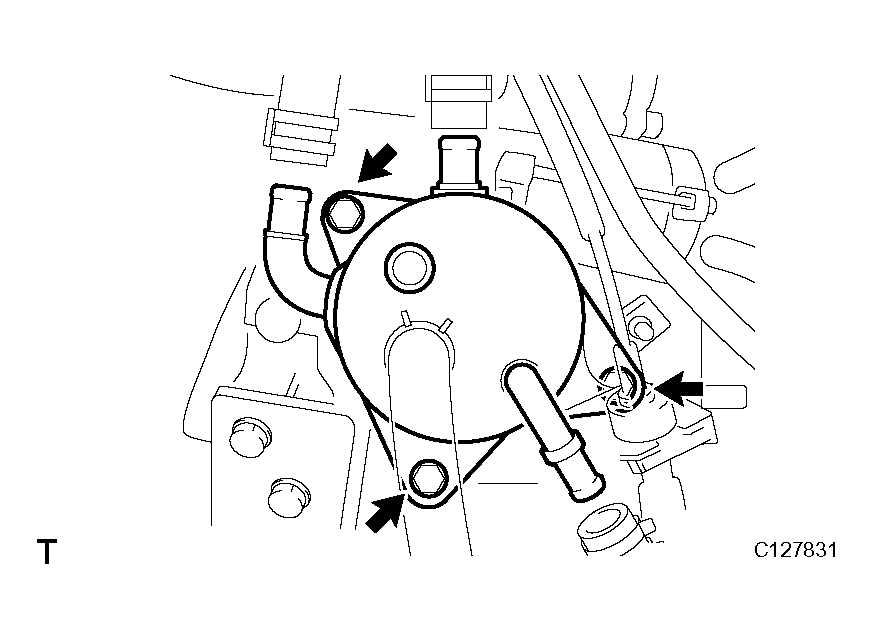

      Fig 1: Installing Oil Cooler To Bracket With Bolts
      G04488249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. *1: Connect the No. 1 oil cooler outlet hose to the transmission.
    3. *2: Connect the No. 1 oil cooler inlet hose to the transmission.
    4. *3: Connect the No. 3 water by-pass hose to the transmission.
    5. *4: Connect the No. 4 water by-pass hose to the transmission.
  2. ADD AUTOMATIC TRANSAXLE FLUID
  3. INSPECT AUTOMATIC TRANSAXLE FLUID
    1. Inspect the automatic transaxle fluid (see INSPECTION PROCEDURE  ).

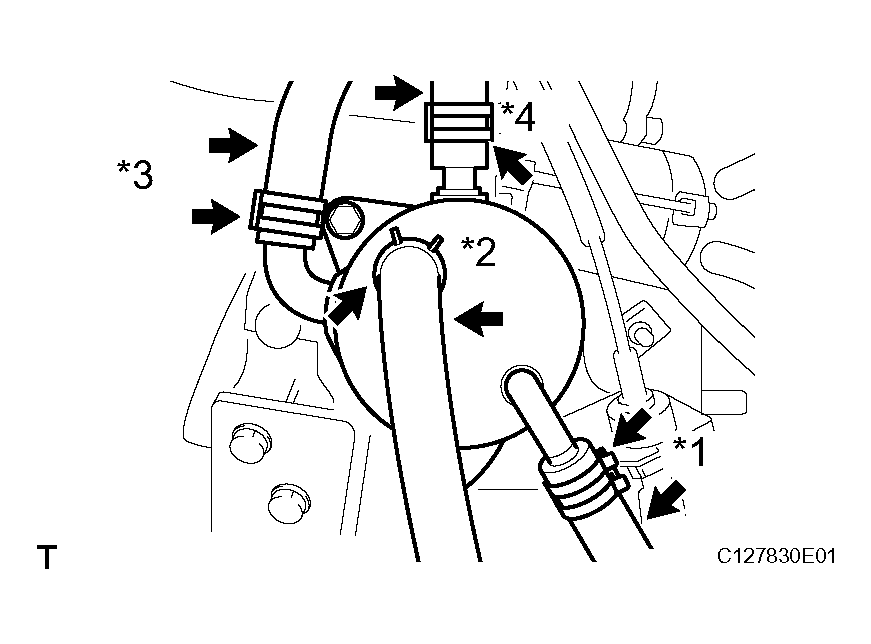

      Fig 2: Installing Transmission Oil Cooler Hoses
      G04488250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. ADD COOLANT
    1. Add the coolant (see COOLANT ).
