Floor Shift Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LOWER POSITION INDICATOR HOUSING
1. Detach the 4 claws and remove the housing.
2. Remove the position indicator slide cover with slide No. 2 cover.

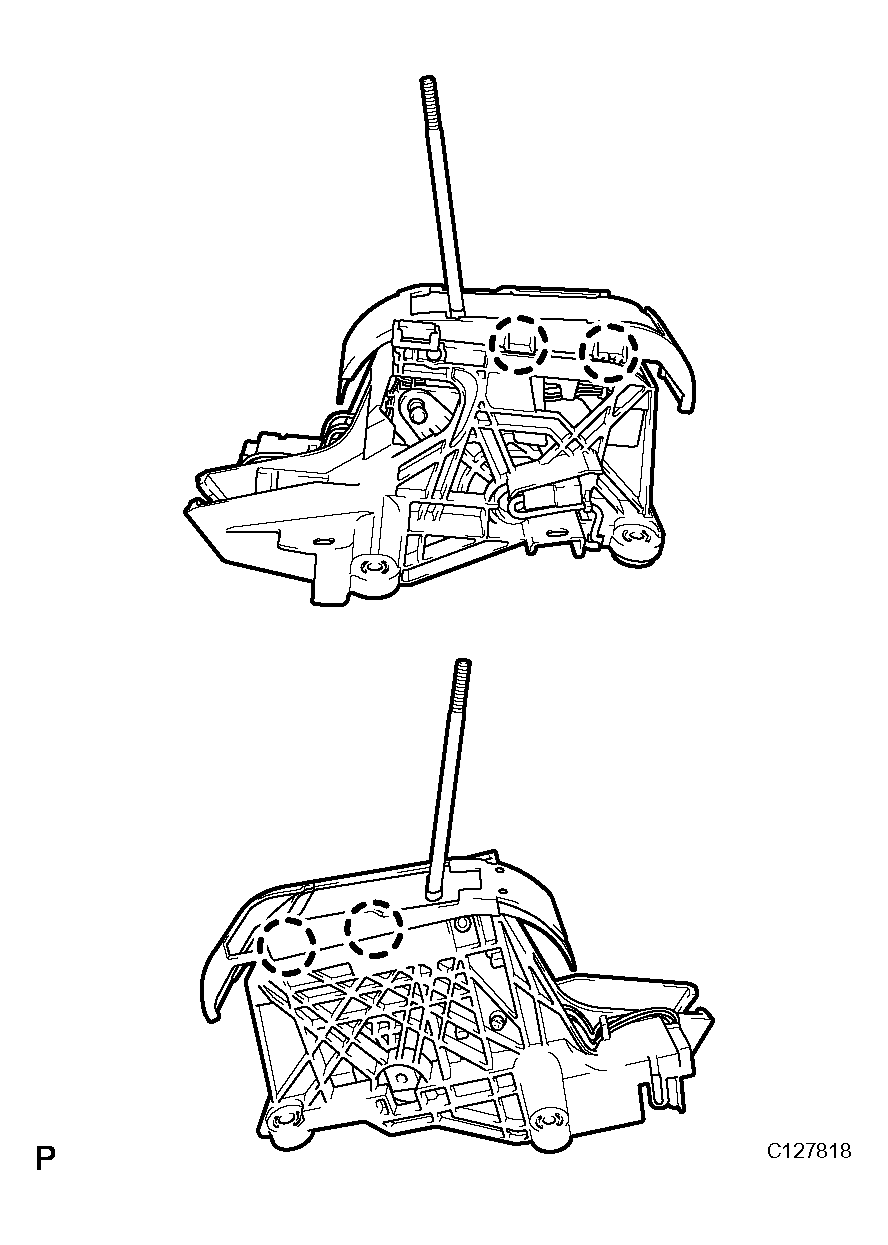

  Fig 1: Removing Slide Cover With Slide No. 2 Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT HOUSING
1. Detach the 2 claws and remove the indicator light housing from the floor shift position indicator housing.

  Fig 2: Removing Indicator Light Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
REMOVE SHIFT LOCK RELEASE BUTTON
1. Detach the 2 claws and remove the button and spring from the position indicator light housing.

  Fig 3: Removing Button And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
