Floor Shift Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

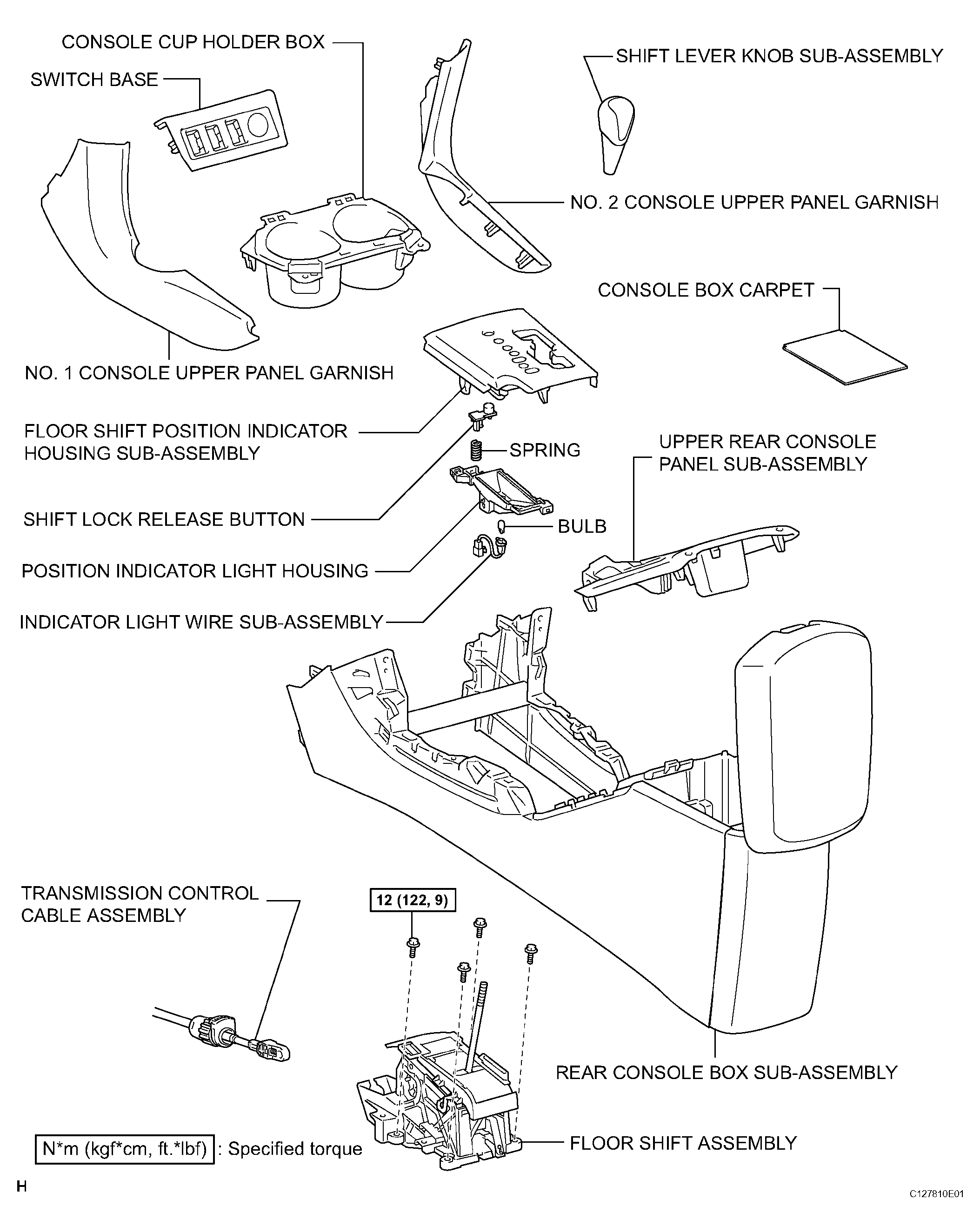

Fig 1: Floor Shift Assembly Replacement Components & Torque Specification (1 Of 2)
G04488271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

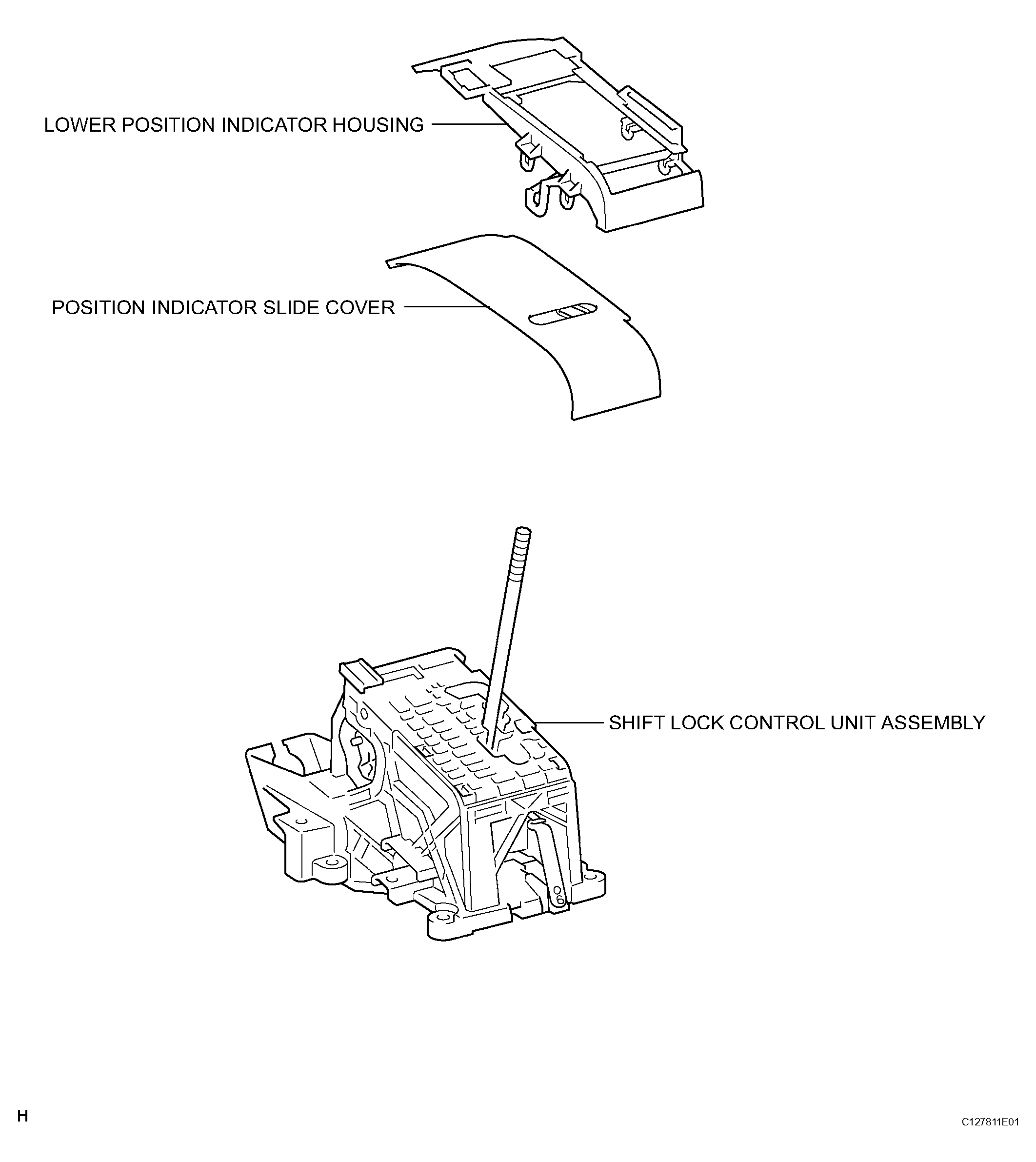

Fig 2: Floor Shift Assembly Replacement Components & Torque Specification (2 Of 2)
G04488272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
